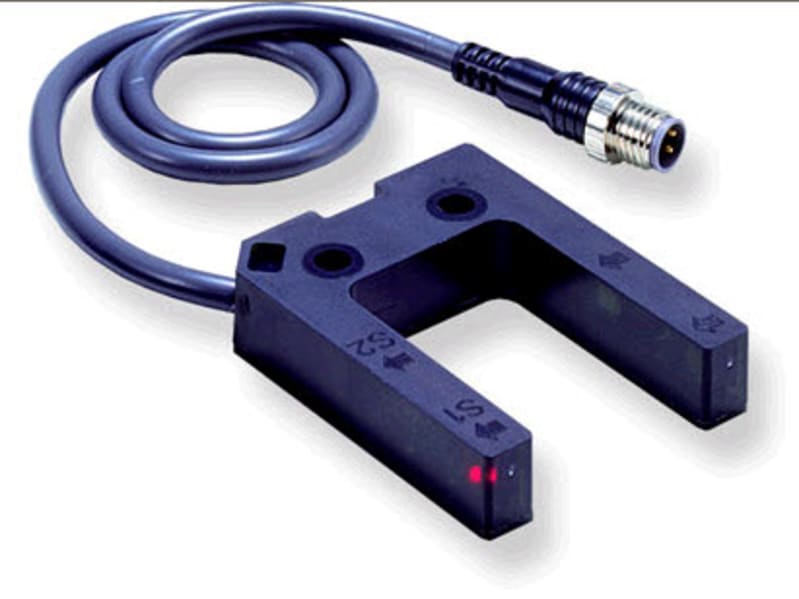

Omron E3Z-G81-M3J Fork Photoelectric Sensor 25 mm PNP M8 Pigtail
Pricing
Request a quote
We reply within 24 hours
Product Description
Omron E3Z-G81-M3J is a single-beam fork photoelectric sensor with 25 mm fork width and 35 mm fork depth, giving through-beam detection down to 1.5 mm objects. It has a PNP output rated 100 mA and terminates in a DC 3-wire M8 pigtail plug. Light/dark switching is manually adjustable.
Technical Specifications
- Manufacturer part number (MPN)
- E3Z-G81-M3J
- EAN / GTIN
- 4536854740671
- Sales unit
- pcs
- Connection
- M8 plug
- Output type
- PNP
- Min. object size
- 1.5 mm
- Fork depth
- 35 mm
- Fork width
- 25 mm
- Rated switching distance
- 25 mm
- Max. switching distance
- 25 mm
- Max. output current
- 100 mA
- With time function
- No
- With reflector
- No
- Analogue output 0 V ... 10 V
- No
- Analogue output 0 mA ... 20 mA
- No
- Analogue output 4 mA ... 20 mA
- No
- Analogue output -10 V ... +10 V
- No
- With other analogue output
- No
- Setting procedure
- Manual adjustment
- With communication interface analogue
- No
- With communication interface AS-Interface
- No
- With communication interface CANOpen
- No
- With communication interface DeviceNet
- No
- With communication interface Ethernet
- No
- With communication interface INTERBUS
- No
- With communication interface PROFIBUS
- No
- With communication interface RS-232
- No
- With communication interface RS-422
- No
- With communication interface RS-485
- No
- With communication interface SSD
- No
- With communication interface SSI
- No
- Number of semiconductor outputs with signalling function
- 1
- Type of electric connection
- Cable with connector
- Type of switching output
- PNP
- Type of switch function
- Programmable/configurable
- Operation agent-safety class
- Safety class 0
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Width sensor
- 11 mm
- Height of sensor
- 40 mm
- Length of sensor
- 50 mm
- Sensing mode
- Light-/dark switching
- Material of optical surface
- Plastic
- Housing material
- Plastic
- Max. output current at protected output
- 100 mA
- Response time
- 1 ms
- Switching frequency
- 500 Hz
- Type of safety according to IEC 61496-1
- 1
- Voltage type
- DC
- With monitoring function downstream switching devices
- Yes
- Pre failure notice
- No
- Laser protection class
- None
- Wavelength of the sensor
- 940 nm
- Type of light
- Infrared light
- AWG-number
- 24
- With restart blockage
- No
- Degree of protection (IP)
- IP64
- Suitable for safety functions
- No
- Ambient temperature
- -25–55 °C
- Rated control supply voltage DC
- 10.8–26.4 V
- Country of origin
- China
Standards & Compliance
- HS Code
- 8541.40
Cross References
- EAN 4536854740671
- SAP 1000711534
- Code 8433855
