Omron

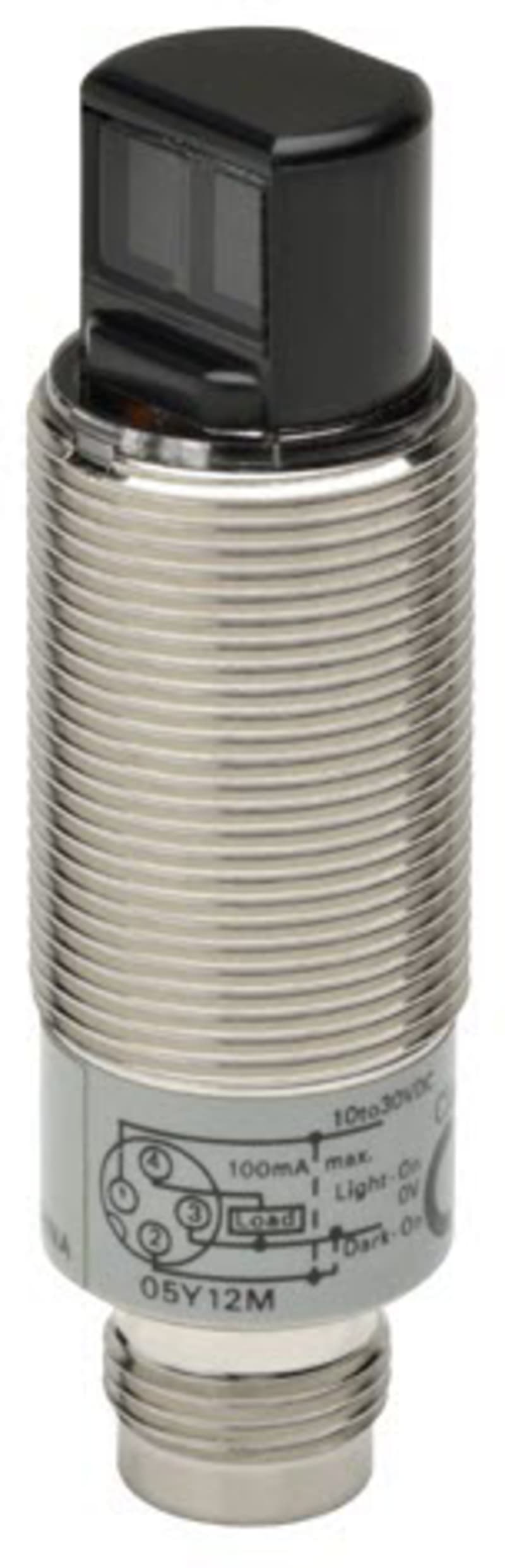

M18,ME,VINK,DIR30CM,PNP,M12 PL (E3RB-DP22 Oms)
Part numberE3RB-DP22 OMSEAN / GTIN4548583360808HS code8536.90
Sensors & Instrumentation
Photoelectric Sensors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Omron E3RB-DP22 OMS Photocell, M18 angled, metal housing, red LED, direct-sensing, 300mm, PNP, L-ON/D-ON selectable, M12 plug.
Technical Specifications
- Manufacturer part number (MPN)
- E3RB-DP22 OMS
- EAN / GTIN
- 4548583360808
- Sales unit
- pcs
- Connection
- M12 plug
- Thread size
- M18
- Output type
- PNP
- Sensing method
- Diffuse-reflective
- Sensing distance
- 30 cm
- Voltage type
- DC
- Max. output current
- 100 mA
- Housing material
- Metal
- Suitable for safety functions
- No
- Ambient temperature
- -25–55 °C
- With time function
- No
- With reflector
- No
- Switching frequency
- 2000 Hz
- Number of semiconductor outputs with signalling function
- 1
- Type of electric connection
- Connector M12
- Type of switching output
- PNP
- Type of switch function
- Programmable/configurable
- Rated control supply voltage DC
- 10–30 V
- Operation agent-safety class
- Safety class 3
- Setting procedure
- Manual adjustment
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cylinder, screw-thread
- Laser protection class
- None
- Type of light
- Polarity free red light
- Light dot
- 1800 mm²
- With monitoring function downstream switching devices
- No
- With restart blockage
- No
- Response time
- 0.5 ms
- Type of safety according to IEC 61496-1
- 1
- Pre failure notice
- No
- Wavelength of the sensor
- 624 nm
- Material of optical surface
- Plastic
- Degree of protection (IP)
- IP67
- Analogue output 0 V ... 10 V
- No
- Analogue output 0 mA ... 20 mA
- No
- Analogue output -10 V ... +10 V
- No
- Analogue output 4 mA ... 20 mA
- No
- AWG-number
- 23
- Width sensor
- 18 mm
- Diameter sensor
- 18 mm
- Height of sensor
- 18 mm
- With communication interface analogue
- No
- With communication interface AS-Interface
- No
- With communication interface CANOpen
- No
- With communication interface DeviceNet
- No
- With communication interface Ethernet
- No
- With communication interface INTERBUS
- No
- With communication interface PROFIBUS
- No
- With communication interface RS-232
- No
- With communication interface RS-422
- No
- With communication interface RS-485
- No
- With communication interface SSD
- No
- With communication interface SSI
- No
- Length of sensor
- 60.9 mm
- Max. switching distance
- 300 mm
- With other analogue output
- No
- Sensing mode
- Light-/dark switching
- Country of origin
- Indonesia
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4548583360808
- SAP 1000344061
- Code 81000272
Product Documentation
Document preview: M18,ME,VINK,DIR30CM,PNP,M12 PL (E3RB-DP22 Oms) — Specification sheet
More from Omron
Omron
M18,ME,VINK,REFL3M,PNP,M12 PLU (E3RB-RP21 Oms)
E3RB-RP21 OMS
Omron
Solid State 24-240VAC/40A
G3NA240BUTU24
Omron
Relay 8-Pin 2 Changeover 10A 24VDC (LY2I4N 24VDC)
Omron
M18,METAL,REFL4M,PNP,2M Cable (E3FB-RP11 2M Oms)
E3FB-RP11 2M OMS
Omron
E3JK for Celle REFL. 6M AC/DC
E3JK-RR12 2M
Omron
S8VK-G CURRENTF. 15W,12VDC,1,2A
S8VK-G01512
Omron

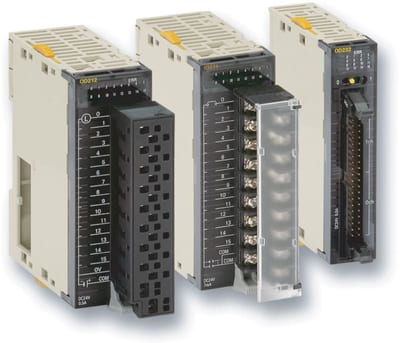

16 DIG.Input 24V DC (CJ1WID211)
