Omron D4BS safety switch
Pricing
Request a quote
We reply within 24 hours
Product Description
Omron D4BS safety switch (D4BS-15FS). Omron D4BS-15FS, safety switch, safety / safety switches. Product type Safety switch. Series Omron D4BS. Product family Safety / Safety Switches. Door switch type Key-operated. Guard-lock FALSE. Material housing Metal.
Technical Specifications
- Manufacturer part number (MPN)
- D4BS-15FS
- EAN / GTIN
- 4536853207366
- Sales unit
- pcs
- Product type
- Safety switch
- Series
- Omron D4BS
- Product family
- Safety / Safety Switches
- Door switch type
- Key-operated
- Guard-lock
- FALSE
- Material housing
- Metal
- Ambient temperature (operating)
- -40-80 °C
- Direction of operation
- Adjustable
- Door contacts NC
- 1
- Connection method
- Terminal block
- Cable length
- 0 m
- Degree of protection (IP)
- IP67
- Conduit size
- PG13.5
- Switch action
- Slow action
- Shape
- Cuboid
- Overall length of sensor
- 111.5 mm
- Height of sensor
- 43 mm
- Width of sensor
- 40 mm
- Rated operation current Ie at AC-15, 230 V
- 2 A
- Housing material
- Metal
- Suitable for safety functions
- Yes
- With status indication
- No
- Type of switching contact
- Slow-action switch
- Type of interface for safety communication
- None
- Type of electric connection
- Cable entry PG
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Forced opening
- No
- Type of interface
- None
- Width sensor
- 40 mm
- Length of sensor
- 111.5 mm
- Ambient temperature during operating
- -40–80 °C
- Number of contacts as normally closed contact
- 1
- Number of contacts as normally open contact
- 1
- Country of origin
- Japan
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4536853207366
- SAP 1000158722
- Code 8199826
Product Documentation
More from Omron
Omron

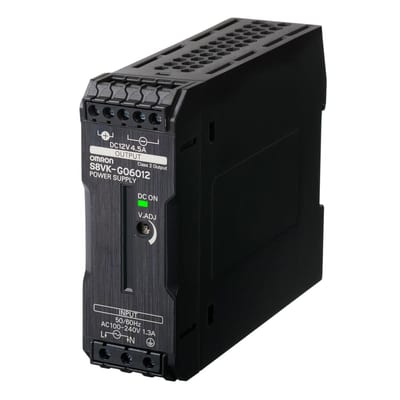

S8VK-G CURRENTF. 60W,12VDC,4.5A
S8VK-G06012
Omron
Polariserende Reflector 44X64
E39-RP1
Omron
Battery for S8BA-24D24D960SBF
S8BA-S960L
Omron
Jumper bar, 8 poles, yellow (PYDN-15.5-080Y)
Omron
Reflector 60X81MM (E39-R2)
Omron

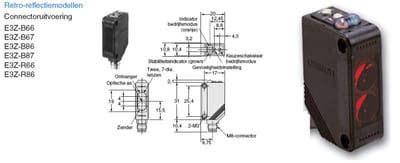

Omron E3ZB86 Photoelectric Sensor PNP 500 mm M8 Connector
Omron

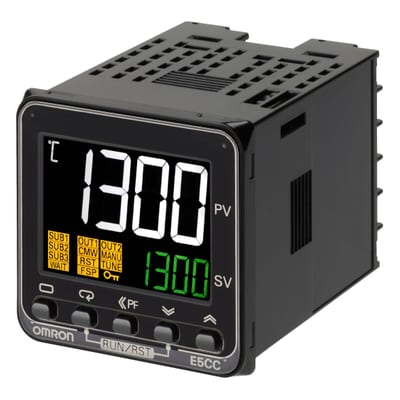

Omron E5_C temperature controller, screw terminals (E5CC-QX3A5M-000)
Omron

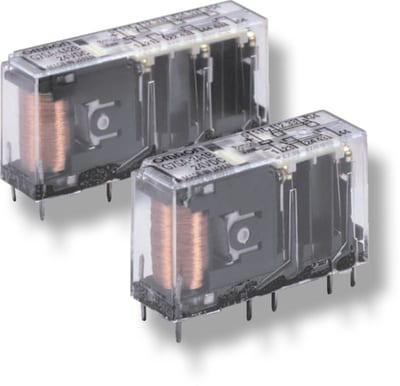

G7SA SIKK.Relay,3NO,1NC,24DC (G7SA-3A1B 24VDC)
