Omron E3ZB86 Photoelectric Sensor PNP 500 mm M8 Connector
Pricing
Request a quote
We reply within 24 hours
Product Description

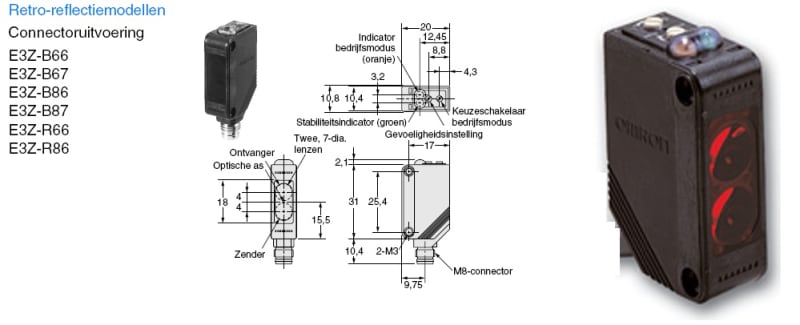

Omron E3ZB86 is a retro-reflective photoelectric sensor for transparent object detection with a 500 mm sensing distance. It operates on DC with 3-conductor PNP output rated at 80 mA and terminates in an M8 plug connector. The cuboid plastic housing measures 10.8 × 31 × 20 mm and requires a separate reflector and mounting bracket.
Technical Specifications
- Manufacturer part number (MPN)
- E3ZB86
- EAN / GTIN
- 4536854683688
- Sales unit
- pcs
- Output type
- PNP
- Sensing distance
- 500 mm
- Pre failure notice
- No
- With time function
- No
- Rated switching distance
- 500 mm
- Max. switching distance
- 500 mm
- Max. output current
- 80 mA
- With reflector
- No
- Analogue output 0 V ... 10 V
- No
- Analogue output 0 mA ... 20 mA
- No
- Analogue output 4 mA ... 20 mA
- No
- Analogue output -10 V ... +10 V
- No
- With other analogue output
- No
- Setting procedure
- Manual adjustment
- With communication interface analogue
- No
- With communication interface AS-Interface
- No
- With communication interface CANOpen
- No
- With communication interface DeviceNet
- No
- With communication interface Ethernet
- No
- With communication interface INTERBUS
- No
- With communication interface PROFIBUS
- No
- With communication interface RS-232
- No
- With communication interface RS-422
- No
- With communication interface RS-485
- No
- With communication interface SSD
- No
- With communication interface SSI
- No
- Number of semiconductor outputs with signalling function
- 1
- Type of electric connection
- Connector M8
- Type of switching output
- PNP
- Type of switch function
- Normally open contact (NO)
- Operation agent-safety class
- Safety class 0
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Width sensor
- 10.8 mm
- Height of sensor
- 31 mm
- Length of sensor
- 20 mm
- Sensing mode
- Light-/dark switching
- Material of optical surface
- Plastic
- Housing material
- Plastic
- Min. reflector distance
- 100 mm
- Ambient temperature
- -25–55 °C
- Response time
- 1 ms
- Switching frequency
- 1000 Hz
- Type of safety according to IEC 61496-1
- 1
- Rated control supply voltage DC
- 12–24 V
- Voltage type
- DC
- With monitoring function downstream switching devices
- No
- Laser protection class
- None
- Wavelength of the sensor
- 680 nm
- Type of light
- Polarity free red light
- With restart blockage
- No
- Suitable for safety functions
- No
- Degree of protection (IP)
- IP67
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.49
Cross References
- EAN 4536854683688
- SAP 1000157888
- Code 8810846
