Omron

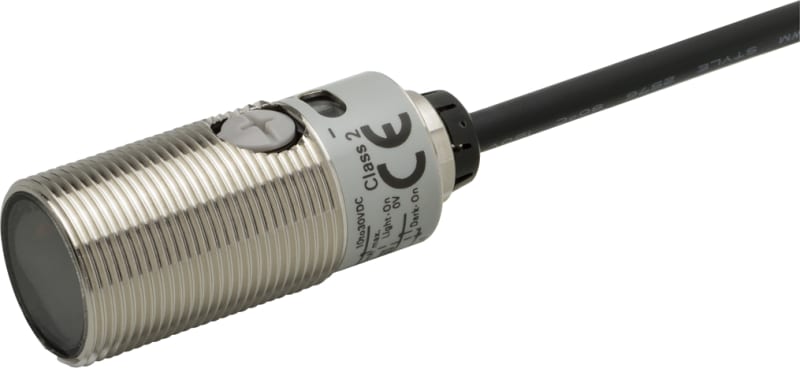

M18,METAL,REFL4M,PNP,2M Cable (E3FB-RP11 2M Oms)
Part numberE3FB-RP11 2M OMSEAN / GTIN4548583360143HS code8544.42
Sensors & Instrumentation
Photoelectric Sensors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Omron E3FB-RP11 2M OMS Photocell, M18, metal housing, red LED, reflector, 0.1-4m, PNP, L-ON/D-ON selectable, 2m cable.
Technical Specifications
- Manufacturer part number (MPN)
- E3FB-RP11 2M OMS
- EAN / GTIN
- 4548583360143
- HS code
- 8544.42
- Sales unit
- pcs
- Output type
- PNP
- Pre failure notice
- No
- With time function
- No
- Rated switching distance
- 4000 mm
- Max. switching distance
- 4000 mm
- Max. output current
- 100 mA
- With reflector
- No
- Analogue output 0 V ... 10 V
- No
- Analogue output 0 mA ... 20 mA
- No
- Analogue output 4 mA ... 20 mA
- No
- Analogue output -10 V ... +10 V
- No
- With other analogue output
- No
- Setting procedure
- Manual adjustment
- With communication interface analogue
- No
- With communication interface AS-Interface
- No
- With communication interface CANOpen
- No
- With communication interface DeviceNet
- No
- With communication interface Ethernet
- No
- With communication interface INTERBUS
- No
- With communication interface PROFIBUS
- No
- With communication interface RS-232
- No
- With communication interface RS-422
- No
- With communication interface RS-485
- No
- With communication interface SSD
- No
- With communication interface SSI
- No
- Number of semiconductor outputs with signalling function
- 1
- Type of electric connection
- Cable
- Type of switching output
- PNP
- Type of switch function
- Programmable/configurable
- Operation agent-safety class
- Safety class 0
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cylinder, screw-thread
- Width sensor
- 18 mm
- Diameter sensor
- 18 mm
- Height of sensor
- 18 mm
- Length of sensor
- 44 mm
- Sensing mode
- Light-/dark switching
- Material of optical surface
- Plastic
- Housing material
- Metal
- Min. reflector distance
- 100 mm
- Ambient temperature
- -25–55 °C
- Response time
- 0.5 ms
- Switching frequency
- 1000 Hz
- Type of safety according to IEC 61496-1
- 1
- Rated control supply voltage DC
- 10–30 V
- Voltage type
- DC
- With monitoring function downstream switching devices
- No
- Laser protection class
- None
- Wavelength of the sensor
- 624 nm
- Type of light
- Polarized red light
- With restart blockage
- No
- Suitable for safety functions
- No
- Degree of protection (IP)
- IP67
- Country of origin
- Indonesia
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 4548583360143
- SAP 1000344049
- Code 81006918
Product Documentation
Document preview: M18,METAL,REFL4M,PNP,2M Cable (E3FB-RP11 2M Oms) — Specification sheet
More from Omron
Omron
E3JK for Celle REFL. 6M AC/DC
E3JK-RR12 2M
Omron
S8VK-G CURRENTF. 15W,12VDC,1,2A
S8VK-G01512
Omron
16 DIG.Input 24V DC (CJ1WID211)
Omron
Omron D4BS safety switch
D4BS-15FS
Omron
S8VK-G CURRENTF. 60W,12VDC,4.5A
S8VK-G06012
Omron
Polariserende Reflector 44X64
E39-RP1
Omron
Battery for S8BA-24D24D960SBF
S8BA-S960L
Omron
Jumper bar, 8 poles, yellow (PYDN-15.5-080Y)
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy E3FB-RP11 2M OMS?
- E3FB-RP11 2M OMS can be ordered from cballast.com as a Omron catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Omron product?
- The manufacturer part number is E3FB-RP11 2M OMS.
- What is the HS code for E3FB-RP11 2M OMS?
- The customs tariff (HS) code for E3FB-RP11 2M OMS is 8544.42.
- Who manufactures E3FB-RP11 2M OMS?
- E3FB-RP11 2M OMS is a Omron product in the Sensors & Instrumentation range.
- Is a datasheet available for E3FB-RP11 2M OMS?
- Yes — the E3FB-RP11 2M OMS datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for E3FB-RP11 2M OMS?
- The minimum order quantity is 1.
- Is E3FB-RP11 2M OMS available?
- Yes — E3FB-RP11 2M OMS is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
