Omron

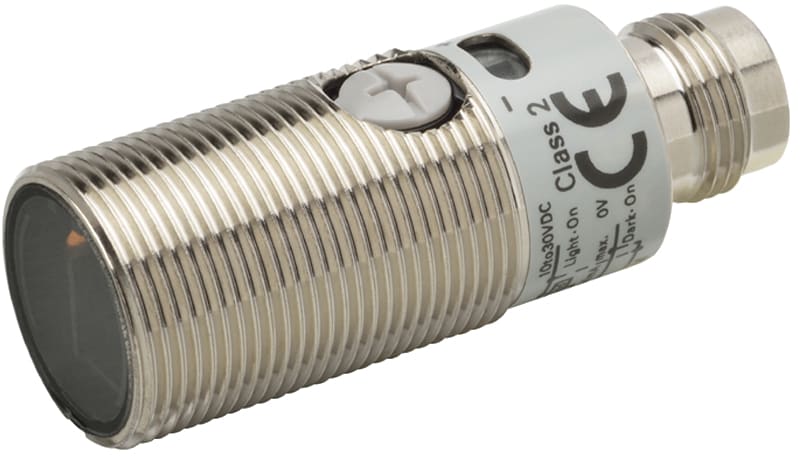

M18,METAL,DIR100CM,PNP,M12 PLU (E3FB-DP23 Oms)
Part numberE3FB-DP23 OMSEAN / GTIN4548583360013HS code8536.90
Sensors & Instrumentation
Photoelectric Sensors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Omron E3FB-DP23 OMS Photocell, M18, metal housing, red LED, direct-sensing, 1m, PNP, L-ON/D-ON selectable, M12 plug.
Technical Specifications
- Manufacturer part number (MPN)
- E3FB-DP23 OMS
- EAN / GTIN
- 4548583360013
- Sales unit
- pcs
- Connection
- M12 plug
- Thread size
- M18
- Output type
- PNP
- Housing material
- Metal
- Sensing method
- Diffuse-reflective
- Sensing distance
- 100 cm
- Voltage type
- DC
- Max. output current
- 100 mA
- Suitable for safety functions
- No
- Ambient temperature
- -25–55 °C
- With time function
- No
- With reflector
- No
- Switching frequency
- 1000 Hz
- Number of semiconductor outputs with signalling function
- 1
- Type of electric connection
- Connector M12
- Type of switching output
- PNP
- Type of switch function
- Programmable/configurable
- Rated control supply voltage DC
- 10–30 V
- Operation agent-safety class
- Safety class 3
- Setting procedure
- Manual adjustment
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cylinder, screw-thread
- Laser protection class
- None
- Type of light
- Polarity free red light
- Light dot
- 18000 mm²
- With monitoring function downstream switching devices
- No
- With restart blockage
- No
- Response time
- 0.5 ms
- Type of safety according to IEC 61496-1
- 1
- Pre failure notice
- No
- Wavelength of the sensor
- 624 nm
- Material of optical surface
- Plastic
- Degree of protection (IP)
- IP67
- Analogue output 0 V ... 10 V
- No
- Analogue output 0 mA ... 20 mA
- No
- Analogue output -10 V ... +10 V
- No
- Analogue output 4 mA ... 20 mA
- No
- AWG-number
- 23
- Diameter sensor
- 18 mm
- With communication interface analogue
- No
- With communication interface AS-Interface
- No
- With communication interface CANOpen
- No
- With communication interface DeviceNet
- No
- With communication interface Ethernet
- No
- With communication interface INTERBUS
- No
- With communication interface PROFIBUS
- No
- With communication interface RS-232
- No
- With communication interface RS-422
- No
- With communication interface RS-485
- No
- With communication interface SSD
- No
- With communication interface SSI
- No
- Length of sensor
- 48 mm
- Max. switching distance
- 1000 mm
- With other analogue output
- No
- Sensing mode
- Light-/dark switching
- Country of origin
- Indonesia
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4548583360013
- SAP 1000344044
- Code 81006916
Product Documentation
Document preview: M18,METAL,DIR100CM,PNP,M12 PLU (E3FB-DP23 Oms) — Specification sheet
More from Omron
No image
Omron
Omron S8VS-A/B switch-mode power supply, 120 W, 24 V DC, 5 A (S8VS12024AP)
Omron
Relay 5-Pin 1-Pole 10A LED 24VAC (G2R-1-SNI 24VAC (s))
G2R-1-SNI 24VAC (S)
Omron
Solid-state relay,15A,24-240VAC (G3PJ-215B-PU DC12-24)
Omron
Photocell Reflector (E39R6)
Omron
M18,ME,VINK,DIR30CM,PNP,M12 PL (E3RB-DP22 Oms)
E3RB-DP22 OMS
Omron
M18,ME,VINK,REFL3M,PNP,M12 PLU (E3RB-RP21 Oms)
E3RB-RP21 OMS
Omron
Solid State 24-240VAC/40A
G3NA240BUTU24
Omron

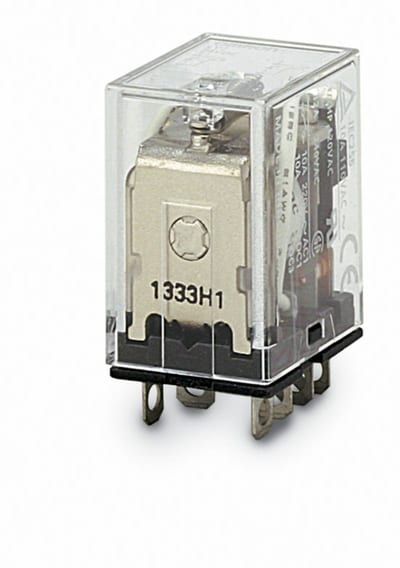

Relay 8-Pin 2 Changeover 10A 24VDC (LY2I4N 24VDC)
