Product Description

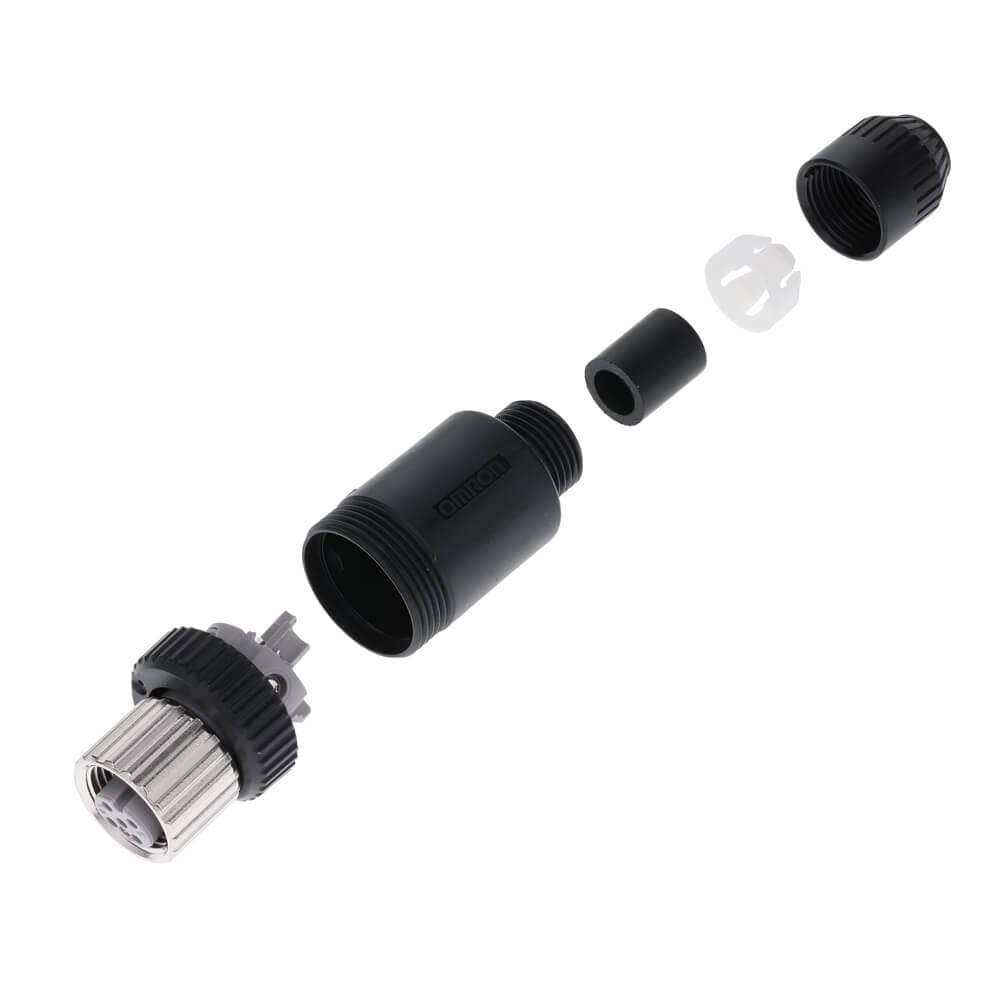

Omron M12 Connectors & Cordsets, 4-pin (XS2C-D4S1). Omron XS2C-D4S1, connector and cordset, sensing / connectors and cordsets. Product type Connector and cordset. Series Omron M12 Connectors & Cordsets. Product family Sensing / Connectors and Cordsets. Usage Field assembly connector. Connector 1 M12 straight socket. Number of pin contact 4.
Technical Specifications
- Manufacturer part number (MPN)
- XS2C-D4S1
- EAN / GTIN
- 4536854455919
- Sales unit
- pcs
- Product type
- Connector and cordset
- Series
- Omron M12 Connectors & Cordsets
- Product family
- Sensing / Connectors and Cordsets
- Usage
- Field assembly connector
- Connector 1
- M12 straight socket
- Number of pin contact
- 4
- Color cover
- Black
- Material nut
- Brass
- LED indicator
- FALSE
- Connection method
- Screw terminal
- For cable outer diameter
- 5-6 mm
- Contact type
- Bus
- Diameter connector
- 20 mm
- Number of data contacts
- 4
- Number of power contacts
- 4
- Number of control contacts
- 4
- Type of housing
- Straight
- Rated current In
- 4 A
- Ambient temperature
- -25–70 °C
- Rated voltage
- 250 V
- Overvoltage category
- I
- Pollution degree
- 2
- Connectable conductor cross section solid-core
- 0.18–0.75 mm²
- Connectable conductor cross section multi-wired
- 0.18–0.75 mm²
- Type of electric connection
- Screw connection
- Material of contact surface
- Gold
- Housing material
- Plastic
- Coating housing
- None
- Type of locking
- Gland nut
- With protective conductor
- No
- Degree of protection (IP), mounted
- IP67
- Min. number of insertion cycles
- 200
- Screened
- No
- With status indication
- No
- Thread size (metric)
- 12
- Country of origin
- Japan
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 4536854455919
- SAP 1200750030
- Code 83932069
