FR.OMF 750W 1X230
Pricing
Request a quote
We reply within 24 hours
Product Description
Omron MX2AB007E MX2 Variable-frequency drive, 0.75/1.1kW(HD/ND), 5.0/6.0A(HD/ND), 230VAC, 1-phase supply.
Technical Specifications
- Manufacturer part number (MPN)
- MX2AB007E
- EAN / GTIN
- 4547648636872
- HS code
- 8504.40
- Sales unit
- pcs
- Power
- 750 W

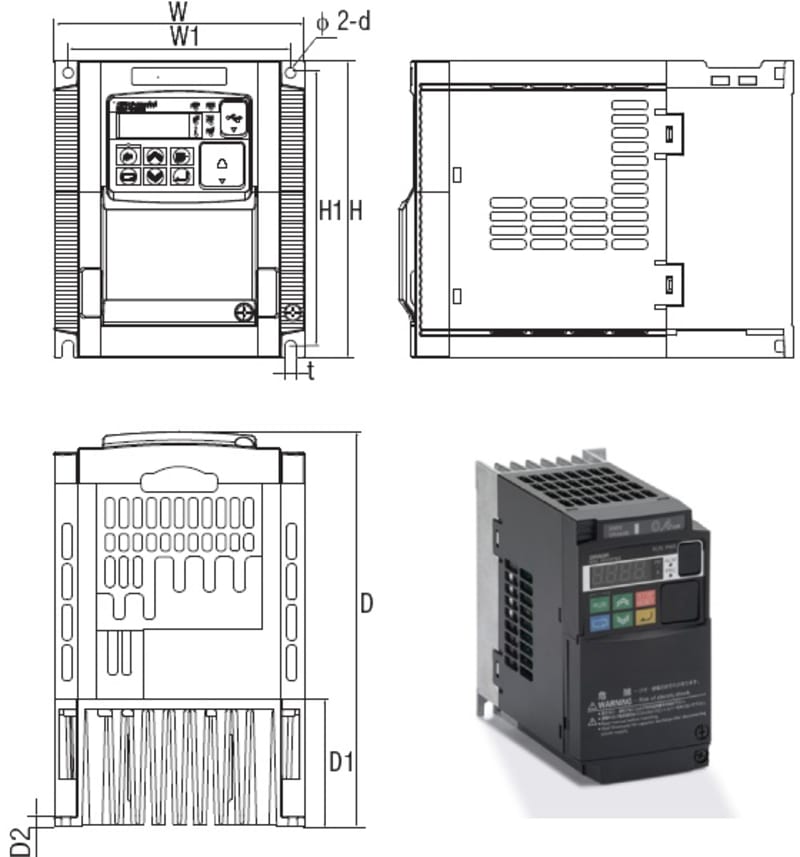

- Width
- 108 mm
- Height
- 128 mm
- Depth
- 170.5 mm
- With control element
- Yes
- Supporting protocol for LON
- No
- Number of HW-interfaces RS-485
- 1
- Number of HW-interfaces USB
- 1
- Number of HW-interfaces other
- 1
- With optical interface
- No
- Supporting protocol for TCP/IP
- Yes
- Supporting protocol for ASI
- No
- Supporting protocol for PROFIBUS
- Yes
- Supporting protocol for CAN
- Yes
- Supporting protocol for INTERBUS
- No
- Supporting protocol for KNX
- No
- Supporting protocol for Modbus
- Yes
- Supporting protocol for Data-Highway
- No
- Supporting protocol for DeviceNet
- Yes
- Supporting protocol for SUCONET
- No
- Supporting protocol for other bus systems
- Yes
- Degree of protection (IP)
- IP20
- With PC connection
- Yes
- Supporting protocol for SERCOS
- No
- Supporting protocol for INTERBUS-Safety
- No
- Mains voltage
- 200–240 V
- Mains frequency
- 50/60 Hz
- 4-quadrant operation possible
- Yes
- Number of phases output
- 3
- Number of phases input
- 1
- Integrated breaking resistance
- Yes
- Application in industrial area permitted
- Yes
- Application in domestic- and commercial area permitted
- No
- Max. output frequency
- 580 Hz
- Max. output at linear load at rated output voltage
- 0.75 kW
- Max. output at quadratic load at rated output voltage
- 1.1 kW
- Relative symmetric net voltage tolerance
- 10 %
- Relative symmetric net frequency tolerance
- 5 %
- Supporting protocol for AS-Interface Safety at Work
- No
- Supporting protocol for DeviceNet Safety
- No
- Supporting protocol for EtherNet/IP
- Yes
- Supporting protocol for Foundation Fieldbus
- No
- Supporting protocol for PROFINET CBA
- No
- Supporting protocol for PROFINET IO
- No
- Supporting protocol for PROFIsafe
- No
- Supporting protocol for SafetyBUS p
- No
- Max. output voltage
- 240 V
- Nominal output current I2N
- 6 A
- Country of origin
- China
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 4547648636872
- SAP 1000165181
- Code 8165307
Product Documentation
