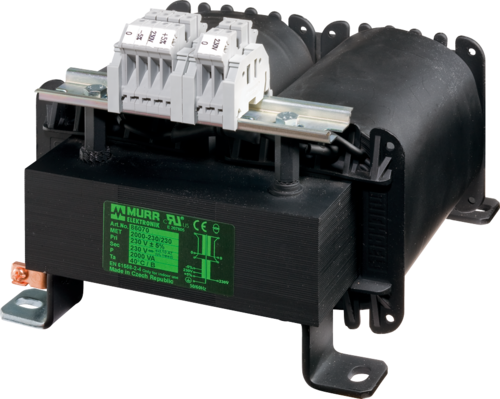

MET 1-Phase Control AND Isolation Transformer P: 2000VA In: 400VAC+/- 5% Out: 230VAC
Pricing
Request a quote
We reply within 24 hours
Product Description
Murrelektronik 86071 — MET 1-PHASE CONTROL AND ISOLATION TRANSFORMER P: 2000VA IN: 400VAC+/- 5% OUT: 230VAC. 2000-400+-5%/230 Single-phase - Control and Isolation Transformers 2000 VA Isolation class T 40/B
Technical Specifications
- Manufacturer part number (MPN)
- 86071
- Model designation
- MET
- EAN / GTIN
- 4048879078825
- HS code
- 8504.32
- EU customs tariff number
- 85043200
- US customs tariff number
- 8504320000
- Weight
- 19.800 kg
- Country of origin
- CZ
- Sales unit
- pcs
- Electrical data | Supply - Power frequency
- 50 ... 60 Hz
- Electrical data | Input - Input voltage AC
- 400 V
- Electrical data | Input - Input voltage AC min.
- 380 V
- Electrical data | Input - Input voltage AC max.
- 420 V
- Electrical data | Input - Current input AC
- 5.1 A
- Electrical data | Input - Max. inrush current
- 76 A
- Electrical data | Input - Short-circuit current
- 182 A
- Electrical data | Output - Output voltage adjustable
- No
- Electrical data | Output - Output voltage AC
- 230 V
- Electrical data | Output - Power rating AC max.
- 2.000 VA
- Electrical - Insulation test voltage input - output
- 4 kV
- Mechanical data | Mounting data - Height
- 170 mm
- Mechanical data | Mounting data - Width
- 195 mm
- Mechanical data | Mounting data - Depth
- 250 mm
- Mounting data - Suitable for mounting type
- Long-hole mounting
- Mechanical data | Mounting data - Mounting dimension a
- 200 mm
- Mechanical data | Mounting data - Mounting dimension b
- 174 mm
- Mechanical data | Mounting data - Mounting dimension c
- 9 mm
- Mechanical data | Mounting data - Diameter bore
- 9 mm
- Mechanical data | Mounting data - Length bore
- 14 mm
- Climatic - Operating temperature min.
- -20 °C
- Climatic - Operating temperature max.
- 40 °C
- Climatic - Ambient temperature (storage, transport)
- -40 °C … 80 °C
- Conformity - Product standard
- EN IEC 61558-1, EN IEC 61558-2-4, IEC 62041 category 0
- ETIM-5.0
- EC002486
- ETIM-6.0
- EC002486
- ETIM-7.0
- EC002486
- ETIM-8.0
- EC002486
- ETIM-9.0
- EC002486
- ETIM-10.0
- EC002486
- Packaging unit
- 1
- ECLASS 14.0
- 27031302
Standards & Compliance
- HS Code
- 8504.32
Cross References
- EAN 4048879078825
- SAP 1000455150
- Code 8791133
Product Documentation
