CUBE67 Hygienic Design I/O EXTENSION MODULE 8 multifunction channels

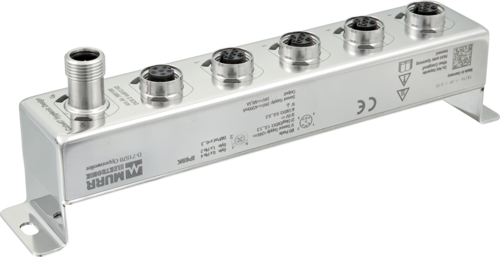

Murrelektronik 5661160 — CUBE67 Hygienic Design I/O EXTENSION MODULE 8 multifunction channels. DIO8 E 4xM12 HD Expansion module DIO8 - 0.5 A (E) - 4× M12 short-circuit and overload protected Digital inputs/outputs (multifunctional) Hygienic Design Stainless steel, polished

Manufacturer part number (MPN)

5661160

Model designation

Cube67

EAN / GTIN

4048879697309

HS code

8538.90

EU customs tariff number

85389099

US customs tariff number

8538908180

Weight

0.242 kg

Country of origin

DE

Sales unit

pcs

Electrical data | Supply - Norm operating voltage

IEC/EN 61131-2

Electrical data | Supply - Operating voltage US DC

24 V

Electrical data | Supply - Total current US max.

4 A

Electrical data | Supply - Operating voltage UA DC

24 V

Electrical data | Supply - Total current UA max.

4 A

Electrical data | Supply - Current consumption max.

50 mA

Electrical data | Input - Sensor current US per input max.

0.2 A

Electrical data | Input - Short-circuit protected

Yes

Electrical data | Input - Overload resistant

Yes

Electrical data | Input - filter time

1 ms

Electrical data | Input - Type input

for 3-wire sensors or mechanical switches, PNP

Electrical data | Output - Output current per pin max.

0.5 A

Electrical data | Output - Overload resistant

Yes

Electrical data | Output - Short-circuit protected

Yes

Electrical data | Output - Lamp load

10 W

Diagnostics - Actuator warning

per channel via LED and BUS

Diagnostics - Short circuit diagnosis

Yes

Diagnostics - Overload diagnosis

Yes

Diagnostics - Diagnostic

No voltage, Under voltage

Diagnostics - Diagnostic via BUS

per module and channel

Diagnostics - Diagnostic via LED

per module and channel

Diagnostics - LED display

Ethernet connection/data traffic

Electrical - Degree of protection (ISO 20653 -2013)

IP69K

Mechanical data | Mounting data - Height

54 mm

Mechanical data | Mounting data - Width

32 mm

Mechanical data | Mounting data - Depth

177 mm

Mounting data - Suitable for mounting type

2-hole screw mounting

Climatic - Operating temperature min.

0 °C

Climatic - Operating temperature max.

55 °C

Climatic - Ambient temperature (storage, transport)

-20 °C … 75 °C

Connection types - Connection type 1

0-3

Connection types - Connection type 2

Bus In

Connection types - Connection type 3

Bus Out

Connection type 1 - Family construction form

M12

Connection type 1 - No. of poles

5

Connection type 1 - Coding

A

Connection type 1 - Gender

male

Connection type 1 - Color contact carrier

black

Connection type 1 - PIN 1

24 V DC (US)

Connection type 1 - PIN 2

DI / DO 0.x

Connection type 1 - PIN 3

0 V

Connection type 1 - PIN 4

DI / DO 1.x

Connection type 1 - PIN 5

PE

Connection type 2 - Family construction form

M12

Connection type 2 - No. of poles

6

Connection type 2 - Coding

A

Connection type 2 - Gender

male

Connection type 2 - Color contact carrier

black

Connection type 2 - PIN 1

24 V DC (UA)

Connection type 2 - PIN 2

24 V DC (US)

Connection type 2 - PIN 3

0 V

Connection type 2 - PIN 4

Bus internal

Connection type 2 - PIN 5

Bus internal

Connection type 2 - PIN 6

0 V

Connection type 3 - Family construction form

M12

Connection type 3 - No. of poles

6

Connection type 3 - Coding

A

Connection type 3 - Gender

female

Connection type 3 - Color contact carrier

black

Connection type 3 - PIN 1

24 V DC (UA)

Connection type 3 - PIN 2

24 V DC (US)

Connection type 3 - PIN 3

0 V

Connection type 3 - PIN 4

Bus internal

Connection type 3 - PIN 5

Bus internal

Connection type 3 - PIN 6

0 V

ETIM-5.0

EC001855

ETIM-6.0

EC001855

ETIM-7.0

EC001855

ETIM-8.0

EC001855

ETIM-9.0

EC001855

ETIM-10.0

EC001855

Packaging unit

1

ECLASS 14.0

27242604

HS Code

8538.90

• EAN 4048879697309
• SAP 1200108860
• Code 81966814
