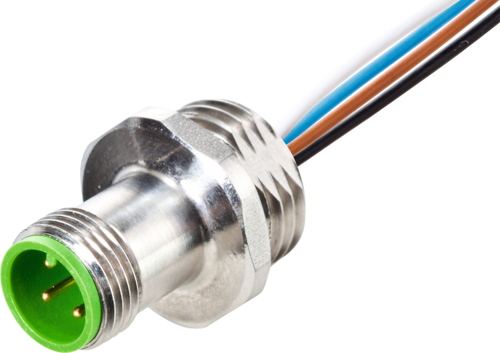

M12 male recept. A-cod. front F&B TPE-wires 12X0.14 0.2M

Murrelektronik 7014-19161-9790020 — M12 male recept. A-cod. front F&B TPE-wires 12x0.14 0.2m. Plug Connectors for Food & Beverage Flange male M12, 12-pole Front mounting Stainless steel 1.4404 (V4A)

Manufacturer part number (MPN)

7014-19161-9790020

Model designation

MSAFV-12E979_0.2-S14

EAN / GTIN

4048879364362

HS code

8544.42

EU customs tariff number

85444290

US customs tariff number

8544429090

Weight

0.028 kg

Country of origin

DE

Sales unit

pcs

Cable length

0.20 m

Side 1 - Family construction form

M12

Side 1 - No. of poles

12

Side 1 - Coding

A

Side 1 - Gender

male

Side 1 - Mounting method

inserted, screwed

Side 1 - Threaded hole

M12 x 1

Side 1 - Tightening torque

0.6 Nm

Side 1 - Width across flats

SW14

Side 1 - Material contact

Copper alloy

Side 1 - Coating contact

gold plated

Side 1 - Degree of protection (EN IEC 60529)

IP67, IP69K

Electrical data | Supply - Operating voltage AC max.

30 V

Electrical data | Supply - Operating voltage DC max.

30 V

Supply - Current operating per contact max.

1.5 A

Diagnostics - Status indication LED

No

Installation | Connection - Mounting set

M16 x 1.5

Installation | Connection - Width across flats

SW19

Electrical - Degree of protection (EN IEC 60529)

IP67, IP69K

Device protection | Electrical - Protection NEMA

6P, 4, 3

Electrical - Additional condition protection degree

inserted, screwed

Device protection | Electrical - Pollution Degree

3

Device protection | Electrical - Rated surge voltage

0.8 kV

Electrical - Material group (IEC 60664-1)

I

Mechanical data | Material data - Locking material

Stainless steel 1.4404 (V4A)

Mechanical data | Mounting data - Mounting method

inserted, screwed, Shaking protection

Climatic - Operating temperature min.

-30 °C

Climatic - Operating temperature max.

85 °C

Climatic - Additional condition temperature range

depending on cable quality

Important installation notes - Note on bending radius

Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces.

Important installation notes - Note on strain relief

Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties.

Conformity - Product standard

EN IEC 61076-2-101 (M12)

Approvals - UL 50E

Yes

General data | Cable - Cable identification

979

General data | Cable - Cable weigth

72 g/m

General data | Cable - UL AWM Style

10493

Structure | Cable - Stranding

1 × 3 wires stranded

Structure | Cable - Stranding (type 2)

1 × 9 wires stranded in opposite direction around stranding combination

Structure | Cable - Wire arrangement

(GYPK, VT, RDBU), BN, RD, GY, BK, YE, PK, GN, WH, BU

Wire data | Cable - Material wire insulation

PP

Wire data | Cable - Amount wires

12

Wire data | Cable - Outer diameter insulation

1 mm ± 0.05 mm

Wire data | Cable - Conductor crosssection (wire)

0.14 mm²

Wire data | Cable - Material conductor wire

Stranded copper wire, bare

Wire data | Cable - Core construction (wire)

18 × 0.1 mm

Wire data | Cable - Ingredient freeness wire insulation

lead-free, cadmium-free, CFC-free, halogen-free, silicone-free

Electrical data | Cable - Conductor resistance (wire)

138 Ω/km @ 20 °C

Electrical data | Cable - Nominal voltage max.

300 V

Electrical data | Cable - Withstand voltage (wire - wire)

1.5 kV @ 60 s

Cable - Current load capacity max. (wire)

2 A

Electrical data | Cable - Current load capacity (standard)

to DIN VDE 0298-4

Temperature range | Cable - Operating temperature (static)

-40 °C … 85 °C

Cable - Operating temperature (dynamic)

-25 °C … 85 °C

Resistances | Cable - Flame resistance

IEC 60332-2-2

Resistances | Cable - Oil resistance

IEC 60811-404

Resistances | Cable - Chemical resistance

good

Resistances | Cable - Other resistances

good resistance to gasoline, resistant to hydrolysis, resistant to microbes

Resistances | Cable - Notes

application-related testing

Installation | Cable - Bending radius (fixed)

7.5 × Outer diameter

Installation | Cable - Bending radius (dynamic)

10 × Outer diameter

Installation | Cable - No. of bending cycles (C-track)

2 Mio. @ 25 °C

Installation | Cable - Traversing distance (C-track)

5 m @ 25 °C

Installation | Cable - Travel speed (C-track)

3.3 m/s @ 25 °C

Installation | Cable - Acceleration (C-track)

5 m/s² @ 25 °C

Installation | Cable - No. of torsion cycles

2 Mio.

Installation | Cable - Torsion stress

± 180 °/m

Installation | Cable - Torsion speed

35 cycles/min

ETIM-5.0

EC001855

ETIM-6.0

EC001855

ETIM-7.0

EC001855

ETIM-8.0

EC001855

ETIM-9.0

EC001855

ETIM-10.0

EC001855

Packaging unit

1

ECLASS 14.0

27440109

HS Code

8544.42

• EAN 4048879364362
• SAP 1200009112
