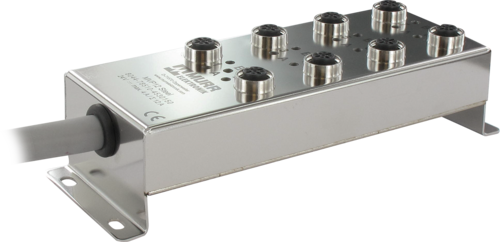

MVP12 Steel F&B, 8XM12, 5POLE, PRE-WIRED CABLE 30.0M TPE-V 16X0.5+3X1.0

Murrelektronik 8044-78510-4533000 — MVP12 Steel F&B, 8XM12, 5POLE, PRE-WIRED CABLE 30.0m TPE-V 16x0.5+3x1.0. 453 30.0 F&B 5-pole

Manufacturer part number (MPN)

8044-78510-4533000

Model designation

MVP12M-AN8F

EAN / GTIN

4048879554190

HS code

8544.42

EU customs tariff number

85444290

US customs tariff number

8544429090

Weight

6.650 kg

Country of origin

DE

Sales unit

pcs

Electrical data | Supply - Operating voltage DC

24 V

Supply - Current operating per contact max.

4 A

Installation | Connection - Mounting set

M12 x 1

Electrical - Degree of protection (EN IEC 60529)

IP67, IP68, IP65

Electrical - Degree of protection (ISO 20653 -2013)

IP69K

Electrical - Additional condition protection degree

inserted, screwed

Mechanical data | Material data - housing

Stainless steel 1.4404 (V4A)

Mechanical data | Mounting data - Mounting method

Schraubgewinde

Mechanical data | Mounting data - Cable length

30 m

Climatic - Operating temperature min.

-30 °C

Climatic - Operating temperature max.

80 °C

Climatic - Additional condition temperature range

depending on cable quality

General data | Cable - Cable identification

453

General data | Cable - Cable Type

Food & Beverage

General data | Cable - Function cable

Hybrid

General data | Cable - Cable weigth

181 g/m

Structure | Cable - Stranding

1 Wires

Structure | Cable - Stranding (type 2)

1 Wires

Structure | Cable - Filler

Yes

Structure | Cable - Wire arrangement

GYPK, BNGN, YE, GNWH, GN, RDBU, WH, (BNGY, BK, GYWH, RD, BNYE, PK, YEWH, GY, BU, BN, GNYE, VT)

Wire data | Cable - Material wire insulation

PP

Wire data | Cable - Amount wires

16

Wire data | Cable - Outer diameter insulation

1.6 mm ± 0.05 mm

Wire data | Cable - Conductor crosssection (wire)

0.5 mm²

Wire data | Cable - Material conductor wire

Stranded copper wire, bare

Wire data | Cable - Core construction (wire)

64 × 0.1 mm

Wire data | Cable - Ingredient freeness wire insulation

lead-free, cadmium-free, CFC-free, halogen-free, silicone-free

Wire data | Cable - Material wire insulation (type 2)

PP

Wire data | Cable - Amount wires (type 2)

3

Cable - Outer diameter wire insulation (type 2)

2.1 mm ± 0.05 mm

Wire data | Cable - Conductor crosssection (wire type 2)

1 mm²

Wire data | Cable - Material conductor wire (type 2)

Stranded copper wire, bare

Wire data | Cable - Core construction (wire type 2)

128 × 0.1 mm

Cable - Ingredient freeness wire insulation (type 2)

lead-free, cadmium-free, CFC-free, halogen-free, silicone-free

Jacket data | Cable - Material jacket

TPE-V

Jacket data | Cable - Outer-diameter (jacket)

11.6 mm ± 5 %

Jacket data | Cable - Jacket Color

gray / RAL 7040

Jacket data | Cable - Freedom from ingredients (jacket)

lead-free, cadmium-free, CFC-free, halogen-free, silicone-free

Electrical data | Cable - Conductor resistance (wire)

39 Ω/km @ 20 °C

Cable - Conductor resistance (wire type 2)

19.5 Ω/km @ 20 °C

Electrical data | Cable - Nominal voltage max.

300 V

Electrical data | Cable - Withstand voltage (wire - wire)

2 kV @ 60 s

Cable - Withstand voltage (wire - jacket)

2 kV @ 60 s

Cable - Current load capacity max. (wire)

5.9 A

Cable - Current load capacity max. Wire (type 2)

15 A

Electrical data | Cable - Current load capacity (standard)

to DIN VDE 0298-4

Temperature range | Cable - Operating temperature (static)

-40 °C … 90 °C

Cable - Operating temperature (dynamic)

-20 °C … 90 °C

Installation | Cable - Bending radius (fixed)

5 × Outer diameter

Installation | Cable - Bending radius (dynamic)

10 × Outer diameter

Installation | Cable - No. of bending cycles (C-track)

5 Mio. @ 25 °C

Installation | Cable - Traversing distance (C-track)

5 m @ 25 °C

Installation | Cable - Travel speed (C-track)

3.3 m/s @ 25 °C

Installation | Cable - Acceleration (C-track)

5 m/s² @ 25 °C

Connection type 1 - Family construction form

free cable end

Connection type 1 - No. of poles

19

Connection type 1 - Color contact carrier

gray

Connection type 2 - Family construction form

M12

Connection type 2 - No. of poles

5

Connection type 2 - Coding

A

Connection type 2 - Gender

female

Connection type 2 - Color contact carrier

black

Connection type 2 - PIN 1

+

Connection type 2 - PIN 2

NC S 2

Connection type 2 - PIN 4

NO S 1

Connection type 2 - PIN 5

PE

ETIM-5.0

EC002585

ETIM-6.0

EC002585

ETIM-7.0

EC002585

ETIM-8.0

EC002585

ETIM-9.0

EC002585

ETIM-10.0

EC002585

Packaging unit

1

ECLASS 14.0

27440108

HS Code

8544.42

• EAN 4048879554190
• SAP 1000707298
• Code 8665487
