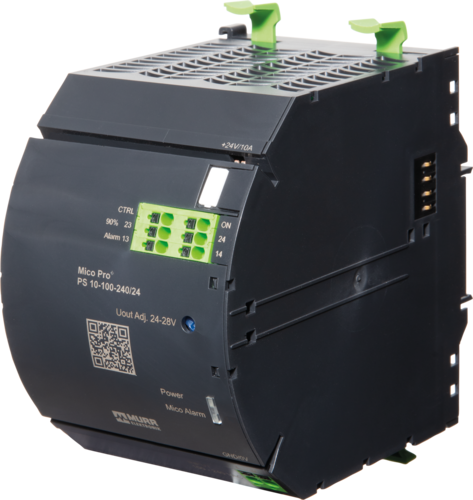

Mico Pro PS 10-100-240/24 IN: 90- 265VAC OUT: 24-28V/10ADC / Cover plate included (heavy duty)
Pricing
Request a quote
We reply within 24 hours
Product Description
Murrelektronik 9000-41190-0000110 — Mico Pro PS 10-100-240/24 IN: 90- 265VAC OUT: 24-28V/10ADC / Cover plate included (heavy duty). Pro PS 10-100-240/24 INPUT: 90.265 V AC OUTPUT: 24.28 V DC Current: 10 A Build your own Mico Pro® online: START Mains failure bridging min. min. 44 ms (115 V AC); min. 44 ms (230 V AC)
Technical Specifications
- Manufacturer part number (MPN)
- 9000-41190-0000110
- Model designation
- Mico
- EAN / GTIN
- 4048879695817
- HS code
- 8504.40
- EU customs tariff number
- 85044083
- US customs tariff number
- 8504409550
- Weight
- 0.650 kg
- Country of origin
- CZ
- Sales unit
- pcs
- Electrical data - Parallel connection
- Yes
- Number of devices parallel connection max.
- 2
- Electrical data - Series connection
- No
- Electrical data | Supply - Protective measure
- SELV
- Electrical data | Supply - Power frequency
- 50 ... 60 Hz
- Electrical data | Input - Input voltage AC min.
- 90 V
- Electrical data | Input - Input voltage AC max.
- 265 V
- Electrical data | Input - Nominal input voltage AC
- 115 V … 230 V
- Electrical data | Input - Nominal current AC
- 3.7 A @ 115 V,1.7 A @ 230 V
- Electrical data | Input - Inrush current max.
- 25 A
- Electrical data | Input - Power factor
- 115 V AC @ 230 V AC
- Electrical data | Input - Efficiency
- 91.8 % @ 115 V AC 93.6 % @ 230 V AC
- Electrical data | Input - Characteristic back-up fuse
- Inertia
- Input - Fuse protection primary side internal
- 6.3 A
- Input - ON input voltage control inputs min.
- 9 V
- Input - ON input voltage control inputs max.
- 30 V
- Electrical data | Input - CTRL signal
- ON/OFF
- Input - CTRL input voltage control inputs high min.
- 9 V
- Input - CTRL input voltage control inputs high max.
- 30 V
- Input - ON pulse length control inputs high min.
- 120 ms
- Electrical data | Output - Output voltage adjustable
- Yes
- Electrical data | Output - Output voltage DC
- 24 V
- Electrical data | Output - Output voltage DC min.
- 24 V
- Electrical data | Output - Output voltage DC max.
- 28 V
- Electrical data | Output - Output current
- 10 A
- Electrical data | Output - Spikes (s-s) max.
- 380 mV
- Electrical data | Output - Ripple effective max.
- 20 mV
- Electrical data | Output - Switching voltage AC max.
- 30 V
- Electrical data | Output - Switching voltage DC max.
- 30 V
- Installation | Connection - Connection
- Push-In spring clamp terminals
- Electrical - Degree of protection (EN IEC 60529)
- IP20
- Electrical - Overload protection output
- Yes
- Electrical - Short-circuit protection output
- Yes
- Electrical - Overtemperature protection output
- Yes
- Mechanical data | Mounting data - Height
- 130 mm
- Mechanical data | Mounting data - Width
- 74 mm
- Mechanical data | Mounting data - Depth
- 114 mm
- Mechanical data | Mounting data - Mounting method
- geschnappt
- Mounting data - Suitable for mounting type
- Mounting rail TH35, (EN 60715)
- Electromagnetic compatibility - Interference emission
- IEC 61000-3-2
- Climatic - Operating temperature min.
- -25 °C
- Climatic - Operating temperature max.
- 55 °C
- Climatic - Ambient temperature (storage, transport)
- -40 °C … 85 °C
- Climatic - Relative humidity (operation)
- 5 % … 95 %
- Climatic - Additional condition relative humidity
- no condensation
- Conformity - Product standard
- EN IEC 61010-2-201
- ETIM-5.0
- EC001440
- ETIM-6.0
- EC001440
- ETIM-7.0
- EC001440
- ETIM-8.0
- EC001440
- ETIM-9.0
- EC001440
- ETIM-10.0
- EC001440
- Packaging unit
- 1
- ECLASS 14.0
- 27040701
