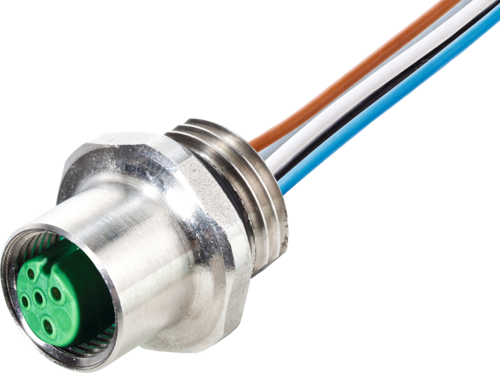

M12 female recept. A-cod. front F&B PUR-wires 4X0.34 0.2M

Murrelektronik 7014-13541-9710020 — M12 female recept. A-cod. front F&B PUR-wires 4x0.34 0.2m. Plug Connectors for Food & Beverage Flange female M12, 4-pole Front mounting with multi-strand wire Stainless steel 1.4404 (V4A)

Manufacturer part number (MPN)

7014-13541-9710020

Model designation

MSBFV-T971_0.2-S14

EAN / GTIN

4048879363655

HS code

8544.42

EU customs tariff number

85444290

US customs tariff number

8544429090

Weight

0.019 kg

Country of origin

DE

Sales unit

pcs

Cable length

0.20 m

Side 1 - Family construction form

M12

Side 1 - No. of poles

4

Side 1 - Coding

A

Side 1 - Gender

female

Side 1 - Mounting method

inserted, screwed

Side 1 - Threaded hole

M12 x 1

Side 1 - Tightening torque

0.6 Nm

Side 1 - Width across flats

SW14

Side 1 - Material contact

Copper alloy

Side 1 - Coating contact

gold plated

Side 1 - Degree of protection (EN IEC 60529)

IP67, IP69K

Electrical data - Conductor resistance (wire)

58 Ω/km @ 20 °C

Electrical data | Supply - Operating voltage AC max.

250 V

Electrical data | Supply - Operating voltage DC max.

250 V

Supply - Current operating per contact max.

4 A

Electrical data | Supply - Nominal voltage AC max.

300 V

Diagnostics - Status indication LED

No

Installation | Connection - Mounting set

M16 x 1.5

Installation | Connection - Width across flats

SW19

Electrical - Degree of protection (EN IEC 60529)

IP67, IP69K

Device protection | Electrical - Protection NEMA

6P, 4, 3

Electrical - Additional condition protection degree

mounted, screwed

Device protection | Electrical - Pollution Degree

3

Electrical - Current load capacity (standard)

to DIN VDE 0298-4

Electrical - Current load capacity min. wire

6 A

Device protection | Electrical - Rated surge voltage

2.5 kV

Device protection | Electrical - Isolation resistance

20 MΩ × km

Electrical - Withstand voltage (wire - wire)

1.5 kV @ 60 s

Electrical - Material group (IEC 60664-1)

I

Mechanical data - Amount strands (wire)

19

Mechanical data - Diameter of single wires

0.15 mm

Mechanical data - Contour for corrugated hose

without

Mechanical data | Material data - housing

Stainless steel 1.4404 (V4A)

Mechanical data | Material data - Locking material

Stainless steel 1.4404 (V4A)

Mechanical data | Material data - Gasket

EPDM

Mechanical data | Material data - Material wire insulation

PUR

Material data - Ingredient freeness wire insulation

lead-free, CFC-free, halogen-free

Mechanical data | Material data - Material conductor wire

copper stranded wire, tinned

Mechanical data | Mounting data - Mounting method

inserted, screwed, Shaking protection

Mechanical data | Mounting data - Cable weigth

4.4 g/m

Climatic - Operating temperature min.

-30 °C

Climatic - Operating temperature max.

85 °C

Climatic - Operating temperature min. (static)

-40 °C

Climatic - Operating temperature max. (static)

-40 °C … 90 °C

Climatic - Operating temperature min. (dynamic)

-25 °C

Climatic - Operating temperature max. (dynamic)

-25 °C … 90 °C

Climatic - Additional condition temperature range

depending on cable quality

Important installation notes - Note on bending radius

Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces.

Important installation notes - Note on strain relief

Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties.

Conformity - Product standard

EN IEC 61076-2-101 (M12)

Approvals - UL 50E

Yes

General data | Cable - Cable identification

971

General data | Cable - Cable weigth

33 g/m

Structure | Cable - Stranding

1 × 4 wires stranded

Structure | Cable - Wire arrangement

BN, WH, BU, BK

Wire data | Cable - Material wire insulation

PUR

Wire data | Cable - Amount wires

4

Wire data | Cable - Outer diameter insulation

1.3 mm ± 0.1 mm

Wire data | Cable - Conductor crosssection (wire)

0.34 mm²

Wire data | Cable - Material conductor wire

copper stranded wire, tinned

Wire data | Cable - Core construction (wire)

19 × 0.15 mm

Wire data | Cable - Ingredient freeness wire insulation

lead-free, CFC-free, halogen-free

Electrical data | Cable - Conductor resistance (wire)

58 Ω/km @ 20 °C

Electrical data | Cable - Nominal voltage max.

300 V

Electrical data | Cable - Withstand voltage (wire - wire)

1.5 kV @ 60 s

Cable - Current load capacity max. (wire)

4.8 A

Electrical data | Cable - Current load capacity (standard)

to DIN VDE 0298-4

Electrical data | Cable - Isolation resistance

20 MΩ × km

Temperature range | Cable - Operating temperature (static)

-40 °C … 90 °C

Cable - Operating temperature (dynamic)

-25 °C … 90 °C

Resistances | Cable - Flame resistance

IEC 60332-1-2

Resistances | Cable - Oil resistance

IEC 60811-404

Resistances | Cable - Other resistances

resistant to hydrolysis, resistant to microbes

Resistances | Cable - Notes

application-related testing

ETIM-5.0

EC001855

ETIM-6.0

EC001855

ETIM-7.0

EC001855

ETIM-8.0

EC001855

ETIM-9.0

EC001855

ETIM-10.0

EC001855

Packaging unit

1

ECLASS 14.0

27440109
