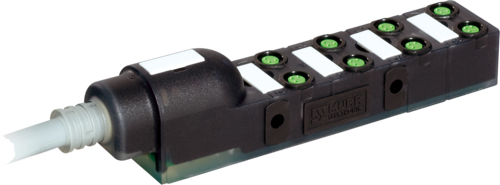

EXACT8, 8XM8, 3 POLE Moulded Cable 5.0M PUR 8X0,34+2X0,75, UL/CSA

Murrelektronik 8000-88010-3590500 — EXACT8, 8XM8, 3 POLE MOULDED CABLE 5.0m PUR 8x0,34+2x0,75, UL/CSA. 5.0M 8-way, 3-pole

Manufacturer part number (MPN)

8000-88010-3590500

Model designation

MVP8N-AN8D359

EAN / GTIN

4048879054737

HS code

8544.42

EU customs tariff number

85444290

US customs tariff number

8544429090

Weight

0.677 kg

Country of origin

DE

Sales unit

pcs

Electrical data | Supply - Operating voltage DC

24 V

Supply - Current operating per contact max.

2 A

Electrical data | Supply - Total current max.

8 A

Industrial Communication - Number of signals per port

1

Installation | Connection - Mounting set

M8 x 1

Electrical - Degree of protection (EN IEC 60529)

IP67, IP65

Device protection | Media - Flame resistance

flame retardant

Mechanical data | Material data - housing

Plastic

Mechanical data | Mounting data - Mounting method

Schraubgewinde

Climatic - Operating temperature min.

-20 °C

Climatic - Operating temperature max.

80 °C

Climatic - Additional condition temperature range

depending on cable quality

General data | Cable - Cable identification

359

General data | Cable - Cable Type

3

General data | Cable - Function cable

Hybrid, Signal, Power

General data | Cable - Cable weigth

100 g/m

General data | Cable - UL AWM Style

20233 / 10493

Structure | Cable - Stranding

1 × 10 wires around core filler twisted

Structure | Cable - Banding

Fleece

Structure | Cable - Filler

Yes

Structure | Cable - Wire arrangement

BN, BU, VT, BK, RD, PK, GY, YE, GN, WH

Wire data | Cable - Electrical function wire

Signal

Wire data | Cable - Material wire insulation

PP

Wire data | Cable - Amount wires

8

Wire data | Cable - Outer diameter insulation

1.5 mm ± 0.05 mm

Wire data | Cable - Conductor crosssection (wire)

0.34 mm²

Wire data | Cable - Material conductor wire

Stranded copper wire, bare

Wire data | Cable - Core construction (wire)

42 × 0.1 mm

Wire data | Cable - Ingredient freeness wire insulation

lead-free, cadmium-free, CFC-free, halogen-free, LABS-free, silicone-free

Wire data | Cable - Electrical function wire (type 2)

Power

Wire data | Cable - Material wire insulation (type 2)

PP

Wire data | Cable - Amount wires (type 2)

2

Cable - Outer diameter wire insulation (type 2)

1.8 mm ± 0.05 mm

Wire data | Cable - Conductor crosssection (wire type 2)

0.75 mm²

Wire data | Cable - Material conductor wire (type 2)

Stranded copper wire, bare

Wire data | Cable - Core construction (wire type 2)

96 × 0.1 mm

Cable - Ingredient freeness wire insulation (type 2)

lead-free, cadmium-free, CFC-free, halogen-free, LABS-free, silicone-free

Jacket data | Cable - Material jacket

PUR

Jacket data | Cable - Outer-diameter (jacket)

9.2 mm ± 5 %

Jacket data | Cable - Jacket Color

gray / RAL 7040

Jacket data | Cable - Freedom from ingredients (jacket)

lead-free, cadmium-free, CFC-free, halogen-free, LABS-free, silicone-free

Jacket data | Cable - Material property (jacket)

abrasion-resistant, low adhesion, good machinability, matte

Electrical data | Cable - Conductor resistance (wire)

57 Ω/km @ 20 °C

Cable - Conductor resistance (wire type 2)

26 Ω/km @ 20 °C

Cable - Max. rated voltage (conductor - ground)

300 V

Cable - Max. rated voltage (conductor - conductor)

500 V

Electrical data | Cable - Withstand voltage (wire - wire)

2 kV @ 60 s

Cable - Withstand voltage (wire - jacket)

2 kV @ 60 s

Cable - Current load capacity max. (wire)

4 A

Cable - Current load capacity max. Wire (type 2)

12 A

Electrical data | Cable - Current load capacity (standard)

to DIN VDE 0298-4

Temperature range | Cable - Operating temperature (static)

-40 °C … 80 °C / 90 °C @ 10000 h Operation

Cable - Operating temperature (dynamic)

-25 °C … 80 °C / 90 °C @ 10000 h Operation

Cable - Operating temperature (drag chain)

-5 °C … 60 °C

Resistances | Cable - Flame resistance

IEC 60332-1-2

Resistances | Cable - Oil resistance

ISO 19642-3

Resistances | Cable - Chemical resistance

ISO 19642-3

Resistances | Cable - Ozone resistance

IEC 60811-403

Resistances | Cable - UV resistance

UL 1581 § 1200

Resistances | Cable - Other resistances

resistance to gasoline (ISO 19642-3), resistant to mineral oils, greases, machine and gear oils and cooling lubricants, resistant to hydrolysis, resistant to microbes

Resistances | Cable - Notes

application-related testing

Installation | Cable - Bending radius (fixed)

7.5 × Outer diameter

Installation | Cable - Bending radius (dynamic)

10 × Outer diameter

Installation | Cable - No. of bending cycles (C-track)

5 Mio. @ 25 °C

Installation | Cable - Traversing distance (C-track)

10 m @ 25 °C | horizontal

Installation | Cable - Travel speed (C-track)

3 m/s @ 25 °C

Installation | Cable - Acceleration (C-track)

10 m/s² @ 25 °C

ETIM-5.0

EC002585

ETIM-6.0

EC002585

ETIM-7.0

EC002585

ETIM-8.0

EC002585

ETIM-9.0

EC002585

ETIM-10.0

EC002585

Packaging unit

1

ECLASS 14.0

27440108

HS Code

8544.42
