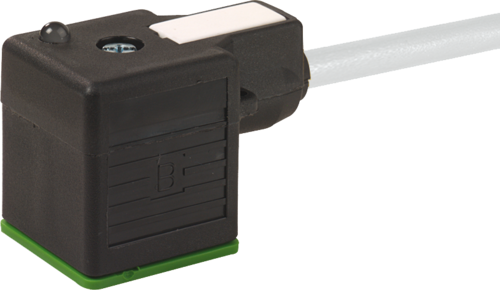

MSUD valve plug A-18MM with cable PUR 3X0.75 gy UL/CSA+drag ch. 5M

Murrelektronik 7000-18021-2360500 — MSUD valve plug A-18mm with cable PUR 3x0.75 gy UL/CSA+drag ch. 5m. MSUD Form A (18 mm) 24 V AC ±20% / DC ±25% LED and suppression Bridged PE

Manufacturer part number (MPN)

7000-18021-2360500

Model designation

MSUDK-AB1Z-236_5.0

EAN / GTIN

4048879194006

HS code

8544.42

EU customs tariff number

85444290

US customs tariff number

8544429090

Weight

0.296 kg

Country of origin

CZ

Sales unit

pcs

Cable length

5.00 m

Side 1 - Family construction form

Valve connector form A

Side 1 - No. of poles

4

Side 1 - Gender

female

Side 1 - Mounting method

inserted, screwed

Side 1 - Threaded hole

M3x31

Side 1 - Tightening torque

0.4 Nm

Side 1 - Material

PBT

Side 1 - Degree of protection (EN IEC 60529)

IP67

Electrical data - Drop-out delay time max.

20 ms

Electrical data | Supply - Operating voltage AC

24 V

Electrical data | Supply - Operating voltage AC min.

19.2 V

Electrical data | Supply - Operating voltage AC max.

28.8 V

Electrical data | Supply - Operating voltage DC

24 V

Electrical data | Supply - Operating voltage DC min.

18 V

Electrical data | Supply - Operating voltage DC max.

30 V

Supply - Current operating per contact max.

4 A

Electrical data | Supply - Cut-off peak voltage max.

55 V

Electrical data | Supply - Current consumption max.

15 mA

Diagnostics - Status indication LED

yellow

Installation | Connection - Mounting set

M3x31

Electrical - Additional condition protection degree

inserted, screwed

Device protection | Electrical - Pollution Degree

3

Device protection | Electrical - Additional suppressor

Diode, Z-diode

Device protection | Electrical - Rated surge voltage

0.8 kV

Electrical - Material group (IEC 60664-1)

I

Mechanical data | Material data - Color housing

black

Mechanical data | Material data - Screw connection

Steel

Mechanical data | Material data - Coating of fitting

galvanized

Mechanical data | Material data - Locking material

Steel

Mechanical data | Material data - Coating locking

galvanized

Mechanical data | Material data - Gasket

PUR

Mechanical data | Mounting data - Mounting method

inserted, screwed

Climatic - Operating temperature min.

-25 °C

Climatic - Operating temperature max.

85 °C

Climatic - Additional condition temperature range

depending on cable quality

Important installation notes - Note on bending radius

Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces.

Important installation notes - Note on strain relief

Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties.

General data | Cable - Cable identification

236

General data | Cable - Cable Type

3

General data | Cable - Cable weigth

51 g/m

General data | Cable - UL AWM Style

20549 / 10493

Structure | Cable - Stranding

1 × 3 wires stranded

Structure | Cable - Wire arrangement

BK 1, BK 2, GNYE

Wire data | Cable - Material wire insulation

PP

Wire data | Cable - Amount wires

3

Wire data | Cable - Outer diameter insulation

1.85 mm ± 0.1 mm

Wire data | Cable - Conductor crosssection (wire)

0.75 mm²

Wire data | Cable - Material conductor wire

Stranded copper wire, bare

Wire data | Cable - Core construction (wire)

42 × 0.15 mm

Wire data | Cable - Ingredient freeness wire insulation

lead-free, cadmium-free, CFC-free, halogen-free, silicone-free

Jacket data | Cable - Material jacket

PUR

Jacket data | Cable - Outer-diameter (jacket)

5.9 mm ± 5 %

Jacket data | Cable - Jacket Color

gray / RAL 7040

Jacket data | Cable - Freedom from ingredients (jacket)

lead-free, cadmium-free, CFC-free, halogen-free, silicone-free

Jacket data | Cable - Material property (jacket)

abrasion-resistant, low adhesion, good machinability, matte

Electrical data | Cable - Conductor resistance (wire)

26 Ω/km @ 20 °C

Electrical data | Cable - Nominal voltage max.

300 V

Electrical data | Cable - Withstand voltage (wire - wire)

2.5 kV @ 60 s

Cable - Withstand voltage (wire - jacket)

2.5 kV @ 60 s

Cable - Current load capacity max. (wire)

12 A

Electrical data | Cable - Current load capacity (standard)

to DIN VDE 0298-4

Temperature range | Cable - Operating temperature (static)

-40 °C … 80 °C / 90 °C @ 10000 h Operation

Cable - Operating temperature (dynamic)

-25 °C … 80 °C / 90 °C @ 10000 h Operation

Cable - Operating temperature (drag chain)

-25 °C … 80 °C / 90 °C @ 10000 h Operation

Resistances | Cable - Flame resistance

UL 1581 § 1090, CSA FT2, IEC 60332-2-2

Resistances | Cable - Oil resistance

IEC 60811-404

Resistances | Cable - Chemical resistance

good

Resistances | Cable - Other resistances

good resistance to gasoline, resistant to hydrolysis, resistant to microbes

Resistances | Cable - Notes

application-related testing

Installation | Cable - Bending radius (fixed)

5 × Outer diameter

Installation | Cable - Bending radius (dynamic)

10 × Outer diameter

Installation | Cable - No. of bending cycles (C-track)

10 Mio. @ 25 °C

Installation | Cable - Traversing distance (C-track)

10 m @ 25 °C | horizontal

Installation | Cable - Travel speed (C-track)

3 m/s @ 25 °C

Installation | Cable - Acceleration (C-track)

10 m/s² @ 25 °C

Installation | Cable - No. of torsion cycles

2 Mio.

Installation | Cable - Torsion stress

± 180 °/m

Installation | Cable - Torsion speed

35 cycles/min

ETIM-9.0

EC001855

ETIM-10.0

EC001855

Packaging unit

1

HS Code

8544.42

• EAN 4048879194006
• SAP 1000434720
• Code 847093
