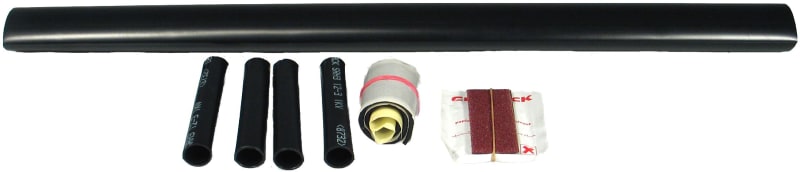

Melbye 4X1,5-10 SMH4G Heat-Shrink Cable Joint for Rubber Cable 4x1.5–10 mm² 0.6/1 kV
Pricing
Request a quote
We reply within 24 hours
Product Description
Melbye 4X1,5-10 SMH4G is a heat-shrink cable joint sized for four-core rubber cables of 1.5 to 10 mm² nominal cross-section, rated 0.6/1 (1.2) kV. The joint is compatible with H07RN-F flexible rubber cable and re-establishes insulation, mechanical strength, and moisture sealing at the splice through halogen-free polymeric heat-shrink tubing. Typical applications include the field repair and extension of portable and drum-fed rubber cables on construction and mining supply feeders.
Technical Specifications
- Manufacturer part number (MPN)
- 4X1,5-10 SMH4G
- EAN / GTIN
- 7070701007717
- Sales unit
- pcs
- Model
- Heat-shrink
- Halogen free
- Yes
- Suitable for
- H07RN-F
- Number of conductors
- 4
- Insulating material
- Plastic
- Mining sector approval
- No
- With concentric shielding
- No
- Nominal cross section conductor
- 1.5–10 mm²
- For connection of paper- with plastic insulated cables
- No
- Connection accessories included
- None
- Rated voltage U0/U (Um)
- 0.6/1 (1.2) kV
- Country of origin
- Denmark
Standards & Compliance
- HS Code
- 8547.20
Cross References
- EAN 7070701007717
- SAP 1000008171
- Code 865686
Product Documentation
More from Melbye
Melbye
Eye screw
B2
Melbye
Melbye A0,5-10ET Insulated Wire-End Ferrule, 0.5 mm² / 10 mm (Orange)
Melbye
RING Terminal ISO A2510R BLUE
Melbye
ENDEH. ISO A1-10 ET Yellow
Melbye
Operating Rod 16KV 4,5M (8872711)
Melbye
Melbye SS-3 Heat-Shrink Cable Joint, 3-Core 16-50 mm², 0.6/1 kV
Melbye
Sealing Compound 170G/ML
M-G 170G/ML
Melbye
Melbye Screw Splice Sleeve, 1–36 kV, Al/Cu 35–150 mm² (C35-150)
1-36kV C35-150 Al/Cu
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 4X1,5-10 SMH4G?
- 4X1,5-10 SMH4G can be ordered from cballast.com as a Melbye catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Melbye product?
- The manufacturer part number is 4X1,5-10 SMH4G.
- What is the HS code for 4X1,5-10 SMH4G?
- The customs tariff (HS) code for 4X1,5-10 SMH4G is 8547.20.
- Who manufactures 4X1,5-10 SMH4G?
- 4X1,5-10 SMH4G is a Melbye product in the Cables & Wiring range.
- Is a datasheet available for 4X1,5-10 SMH4G?
- Yes — the 4X1,5-10 SMH4G datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 4X1,5-10 SMH4G?
- The minimum order quantity is 1.
- Is 4X1,5-10 SMH4G available?
- Yes — 4X1,5-10 SMH4G is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
