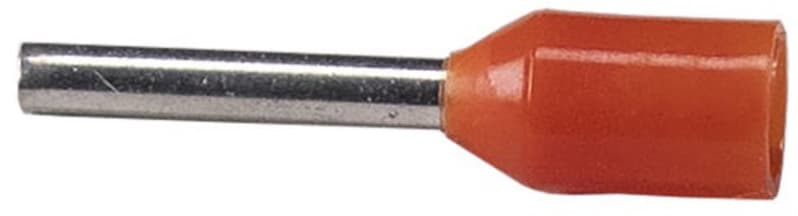

Melbye A0,5-10ET Insulated Wire-End Ferrule, 0.5 mm² / 10 mm (Orange)
Pricing
Request a quote
We reply within 24 hours
Product Description
Melbye A0,5-10ET — insulated wire-end ferrule (cord-end sleeve) for a 0.5 mm² stranded copper conductor, 10 mm crimp length. Insulation colour-coded Orange per DIN 46228-4. Tin-plated electrolytic copper barrel with a orange insulating collar, to DIN 46228-4; crimped to fine-stranded copper conductors (IEC 60228) for terminal-block and connector terminations.
Technical Specifications
- Product type
- Insulated wire-end ferrule (cord-end sleeve)
- Conductor cross-section
- 0.5 mm²
- Crimp length
- 10 mm
- Insulation collar Ø
- 2.6 mm
- Insulation colour code
- Orange
- Material
- Tin-plated electrolytic copper, insulated collar
- Standard
- DIN 46228-4
- Manufacturer part number (MPN)
- A0,5-10ET
- EAN / GTIN
- 7070701015903
- HS code
- 8536.90
- Sales unit
- pcs
- Colour
- Orange
- Sleeve length
- 10 mm
- Insulated
- Yes
- Halogen free
- No
- Surface protection
- Tinned
- Total length
- 16 mm
- Construction type
- Standard
- Nominal cross section
- 0.5 mm²
- For cables resistant to short circuit
- No
- Reel/roll packaging
- No
- With identification flag
- No
- AWG size
- 20
- Country of origin
- Taiwan
Standards & Compliance
- Standard
- DIN 46228-4
- Material
- Tin-plated electrolytic copper, insulated collar
- HS Code
- 8536.90
Cross References
- EAN 7070701015903
- SAP 1000039383
- Code 8751965
