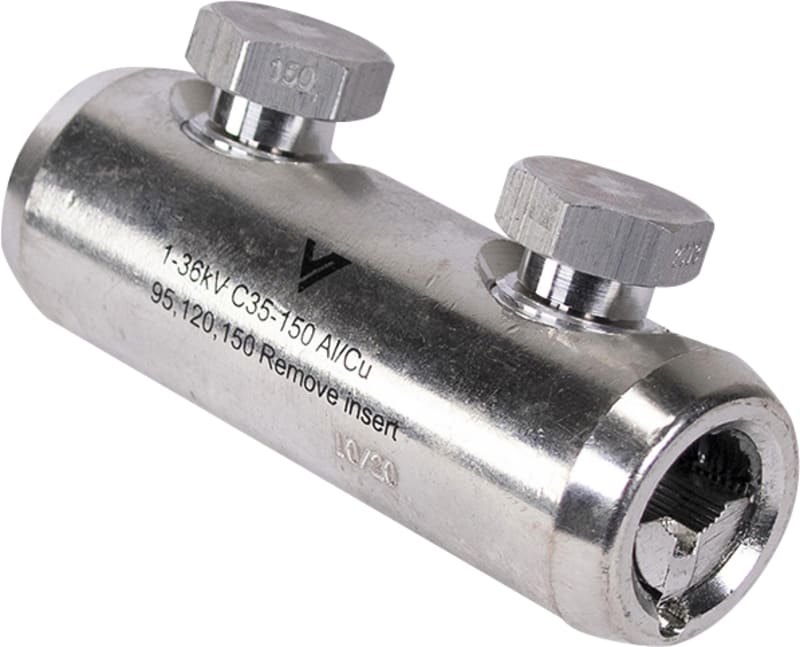

Melbye Screw Splice Sleeve, 1–36 kV, Al/Cu 35–150 mm² (C35-150)
Pricing
Request a quote
We reply within 24 hours
Product Description
Two-screw mechanical shear-bolt splice sleeve for jointing aluminium or copper conductors from 35 to 150 mm² at system voltages up to 36 kV. Includes central oil-stop barrier and tinned finish. Suited to solid, stranded and sector-shaped medium-voltage cable conductors when used with the appropriate insulating kit.
Technical Specifications
- Manufacturer part number (MPN)
- 1-36kV C35-150 Al/Cu
- EAN / GTIN
- 7070701349831
- Sales unit
- pcs
- Package quantity
- 140 pcs
- Surface protection
- Tinned
- Number of screws
- 2
- Oil stop/centre bar
- Yes
- Conductor material
- Aluminium/copper
- Voltage level
- Up to 36 kV
- Degree of protection (IP)
- IP00
- Nominal cross section copper, RM
- 35–120 mm²
- Nominal cross section copper, RE
- 35–150 mm²
- Nominal cross section copper, SM
- 35–120 mm²
- Nominal cross section aluminium, RM
- 35–150 mm²
- Nominal cross section aluminium, RE
- 35–150 mm²
- Nominal cross section aluminium, SM
- 35–120 mm²
- Nominal cross section aluminium, SE
- 35–95 mm²
- Material conductor
- Aluminium/copper
- With soldering hole
- No
- With insulation
- No
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7070701349831
- SAP 1200524243
- Code 82675944
Product Documentation
