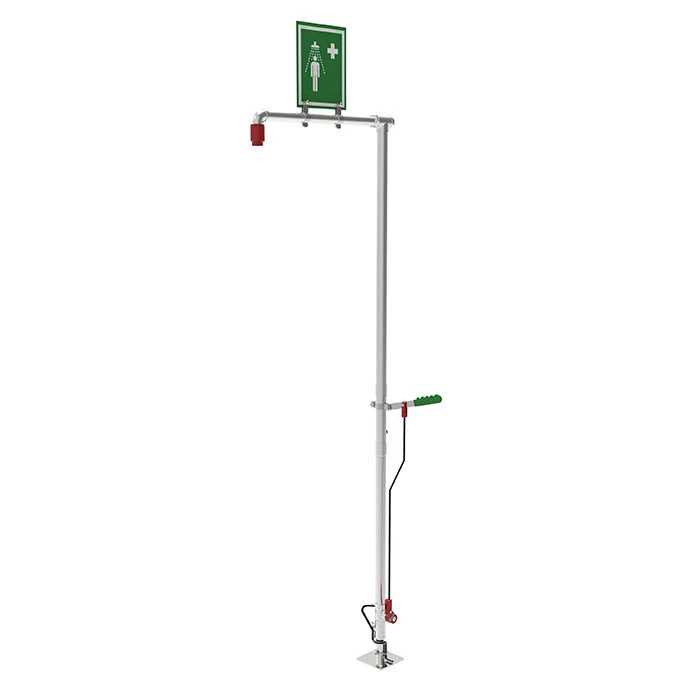

Floor Mount, Self-Draining Hughes Drench Shower, Stainless Steel Pipe - SD18GS

Use self-draining showers in hot climates to prevent the risk of shock and scalding from standing water overheated by solar radiation. Self-draining valve is situated directly above the water inlet and bleed pipe is fitted above this so hot water drains into the ground. The standpipe only fills with water when the shower is activated and drains once again when valve is closed, preventing stagnant water in the standpipe overheating and removing the risk of further injury to the operator. The syst

Manufacturer part number (MPN)

SD18GS Brand: Justrite Category: Tools Net Weight, lbs: 33.1 Net Weight, kg: 15 Dimensions, Exterior: 101.7" H x 16" W x 29.5" D (2584mm H x 408mm W x 408mm D) Height Without Sign, inches: 89.3 Height Without Sign, mm: 2269 UL Classified to ANSI Z358.1-2014: Yes Water Inlet Size NPT: 1-1/4 in (F) minimum Operating Pressure: 1.5 bar g, 22 PSI Maximum Operating Pressure: 6 bar g, 87 PSI Water Flow Shower/Body Liters/min: 76 Water Flow Shower/Body US Gal/min: 20 material Specifications: Nozzle: Nylon 6 Operating Valve material: 316L Stainless Mounting Type: Floor Pipework material: Stainless Steel Activation Method: Pull Handle minimum Ambient Temperature, °F: 41 minimum Ambient Temperature, °C: 5 Maximum Ambient Temperature, °F: 113 Maximum Ambient Temperature, °C: 45 UPC: 805042000397

HS Code

8424.89

• OEM-URL https://www.justrite.com/drench-shower-self-draining-floor-mount-stainless-steel-pipe-sd18gs
