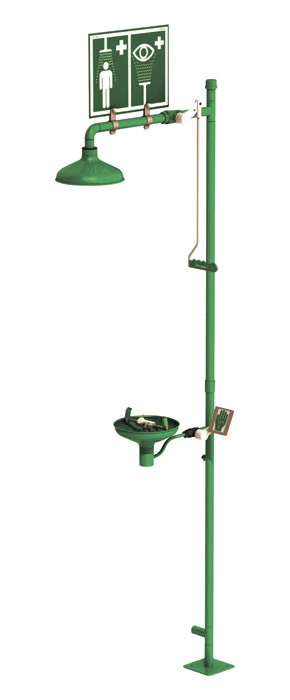

Floor Mount, Open ABS Bowl, Laboratory Hughes Combination Shower, Stainless Steel Pipe - L18GS34G

Ideal for laboratories, schools and general light duty indoor use, this floor mounted emergency combination shower is suitable for use in applications that are not subject to the possibility of freezing or overheating. The system features specially designed valves with low operating torque offering reliable, easy on/off operation when emergencies occur. Valve includes an integral, heavy-duty stainless steel stop-plate to handle rough operation without failure. Low operating torque offers reliabl

Manufacturer part number (MPN)

L18GS34G Brand: Justrite Category: Tools Color: Green Net Weight, lbs: 33.1 Net Weight, kg: 15 Dimensions, Exterior: 101" H x 12.6" W x 32.7" D (2566mm H x 319mm W x 319mm D) Height Without Sign, inches: 91.5 Height Without Sign, mm: 2324 UL Classified to ANSI Z358.1-2014: Yes Water Inlet Size NPT: 1 in (M) minimum Operating Pressure: 2 bar g, 29 PSI Maximum Operating Pressure: 6 bar g, 87 PSI Water Flow Shower/Body Liters/min: 76 Water Flow Shower/Body US Gal/min: 20 Water Flow Eye/Face Liters/min: 11.4 Water Flow Eye/Face US Gal/min: 3 material Specifications: Rose: Powder coated stainless steel, Eye/facewash diffusers: Chrome plated brass with stainless steel mesh. Operating Valve material: 316L Stainless Eye/Face Wash Bowl material: Powder-Coated Stainless Steel Mounting Type: Floor Pipework material: Stainless Steel Activation Method: Shower: Pull Handle, Eye/Face wash: Push Plate Eye/Face Wash Bowl Interior Dimensions: 10.25" W x 10.25" D Rose Diameter, inches: 10 Rose Diameter, mm: 254 minimum Ambient Temperature, °F: 41 minimum Ambient Temperature, °C: 5 Maximum Ambient Temperature, °F: 95 Maximum Ambient Temperature, °C: 35 UPC: 805042000373
