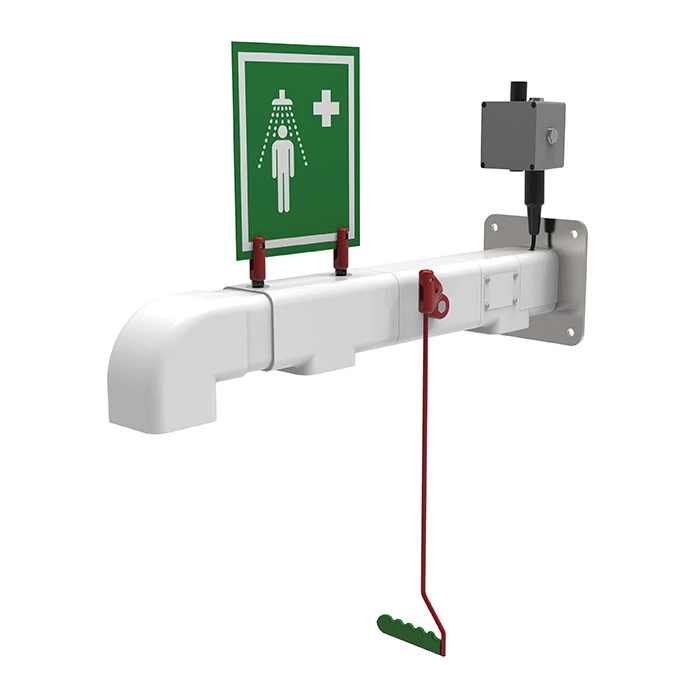

Wall Mount, Freeze Protected Hughes Drench Shower, Stainless Steel Pipe, 240V - H2GS-2H

This freeze protected and insulated drench shower is intended for use where there is a possibility of the water inside of the shower freezing due to extreme cold climates. It features trace tape heating with polyethylene jacket and polyurethane foam insulation to improve frost protection and strength.Ideal for use where space is at a premium, this wall mounted emergency drench shower features a specially designed, high-performance quarter-turn ball valve made of 316L stainless steel to endure th

Manufacturer part number (MPN)

H2GS-2H Brand: Justrite Category: Tools Color: White Net Weight, lbs: 26.5 Net Weight, kg: 12 Dimensions, Exterior: 38.1" H x 10" W x 36.4" D (969mm H x 254mm W x 254mm D) Height Without Sign, inches: 35.4 Height Without Sign, mm: 900 Water Inlet Size NPT: 1 in (F) minimum Operating Pressure: 1.5 bar g, 22 PSI Maximum Operating Pressure: 6 bar g, 87 PSI Water Flow Shower/Body Liters/min: 76 Water Flow Shower/Body US Gal/min: 20 material Specifications: Polyurethane foam insulation with a medium density polyethylene impact resistant outer casing, Nozzle: Nylon 6 Operating Valve material: 316L Stainless Mounting Type: Wall Pipework material: Stainless Steel Activation Method: Pull Handle minimum Ambient Temperature, °F: -4 minimum Ambient Temperature, °C: -20 Maximum Ambient Temperature, °F: 95 Maximum Ambient Temperature, °C: 35 Electrical Equipment Classification: Class 1 Division 2, Gas Groups C & D, Temperature Code T3 Electrical Supply: 240 VAC, Single Phase, 60/50 Hz Heating Type: Trace Tape Heated and Pre-Insulated Heating Load, Watts: 12 UPC: 805042000472

HS Code

8424.89

• OEM-URL https://www.justrite.com/drench-shower-freeze-protected-wall-mount-stainless-steel-pipe-240v-class-1-division-2-rated-h2gs-2h
