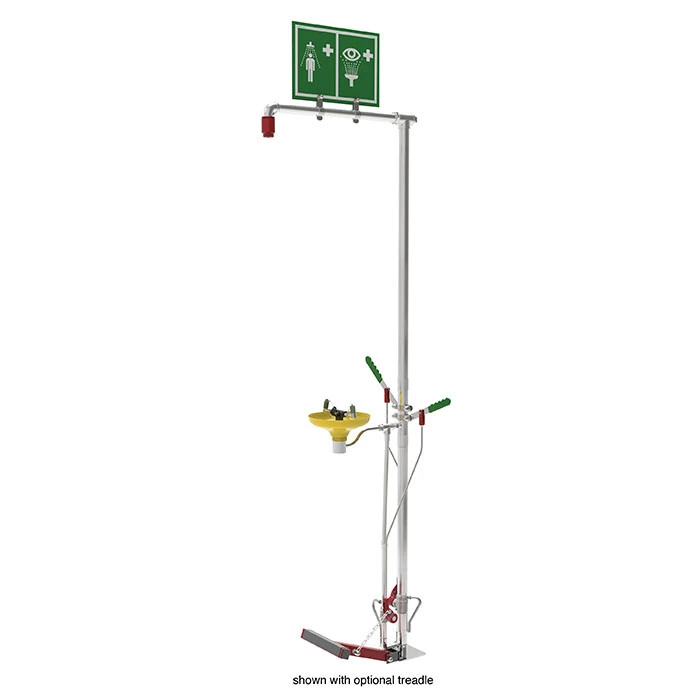

Floor Mount, Open ABS Bowl, Self-Draining Hughes Combination Shower, Stainless Steel Pipe - SD18GS75G

Use self-draining showers in hot climates to prevent the risk of shock and scalding from standing water overheated by solar radiation. Self-draining valve is situated directly above the water inlet and bleed pipe is fitted above this so hot water drains into the ground. The standpipe only fills with water when the shower is activated and drains once again when valve is closed, preventing stagnant water in the standpipe overheating and removing the risk of further injury to the operator. The syst

Manufacturer part number (MPN)

SD18GS75G Brand: Justrite Category: Tools Net Weight, lbs: 35.3 Net Weight, kg: 16 Dimensions, Exterior: 101.7" H x 25.8" W x 29.5" D (2584mm H x 654mm W x 654mm D) Height Without Sign, inches: 89.2 Height Without Sign, mm: 2265 UL Classified to ANSI Z358.1-2014: Yes Water Inlet Size NPT: 1-1/4 in (F) minimum Operating Pressure: 2 bar g, 29 PSI Maximum Operating Pressure: 6 bar g, 87 PSI Water Flow Shower/Body Liters/min: 76 Water Flow Shower/Body US Gal/min: 20 Water Flow Eye/Face Liters/min: 11.4 Water Flow Eye/Face US Gal/min: 3 material Specifications: Nozzle: Nylon 6, Eye/facewash diffusers: Chrome plated brass with stainless steel mesh. Operating Valve material: 316L Stainless Eye/Face Wash Bowl material: ABS Plastic Mounting Type: Floor Pipework material: Stainless Steel Activation Method: Shower: Hand lever, Eye/Face wash: Hand lever Eye/Face Wash Bowl Interior Dimensions: 9.75" W x 9.75" D minimum Ambient Temperature, °F: 41 minimum Ambient Temperature, °C: 5 Maximum Ambient Temperature, °F: 113 Maximum Ambient Temperature, °C: 45 UPC: 805042000410
