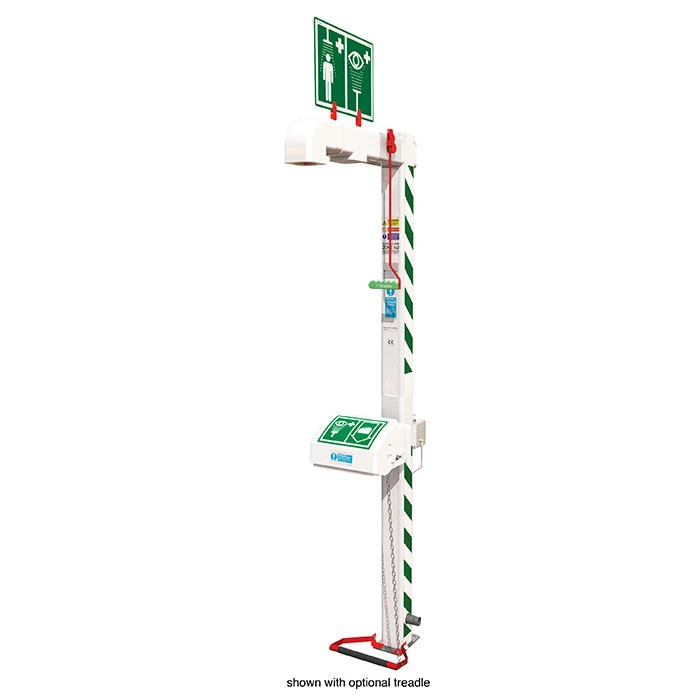

Floor Mount, Closed ABS Bowl, Freeze Protected Hughes Combination Shower, Stainless Steel Pipe, 240V - H5GS45G-2H

This freeze protected and insulated shower is intended for use where there is a possibility of the water inside of the shower freezing due to extreme cold climates. It features trace tape heating with polyethylene jacket and polyurethane foam insulation to improve frost protection and strength.This floor mounted emergency combination shower features a specially designed, high-performance quarter-turn ball valve made of 316L stainless steel to endure the harshest environments and site conditions.

Manufacturer part number (MPN)

H5GS45G-2H Brand: Justrite Category: Tools Color: White Net Weight, lbs: 55.1 Net Weight, kg: 25 Dimensions, Exterior: 104.5" H x 14.7" W x 35.2" D (2654mm H x 375mm W x 375mm D) Height Without Sign, inches: 91.6 Height Without Sign, mm: 2327 Water Inlet Size NPT: 1-1/4 in (M) minimum Operating Pressure: 2 bar g, 29 PSI Maximum Operating Pressure: 6 bar g, 87 PSI Water Flow Shower/Body Liters/min: 76 Water Flow Shower/Body US Gal/min: 20 Water Flow Eye/Face Liters/min: 11.4 Water Flow Eye/Face US Gal/min: 3 material Specifications: Polyurethane foam insulation with a medium density polyethylene impact resistant outer casing, Nozzle: Nylon 6, Eye/facewash diffusers: Chrome plated brass with stainless steel mesh. Operating Valve material: Shower Valve: 316L Stainless, Eye Wash Valve: Chrome plated brass, Nozzle: Nylon 6 Red Eye/Face Wash Bowl material: Acrylic-Capped ABS Plastic Mounting Type: Floor Pipework material: Stainless Steel Activation Method: Shower: Pull Handle, Eye/Face wash: Pull Lid Forward Eye/Face Wash Bowl Interior Dimensions: 9.5" W x 8" D minimum Ambient Temperature, °F: -4 minimum Ambient Temperature, °C: -20 Maximum Ambient Temperature, °F: 95 Maximum Ambient Temperature, °C: 35 Electrical Equipment Classification: Class 1 Division 2, Gas Groups C & D, Temperature Code T3 Electrical Supply: 240 VAC, Single Phase, 60/50 Hz Heating Type: Trace Tape Heated and Pre-Insulated Heating Load, Watts: 57 UPC: 805042000595
