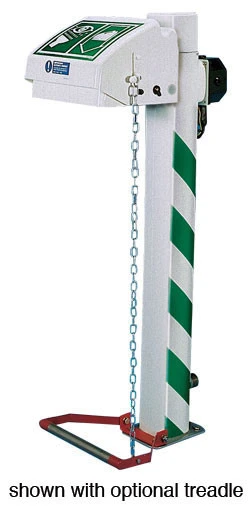

Pedestal Mount, Closed ABS Bowl, Hughes Eye/Face Wash, Freeze Protected, Galvanized Pipe, 120V C1D2 - H45GP-1H

This freeze protected and insulated eye/face wash is intended for use where there is a possibility of the water freezing due to extreme cold climates. Pedestal-mounted eye/face wash unit, designed at ANSI-compliant height, is generally located in open areas away from walls. These freeze protected models are trace-tape heated and insulated, suitable for use in both Class 1 Division 2 hazardous areas, as well as non-hazardous areas. Made of durable, corrosion-resistant acrylic capped ABS, the eye/

Manufacturer part number (MPN)

H45GP-1H Brand: Justrite Category: Tools Color: White Net Weight, lbs: 30.9 Net Weight, kg: 14 Dimensions, Exterior: 48.1" H x 14.8" W x 24.9" D (1223mm H x 375mm W x 375mm D) Water Inlet Size NPT: 1-1/4 in (M) minimum Operating Pressure: 2 bar g, 29 PSI Maximum Operating Pressure: 6 bar g, 87 PSI Water Flow Eye/Face Liters/min: 11.4 Water Flow Eye/Face US Gal/min: 3 Operating Valve material: Chrome plated brass Eye/Face Wash Bowl material: Acrylic-Capped ABS Plastic Mounting Type: Pedestal Pipework material: Galvanized Steel Activation Method: Pull Down on Lid minimum Ambient Temperature, °F: -4 minimum Ambient Temperature, °C: -20 Maximum Ambient Temperature, °F: 95 Maximum Ambient Temperature, °C: 35 Electrical Equipment Classification: Class 1 Division 2, Gas Groups C & D, Temperature Code T3 Electrical Supply: 120 VAC, Single Phase, 60/50 Hz Heating Type: Trace Tape Heated and Pre-Insulated Heating Load, Watts: 36 UPC: 805042000489

HS Code

8424.89
