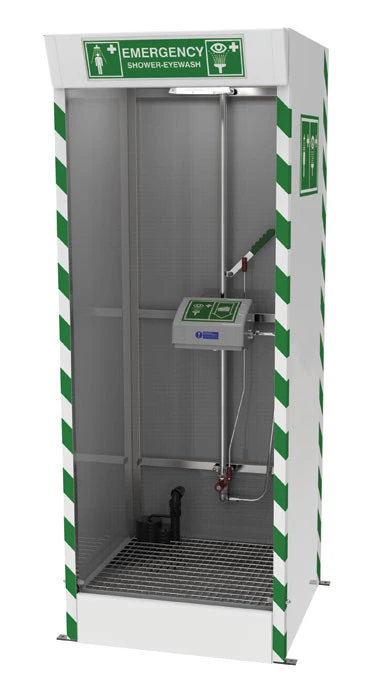

Covered ABS Eye and Fash Wash, Hughes Emergency Cubicle Shower, Sump Pump, 120V - SD32K45G-PUMP
Pricing
Request a quote
We reply within 24 hours
Product Description
Designed for locations where space is at a premium or the emergency safety shower needs to be enclosed, this all-in-one ANSI-compliant combination cubicle shower and eye/face wash helps prevent overspray and is activated by hand upon entry. The cubicle shower has a stainless steel hollow section frame enclosed in GRP sheeting with stainless steel pipes for corrosion resistance and extended life. The exterior sheeting includes universal pictogram signs and green and white safety stripes. Sump pum
Technical Specifications
- Manufacturer part number (MPN)
- SD32K45G-PUMP Brand: Justrite Category: Tools Color: White Net Weight, lbs: 270 Net Weight, kg: 123 Dimensions, Exterior: 94.8" H x 39.2" W x 41.8" D (2408mm H x 995mm W x 995mm D) Water Inlet Size NPT: 1 in (M) minimum Operating Pressure: 2 bar g, 29 PSI Maximum Operating Pressure: 6 bar g, 87 PSI Water Flow Shower/Body Liters/min: 76 Water Flow Shower/Body US Gal/min: 20 Water Flow Eye/Face Liters/min: 11.4 Water Flow Eye/Face US Gal/min: 3 material Specifications: Stainless Steel Frame with GRP Paneling Operating Valve material: Shower: 316L Stainless, Eyewash: Chrome plated brass Eye/Face Wash Bowl material: Acrylic-Capped ABS Plastic Mounting Type: Floor Pipework material: Stainless Steel Activation Method: Shower: Pull Lever, Eye/Face wash: Pull Lid Forward Eye/Face Wash Bowl Interior Dimensions: 9.5" W x 8" D Rose Diameter, inches: 10 Rose Diameter, mm: 254 minimum Ambient Temperature, °F: 41 minimum Ambient Temperature, °C: 5 Maximum Ambient Temperature, °F: 95 Maximum Ambient Temperature, °C: 35 Electrical Equipment Classification: General Purpose Electrical Supply: 120 VAC, Single Phase, 60 Hz UPC: 805042000809
Cross References
- OEM-URL https://www.justrite.com/emergency-cubicle-shower-shower-and-covered-abs-eyeface-wash-strip-screens-hand-activated-sump-pump-120v-general-purpose-sd32k45g-pump
Product Documentation
