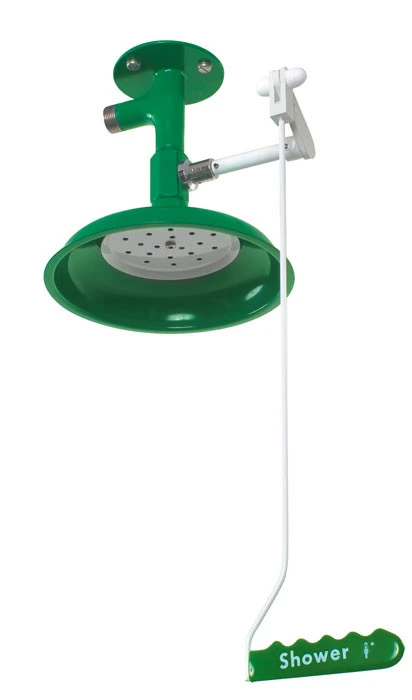

Ceiling Mount, Laboratory Hughes Drench Shower, Stainless Steel Pipe - L23GSV
Pricing
Request a quote
We reply within 24 hours
Product Description
Ideal for laboratories, schools and general light duty indoor use where space is at a premium, this ceiling mounted emergency drench shower is suitable for use in applications that do not require an eye wash and are not subject to the possibility of freezing or overheating. The system features a specially designed valve with low operating torque offering reliable, easy on/off operation when emergencies occur. Valve includes an integral, heavy-duty stainless steel stop-plate to handle rough opera
Technical Specifications
- Manufacturer part number (MPN)
- L23GSV Brand: Justrite Category: Tools Color: Green Net Weight, lbs: 11 Net Weight, kg: 5 Dimensions, Exterior: 28.5" H x 16.3" W x 10.9" D (724mm H x 414mm W x 414mm D) UL Classified to ANSI Z358.1-2014: Yes Water Inlet Size NPT: 1 in (M) minimum Operating Pressure: 1.5 bar g, 22 PSI Maximum Operating Pressure: 6 bar g, 87 PSI Water Flow Shower/Body Liters/min: 76 Water Flow Shower/Body US Gal/min: 20 material Specifications: Rose: Powder coated stainless steel Operating Valve material: 316L Stainless Mounting Type: Ceiling Pipework material: Stainless Steel Activation Method: Pull Handle Rose Diameter, inches: 11 Rose Diameter, mm: 280 minimum Ambient Temperature, °F: 41 minimum Ambient Temperature, °C: 5 Maximum Ambient Temperature, °F: 95 Maximum Ambient Temperature, °C: 35 UPC: 805042000342
Standards & Compliance
- HS Code
- 8424.89
Cross References
- OEM-URL https://www.justrite.com/laboratory-drench-shower-ceiling-mount-stainless-steel-pipe-l23gsv
Product Documentation
More from Justrite
Justrite
Floor Mount, Open Stainless Steel Bowl, Self-Draining Hughes Combination Shower, Galvanized Pipe - SD18G85G
Justrite
Wall Mount, Freeze Protected Hughes Drench Shower, Galvanized Pipe, 120V - H2G-1H
Justrite
Floor Mount, Open ABS Bowl, Laboratory Hughes Combination Shower, Stainless Steel Pipe - L18GS34G
Justrite
Wall Mount, Freeze Protected Hughes Drench Shower, Stainless Steel Pipe, 120V - H2GS-1H
Justrite
Wall Mount, Freeze Protected Hughes Drench Shower, Stainless Steel Pipe, 240V - H2GS-2H
Justrite
Wall Mount, Freeze Protected Hughes Drench Shower, Galvanized Pipe, 240V - H2G-2H
Justrite
Covered ABS Eye and Fash Wash, Hughes Emergency Cubicle Shower, Sump Pump, 120V - SD32K45G-PUMP
Justrite
Pedestal Mount, Closed ABS Bowl, Hughes Eye/Face Wash, Freeze Protected, Galvanized Pipe, 240V C1D2 - H45GP-2H
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy L23GSV?
- L23GSV can be ordered from cballast.com as a Justrite catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Justrite product?
- The manufacturer part number is L23GSV.
- What is the HS code for L23GSV?
- The customs tariff (HS) code for L23GSV is 8424.89.
- Who manufactures L23GSV?
- L23GSV is a Justrite product in the Safety & Detection range.
- Is a datasheet available for L23GSV?
- Yes — the L23GSV datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for L23GSV?
- The minimum order quantity is 1.
- Is L23GSV available?
- Yes — L23GSV is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
