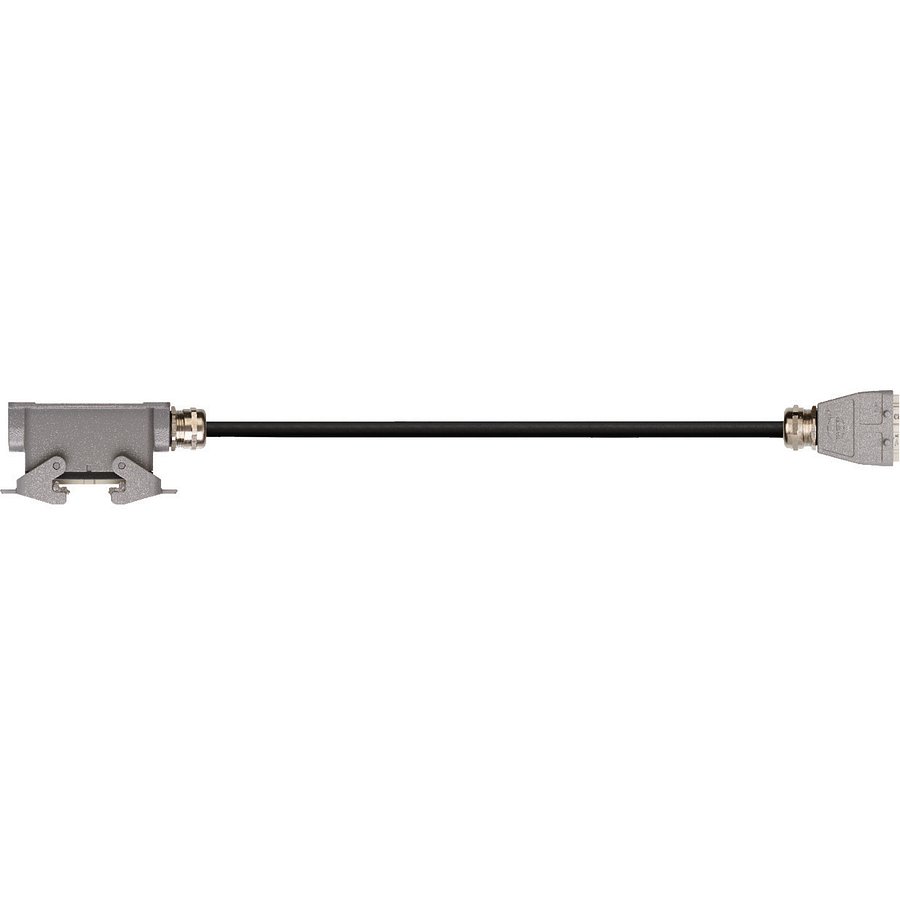

readycable® pulse coder cable Fanuc M-900IB / R-200IC RP1.2 extension cable 7TH axis

igus readycable® pulse coder cable Fanuc M-900IB / R-200IC RP1.2 extension cable 7TH axis (part number MAT904117143) is listed under Safety & Detection / Tools. Copper index kg/km: 422 kg/km; Core group 1 core structure: 5x(4x0.25); Core group 2 core structure: 10x(3x0.75); Shipping weight (kg or kg/m): 1.060533; Outer diameter (d) max. mm: 26.5 mm; Weight per km: 877 kg/km.

Manufacturer part number (MPN)

MAT904117143

Brand

IGUS

Category

Tools

Manufacturer name

RP1.2

Number of cores and conductor nominal cross-section

(5x(4x0.25)+10x(3x0.75))C

Copper index kg/km

422 kg/km

Core group 1 core structure

5x(4x0.25)

Core group 1 colour code

(blue/violet/brown/green), (grey/violet/yellow/brown), (grey/blue/brown/green), (grey/blue/green/yellow), (green/violet/brown/yellow)

Core group 2 core structure

10x(3x0.75)

Shipping weight (kg or kg/m)

1.060533

Outer diameter (d) max. mm

26.5 mm

Weight per km

877 kg/km

Min. bend radius, e-chain (factor)

10 x d

Min. bend radius, e-chain

265 mm

Min. bend radius, flexible (factor)

8 x d

Min. bend radius, flexible

212 mm

Min. bend radius, fixed (factor)

5 x d

Min. bend radius, fixed

132.5 mm

Temperature e-chain®

-25°C up to +80°C

Temperature, flexible

-40°C to +80°C (according to DIN EN 60811-504)

Temperature, fixed

-50°C to +80°C (according to DIN EN 50305)

v max. unsupported (speed)

3 m/s

v max. gliding (speed)

2 m/s

a max. (acceleration)

20 m/s²

torsion

No Torsion

Conductor

Finely stranded conductor consisting of bare copper wires (according to DIN EN 60228).

Core insulation

Mechanically high-quality TPE mixture.

Inner jacket

TPE mixture adapted to suit the requirements in e-chains®.

Overall shield

Bend-resistant braiding made of tinned copper wires. Coverage approx. 50% linear, approx. 80% optical

Outer jacket

Low-adhesion, halogen-free, highly abrasion-resistant PUR mixture, adapted to suit the requirements in e-chains® (according to DIN EN 50363-10-2).

Outer jacket colour

Jet black (comparable to RAL 9005)

Nominal voltage

600/1,000V (according to DIN VDE 0298-3)

Test voltage

4000V (according to DIN EN 50395)

UV resistance

High

Oil resistance

Oil-resistant (according to DIN EN 50363-10-2), Class 3

Silicone-free

Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)

Halogen-free

According to DIN EN 60754

EAC

Certificate No. RU C-DE.ME77.B.00302/19

REACH

In accordance with Regulation (EC) No. 1907/2006 (REACH)

CE

According to 2014/35/EU

UL verified

Certificate no. B129699: "igus 36-month chainflex cable guarantee and service life calculator based on 2 billion test cycles per year"

Flame-retardant

According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame

NFPA

According to NFPA 79-2018, chapter 12.9

Offshore

MUD-resistant according to NEK 606 - status 2018

HS Code

8544.42
