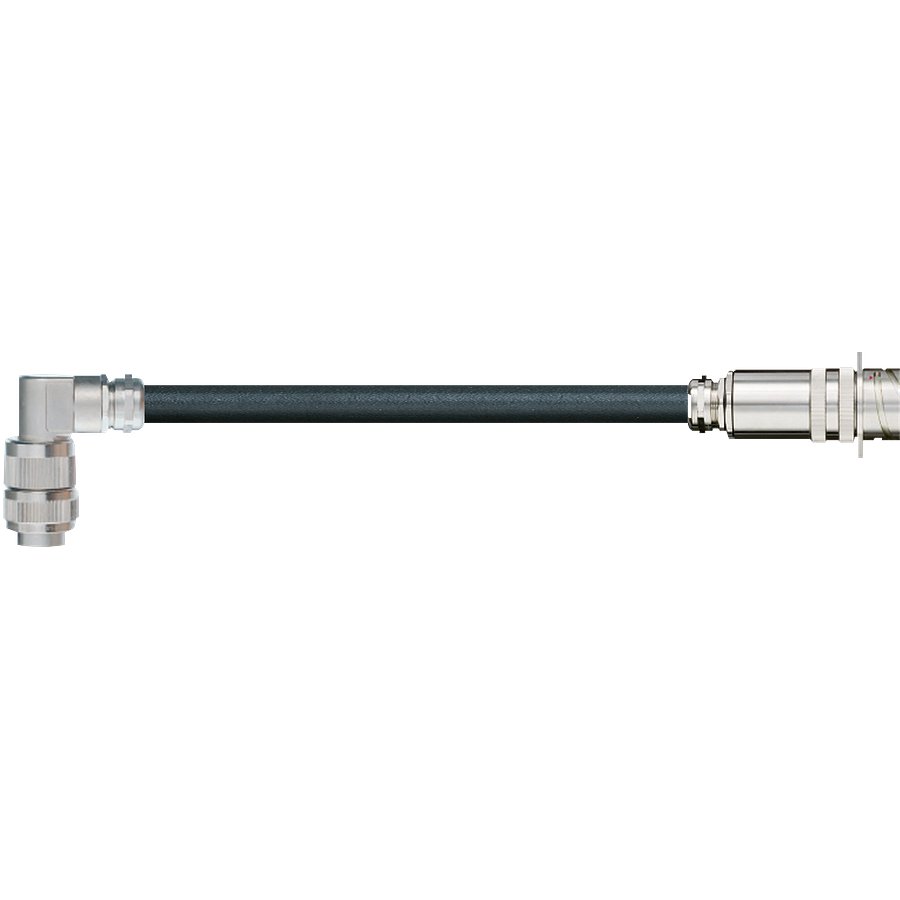

readycable® harnessed signal cable for ABB robots, R1.SMB, PUR, 7.5 x d (MAT904128540)
Pricing
Request a quote
We reply within 24 hours
Overview
igus readycable® harnessed signal cable for ABB robots, R1.SMB, PUR, 7.5 x d (MAT904128540) is listed under Safety & Detection / Tools. Copper index kg/km: 62 kg/km; Stranding type: Twisted Pair; Shipping weight (kg or kg/m): 0.15715; Outer diameter (d) max. mm: 9 mm; Weight per km: 102 kg/km; Min. bend radius, e-chain: 67.5 mm.
Technical Specifications
- Manufacturer part number (MPN)
- R1.SMB
- Brand
- IGUS
- Category
- Tools
- Number of cores and conductor nominal cross-section
- (6x(2x0.25))C
- Copper index kg/km
- 62 kg/km
- Stranding type
- Twisted Pair
- Shipping weight (kg or kg/m)
- 0.15715
- Outer diameter (d) max. mm
- 9 mm
- Weight per km
- 102 kg/km
- Min. bend radius, e-chain (factor)
- 7.5 x d
- Min. bend radius, e-chain
- 67.5 mm
- Min. bend radius, flexible (factor)
- 6 x d
- Min. bend radius, flexible
- 54 mm
- Min. bend radius, fixed (factor)
- 4 x d
- Min. bend radius, fixed
- 36 mm
- Temperature e-chain®
- -25°C up to +80°C
- Temperature, flexible
- -40°C to +80°C (according to DIN EN 60811-504)
- Temperature, fixed
- -50°C to +80°C (according to DIN EN 50305)
- v max. unsupported (speed)
- 5 m/s
- v max. gliding (speed)
- 3 m/s
- a max. (acceleration)
- 50 m/s²
- travel length
- Unsupported travel distances and up to 100 m for gliding applications
- torsion
- No Torsion
- Conductor
- Very finely stranded special conductors of a particularly bend-resistant design, made of bare copper wires.
- Core insulation
- Mechanically high-quality TPE mixture.
- Core stranding
- Cores twisted in pairs with short pitch lengths, core pairs then wound with short pitch lengths.
- Overall shield
- Extremely flexible braiding made of tinned copper wires. Coverage linear approx. 70%, optical approx. 90%
- Outer jacket
- Low-adhesion, halogen-free, highly abrasion-resistant PUR mixture, adapted to suit the requirements in e-chains® (according to DIN EN 50363-10-2).
- Outer jacket colour
- Window grey (comparable to RAL 7040)
- Nominal voltage
- 300/300V (according to DIN VDE 0298-3)
- Test voltage
- 1500V (according to DIN EN 50395)
- UV resistance
- Medium
- Oil resistance
- Oil-resistant (according to DIN EN 50363-10-2), Class 3
- Silicone-free
- Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)
- Halogen-free
- According to DIN EN 60754
- EAC
- Certificate No. RU C-DE.ME77.B.00295/19
- REACH
- In accordance with Regulation (EC) No. 1907/2006 (REACH)
- Lead-free
- According to 2011/65/EU (RoHs-II/RoHS-III)
- Cleanroom
- According to ISO Class 1 The outer jacket material of this series complies with CF77.UL.05.12.D - tested by IPA according to standard DIN EN ISO 14644-1
- CE
- According to 2014/35/EU
- UL/CSA AWM
- val_ul_csa_75
- UL verified
- Certificate no. V293650: "The igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year“
- Flame-retardant
- According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame
- DNV
- Type approval certificate TAE00003X3
- NFPA
- According to NFPA 79-2018, chapter 12.9
- Offshore
- MUD-resistant according to NEK 606 - status 2018
- UKCA
- In accordance with the valid regulations of the United Kingdom (as of 08/2021)
Standards & Compliance
- HS Code
- 6307.90
Cross References
- OEM-URL https://www.igus.com/product/MAT904128540
Product Documentation
More from igus
igus
readycable® harnessed signal cable for ABB robots, R1.SMB, PUR, 7.5 x d
MAT904128541
igus
readycable® harnessed power cable for ABB robots, PUR, 10 x d (MAT904128539)
R1MP
igus
readycable® harnessed power cable for ABB robots, PUR, 10 x d (MAT904128542)
igus
readycable® harnessed power cable for ABB robots, PUR, 10 x d (MAT904128547)
igus

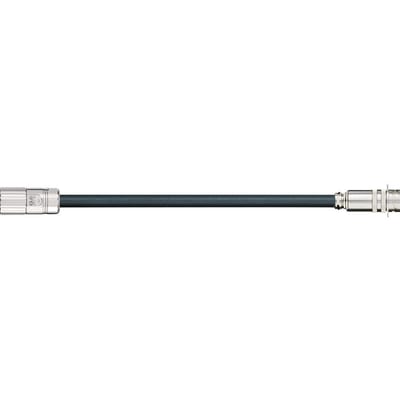

readycable® harnessed resolver cable for ABB robots, PUR, 7.5 x d
MAT904128548
igus

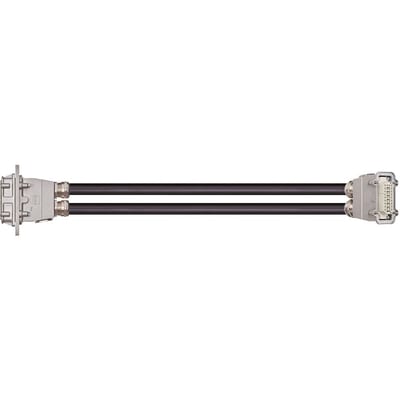

readycable® harnessed power cable for ABB robots, PUR, 10 x d (MAT904128543)
igus

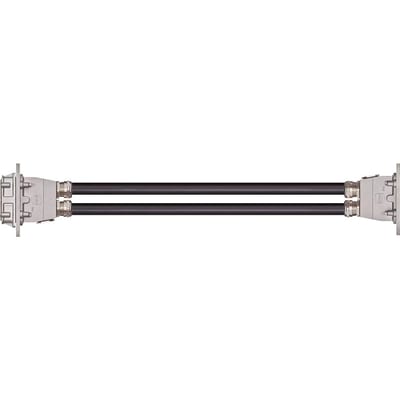

readycable® harnessed hybrid cable for ABB robots, PUR (MAT904141219)
