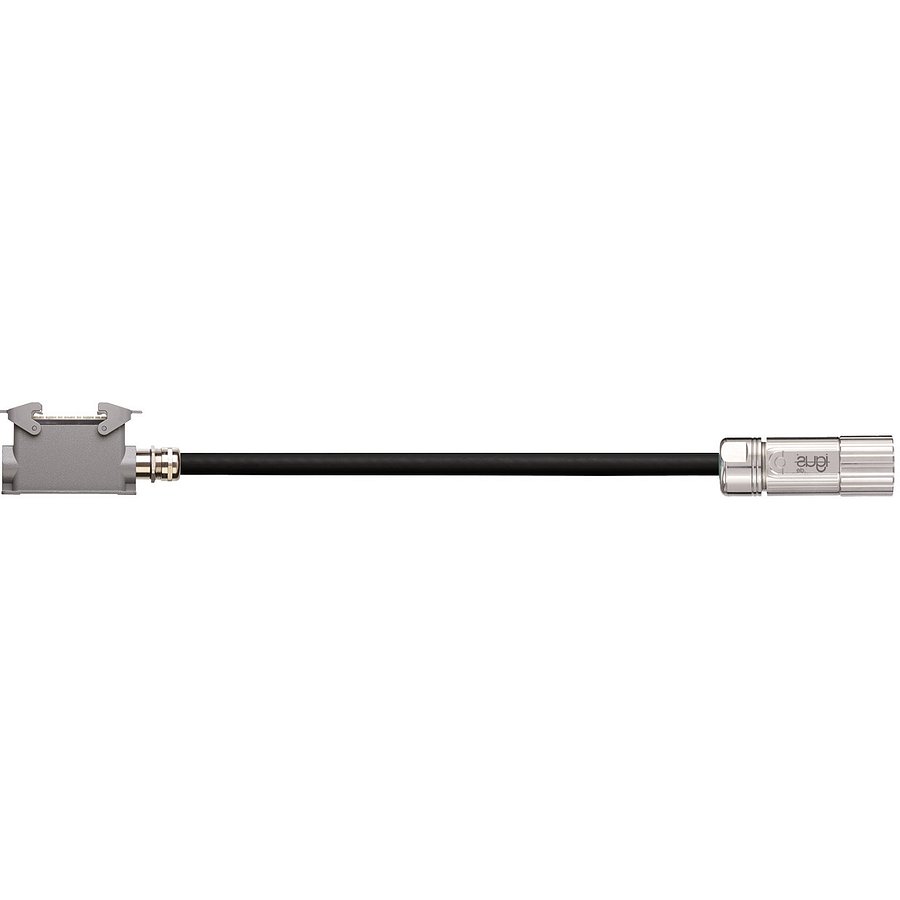

readycable® harnessed power cable for ABB robots, PUR, 10 x d (MAT904128547)
Pricing
Request a quote
We reply within 24 hours
Overview
igus readycable® harnessed power cable for ABB robots, PUR, 10 x d (MAT904128547) is listed under Safety & Detection / Tools. Copper index kg/km: 322 kg/km; Core group 1 core structure: 4G4; Core group 2 core structure: 2x(2x1.5)C; Shipping weight (kg or kg/m): 0.856107; Outer diameter (d) max. mm: 16.5 mm; Weight per km: 403 kg/km.
Technical Specifications
- Manufacturer part number (MPN)
- MAT904128547
- Brand
- IGUS
- Category
- Tools
- Number of cores and conductor nominal cross-section
- (4G4.0+2x(2x1.5)C)C
- Copper index kg/km
- 322 kg/km
- Core group 1 core structure
- 4G4
- Core group 2 core structure
- 2x(2x1.5)C
- Shipping weight (kg or kg/m)
- 0.856107
- Outer diameter (d) max. mm
- 16.5 mm
- Weight per km
- 403 kg/km
- Min. bend radius, e-chain (factor)
- 10 x d
- Min. bend radius, e-chain
- 165 mm
- Min. bend radius, flexible (factor)
- 8 x d
- Min. bend radius, flexible
- 132 mm
- Min. bend radius, fixed (factor)
- 5 x d
- Min. bend radius, fixed
- 82.5 mm
- Temperature e-chain®
- -25°C up to +80°C
- Temperature, flexible
- -40°C to +80°C (according to DIN EN 60811-504)
- Temperature, fixed
- -50°C to +80°C (according to DIN EN 50305)
- v max. unsupported (speed)
- 10 m/s
- v max. gliding (speed)
- 2 m/s
- a max. (acceleration)
- 50 m/s²
- travel length
- Travels up to 10 m
- torsion
- No Torsion
- Conductor
- Stranded conductor in an especially bend-resistant version consisting of bare copper wires (according to DIN EN 60228).
- Core insulation
- Mechanically high-quality, especially low-capacity XLPE mixture.
- Core stranding
- Power cores and control pair elements wound with a short pitch length around a high tensile strength centre element.
- Overall shield
- Bend-resistant braiding made of tinned copper wires. Coverage approx. 55% linear, approx. 80% optical
- Element shield
- Flexible braiding made of tinned copper wires.
- Outer jacket
- Low-adhesion, halogen-free, highly abrasion-resistant PUR mixture, adapted to suit the requirements in e-chains® (according to DIN EN 50363-10-2).
- Outer jacket colour
- Pastel orange (comparable to RAL 2003)
- Nominal voltage
- 600/1,000V (according to DIN VDE 0298-3)
- Test voltage
- 4000V (according to DIN EN 50395)
- UV resistance
- Medium
- Oil resistance
- Oil-resistant (according to DIN EN 50363-10-2), Class 3
- Silicone-free
- Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)
- Halogen-free
- According to DIN EN 60754
- EAC
- Certificate No. RU C-DE.ME77.B.00863/20
- REACH
- In accordance with Regulation (EC) No. 1907/2006 (REACH)
- Lead-free
- According to 2011/65/EU (RoHs-II/RoHS-III)
- CE
- According to 2014/35/EU
- UL/CSA AWM
- Style 30052 und 21209, 1000 V, 90°C
- UL verified
- Certificate no. V293650: "igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year"
- Flame-retardant
- According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame
- NFPA
- According to NFPA 79-2018, chapter 12.9
- Offshore
- MUD-resistant according to NEK 606 - status 2018
- UKCA
- In accordance with the valid regulations of the United Kingdom (as of 08/2021)
Standards & Compliance
- HS Code
- 6307.90
Cross References
- OEM-URL https://www.igus.com/product/MAT904128547
