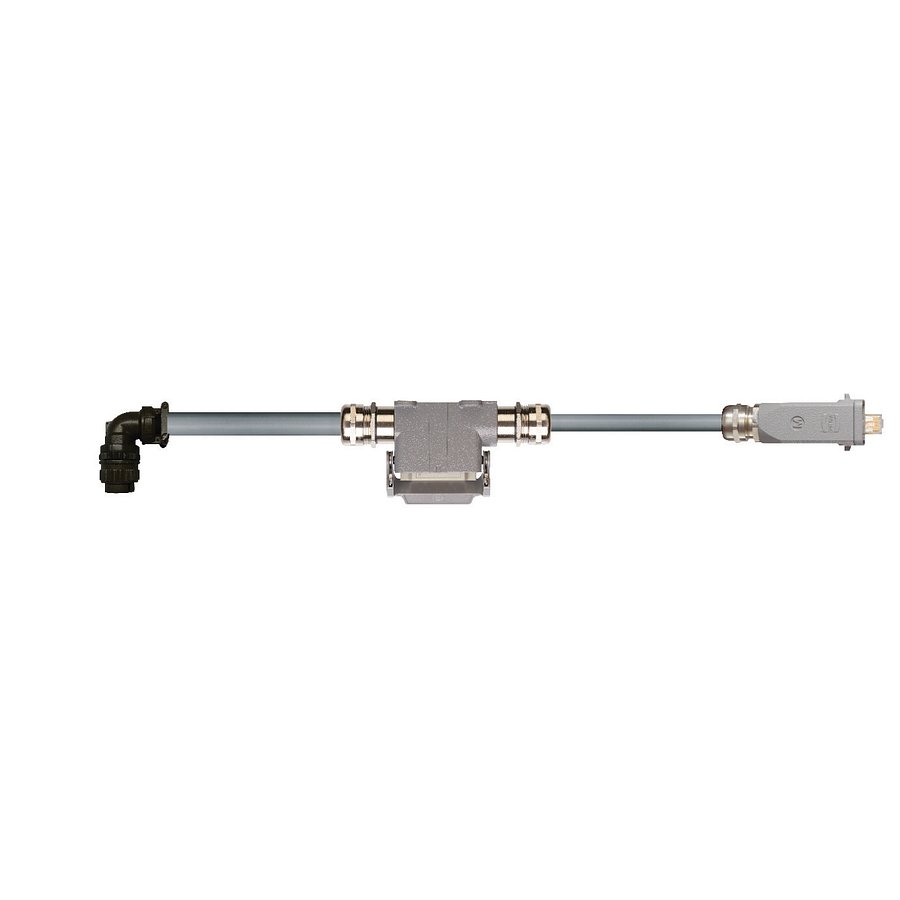

readycable® harnessed data cable, pulse encoder for Fanuc robot M-900IB, RP7.2 (MAT904117147)
Pricing
Request a quote
We reply within 24 hours
Overview
igus readycable® harnessed data cable, pulse encoder for Fanuc robot M-900IB, RP7.2 (MAT904117147) is listed under Safety & Detection / Tools. Connector A: HAN 3A, 4 poles; Connector B: HRS, angled, 10 poles; Copper index kg/km: 25 kg/km; Core group 1 core structure: (3 x 0.34)C; Shipping weight (kg or kg/m): 1.227991; Outer diameter (d) max. mm: 5 mm.
Technical Specifications
- Manufacturer part number (MPN)
- RP7.2
- Brand
- IGUS
- Category
- Tools
- Connector A
- HAN 3A, 4 poles
- Connector B
- HRS, angled, 10 poles
- Number of cores and conductor nominal cross-section
- (3x0.34)C
- Copper index kg/km
- 25 kg/km
- Core group 1 core structure
- (3 x 0.34)C
- Shipping weight (kg or kg/m)
- 1.227991
- Outer diameter (d) max. mm
- 5 mm
- Weight per km
- 47 kg/km
- Min. bend radius, e-chain (factor)
- 10 x d
- Min. bend radius, e-chain
- 50 mm
- Min. bend radius, flexible (factor)
- 8 x d
- Min. bend radius, flexible
- 40 mm
- Min. bend radius, fixed (factor)
- 5 x d
- Min. bend radius, fixed
- 25 mm
- Temperature e-chain®
- -25°C up to +80°C
- Temperature, flexible
- -40°C to +80°C (according to DIN EN 60811-504)
- Temperature, fixed
- -50°C to +80°C (according to DIN EN 50305)
- v max. unsupported (speed)
- 3 m/s
- v max. gliding (speed)
- 2 m/s
- a max. (acceleration)
- 20 m/s²
- travel length
- Travels up to 50 m
- torsion
- No Torsion
- Conductor
- Very finely stranded special conductors of a particularly bend-resistant design, made of bare copper wires.
- Core insulation
- Mechanically high-quality TPE mixture.
- Core stranding
- The individual cores are wound in layers with a short pitch length.
- Overall shield
- Extremely flexible braiding made of tinned copper wires. Coverage linear approx. 70%, optical approx. 90%
- Outer jacket
- Low-adhesion, halogen-free, highly abrasion-resistant PUR mixture, adapted to suit the requirements in e-chains® (according to DIN EN 50363-10-2).
- Outer jacket colour
- Window grey (comparable to RAL 7040)
- Nominal voltage
- 300/300V (according to DIN VDE 0298-3)
- Test voltage
- 1500V (according to DIN EN 50395)
- UV resistance
- Medium
- Oil resistance
- Oil-resistant (according to DIN EN 50363-10-2), Class 3
- Silicone-free
- Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)
- Halogen-free
- According to DIN EN 60754
- EAC
- Certificate No. RU C-DE.ME77.B.00300/19
- Lead-free
- According to 2011/65/EU (RoHs-II/RoHS-III)
- Cleanroom
- According to ISO Class 1 The outer jacket material of this series complies with CF77.UL.05.12.D - tested by IPA according to standard DIN EN ISO 14644-1
- CE
- According to 2014/35/EU
- UL/CSA AWM
- val_ul_csa_75
- UL verified
- Certificate no. V293650: "igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year"
- Flame-retardant
- According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame
- DNV
- Type approval certificate TAE00003X3
- NFPA
- According to NFPA 79-2018, chapter 12.9
- Offshore
- MUD-resistant according to NEK 606 - status 2018
Standards & Compliance
- HS Code
- 6307.90
