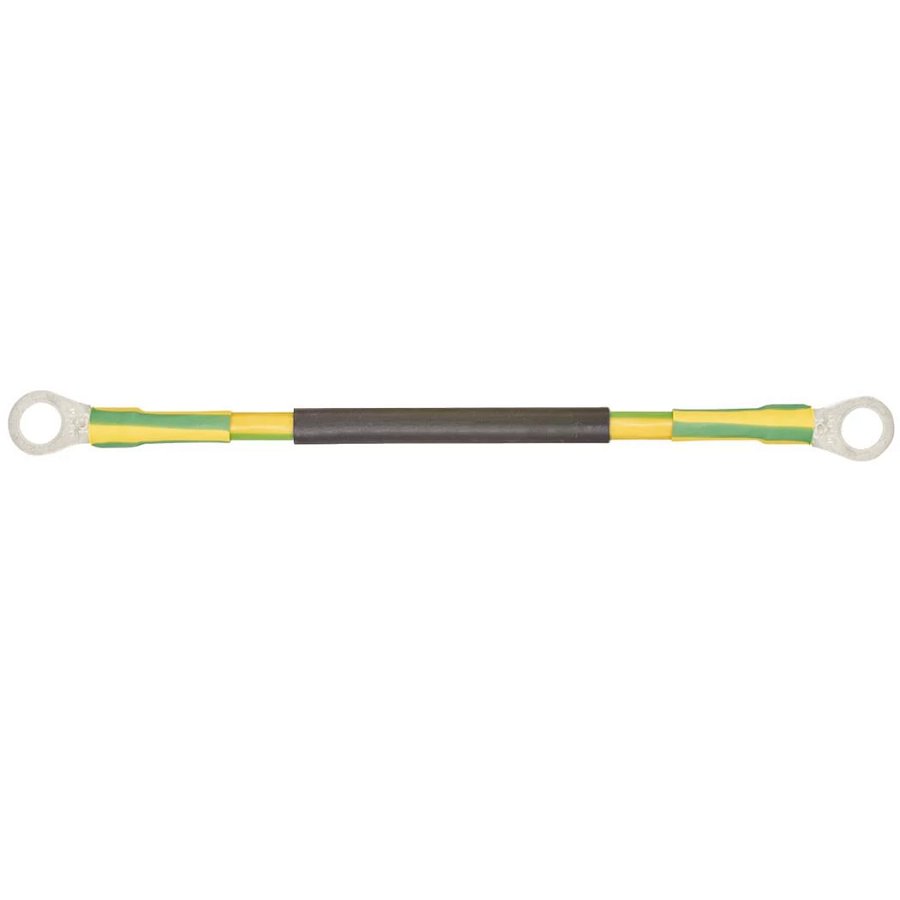

readycable® motor cable Fanuc M-900IB / R-2000IC protective conductor
Pricing
Request a quote
We reply within 24 hours
Overview
igus readycable® motor cable Fanuc M-900IB / R-2000IC protective conductor (part number MAT904117145) is listed under Safety & Detection / Tools. Connector A: Cable lug; Connector B: Ring cable lug; Copper index kg/km: 61 kg/km; Shipping weight (kg or kg/m): 0.587364; Outer diameter (d) max. mm: 7 mm; Weight per km: 83 kg/km.
Technical Specifications
- Manufacturer part number (MPN)
- MAT904117145
- Brand
- IGUS
- Category
- Tools
- Manufacturer name
- Protective conductor
- Connector A
- Cable lug
- Connector B
- Ring cable lug
- Number of cores and conductor nominal cross-section
- 1G6
- Copper index kg/km
- 61 kg/km
- Shipping weight (kg or kg/m)
- 0.587364
- Outer diameter (d) max. mm
- 7 mm
- Weight per km
- 83 kg/km
- Min. bend radius, e-chain (factor)
- 7.5 x d
- Min. bend radius, e-chain
- 52.5 mm
- Min. bend radius, flexible (factor)
- 6 x d
- Min. bend radius, flexible
- 42 mm
- Min. bend radius, fixed (factor)
- 4 x d
- Min. bend radius, fixed
- 28 mm
- Temperature e-chain®
- -35°C up to +90°C
- Temperature, flexible
- -45°C to +90°C (according to DIN EN 60811-504)
- Temperature, fixed
- -50°C to +90°C (according to DIN EN 50305)
- v max. unsupported (speed)
- 10 m/s
- v max. gliding (speed)
- 6 m/s
- a max. (acceleration)
- 100 m/s²
- travel length
- Travels up to 400 m and more
- v max., twisted (speed)
- 90 °/m
- torsion
- Torsion ±90°, with 1m cable length, Class 2
- Conductor
- Conductor cable made of stranded wires (according to DIN EN 60228).
- Core insulation
- Mechanically high-quality TPE mixture.
- Outer jacket
- Low-adhesion, extremely abrasion-resistant and highly flexible TPE mixture, adapted to suit the requirements in e-chains®.
- Outer jacket colour
- Signal black (comparable to RAL 9004)
- Nominal voltage
- 600/1,000V (according to DIN VDE 0298-3)
- Test voltage
- 4000V (according to DIN EN 50395)
- UV resistance
- High
- Oil resistance
- Oil-resistant (according to DIN EN 60811-404), bio-oil-resistant (according to VDMA 24568 with Plantocut 8 S-MB tested by DEA), Class 4
- Silicone-free
- Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)
- EAC
- Certificate No. RU C-DE.ME77.B.00863/20
- REACH
- In accordance with Regulation (EC) No. 1907/2006 (REACH)
- Lead-free
- According to 2011/65/EU (RoHs-II/RoHS-III)
- Cleanroom
- According to ISO Class 1 The outer jacket material of this series complies with CF34.UL.25.04.D - tested by IPA according to standard DIN EN ISO 14644-1
- CE
- According to 2014/35/EU
- UL/CSA AWM
- Style 10492 and 21218, 1000 V, 80 °C
- UL verified
- Certificate no. V293650: "The igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year“
- Flame-retardant
- According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame
- DNV
- Type approval certificate TAE00003XC
- NFPA
- According to NFPA 79-2018, chapter 12.9
- UKCA
- In accordance with the valid regulations of the United Kingdom (as of 08/2021)
Standards & Compliance
- HS Code
- 8544.42
Cross References
- OEM-URL https://www.igus.com/product/MAT904117145
Product Documentation
