chainflex® CF11 data cable TPE

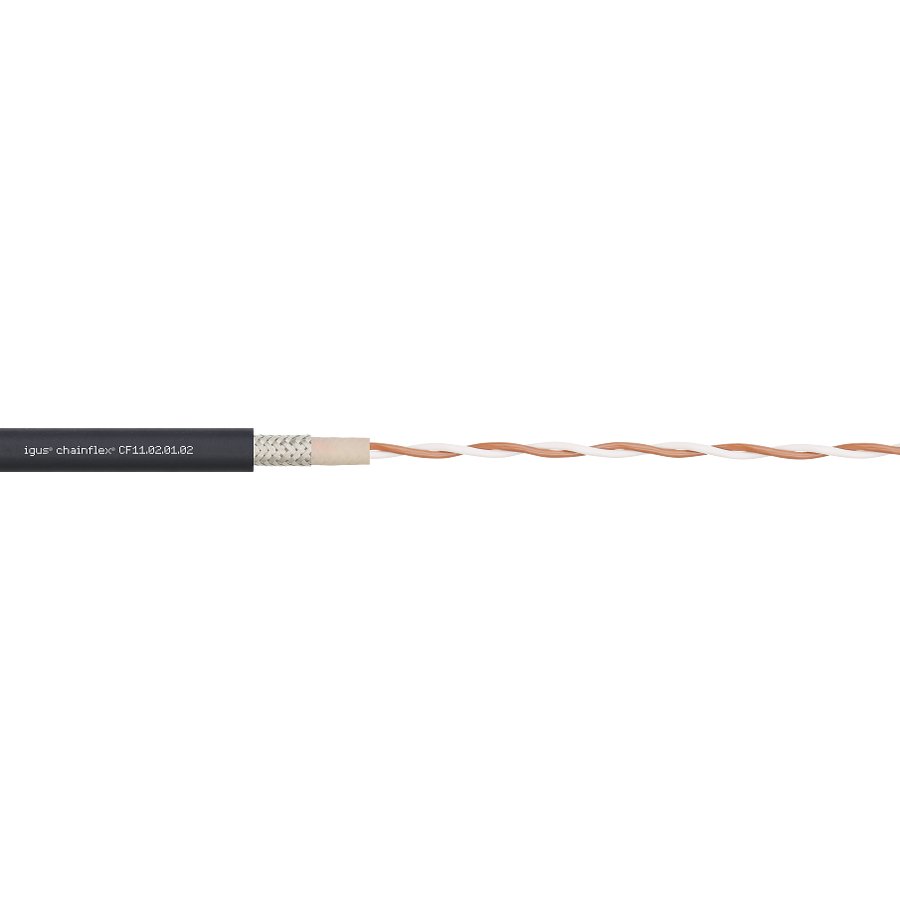

igus chainflex® CF11 data cable TPE (part number CF11.02.01.02) is listed under Safety & Detection / Tools. Copper index kg/km: 17 kg/km; Stranding type: Twisted Pair; Shipping weight (kg or kg/m): 0.039; Outer diameter (d) max. mm: 6 mm; Weight per km: 39 kg/km; Min. bend radius, e-chain: 40.8 mm.

Manufacturer part number (MPN)

CF11.02.01.02

Brand

IGUS

Category

Tools

Number of cores and conductor nominal cross-section

(2x0.25)C

Copper index kg/km

17 kg/km

Stranding type

Twisted Pair

Shipping weight (kg or kg/m)

0.039

Outer diameter (d) max. mm

6 mm

Weight per km

39 kg/km

Min. bend radius, e-chain (factor)

6.8 x d

Min. bend radius, e-chain

40.8 mm

Min. bend radius, flexible (factor)

5 x d

Min. bend radius, flexible

30 mm

Min. bend radius, fixed (factor)

4 x d

Min. bend radius, fixed

24 mm

Temperature e-chain®

-35°C up to +100°C

Temperature, flexible

-50°C to +100°C (according to DIN EN 60811-504)

Temperature, fixed

-55°C to +100°C (according to DIN EN 50305)

v max. unsupported (speed)

10 m/s

v max. gliding (speed)

6 m/s

a max. (acceleration)

100 m/s²

travel length

Travels up to 400 m and more

torsion

No Torsion

Conductor

Stranded conductor in an especially bend-resistant version consisting of bare copper wires (according to DIN EN 60228).

Core insulation

Mechanically high-quality TPE mixture.

Core stranding

Cores twisted in pairs with short pitch lengths, core pairs then wound with short pitch lengths.

Inner jacket

TPE mixture adapted to suit the requirements in e-chains®.

Overall shield

Extremely flexible braiding made of tinned copper wires. Coverage linear approx. 70%, optical approx. 90%

Outer jacket

Low-adhesion, extremely abrasion-resistant and highly flexible TPE mixture, adapted to suit the requirements in e-chains®.

Outer jacket colour

Steel blue (comparable to RAL 5011)

Nominal voltage

300/300V (according to DIN VDE 0298-3)

Test voltage

500V

UV resistance

High

Oil resistance

Oil-resistant (according to DIN EN 60811-404), bio-oil-resistant (according to VDMA 24568 with Plantocut 8 S-MB tested by DEA), Class 4

Silicone-free

Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)

Halogen-free

According to DIN EN 60754

EAC

Certificate No. RU C-DE.ME77.B.00300/19

REACH

In accordance with Regulation (EC) No. 1907/2006 (REACH)

Lead-free

According to 2011/65/EU (RoHs-II/RoHS-III)

Cleanroom

According to ISO Class 1 The outer jacket material of this series complies with CF9.15.07 - tested by IPA according to standard DIN EN ISO 14644-1

CE

According to 2014/35/EU

UL AWM

Style 11884 and 22357, 300 V, 90 °C

UL verified

Certificate no. V293650: "The igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year“

HS Code

8544.49
