Hellermann

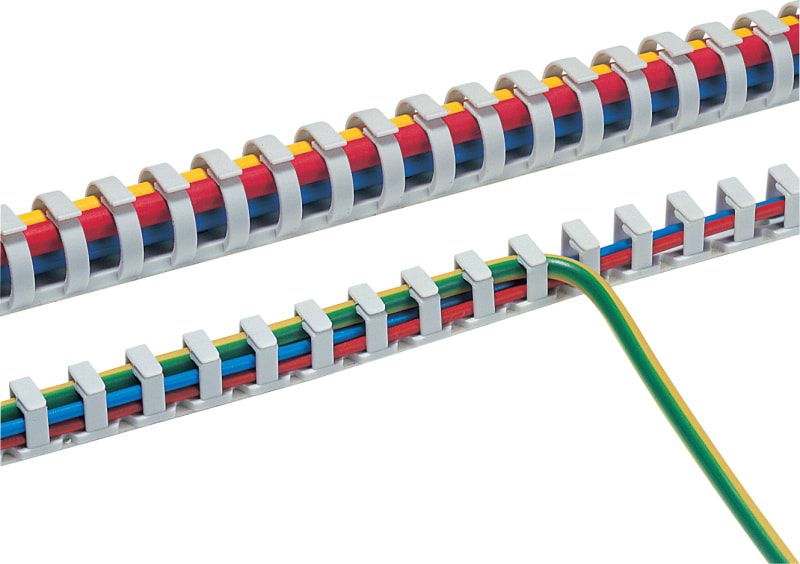

Cable Trunking Heladuct Flex 40SK
Part number164-41108EAN / GTIN4031026124292HS code3925.90
Control & Automation
Conduit & Trunking
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Hellermann 164-41108 Wiring Ducts slotted halogen-free.
Technical Specifications
- Manufacturer part number (MPN)
- 164-41108
- EAN / GTIN
- 4031026124292
- Sales unit
- pcs
- Package quantity
- 24 pcs
- OEM part description
- HelaDuct Flex40SK-PP-WH
- Type
- HelaDuct Flex40SK
- Product family
- HelaDuct Flex
- Material
- Polypropylene (PP)
- Colour
- White (WH)
- Length
- 500 mm
- Width
- 45.0 mm
- Height
- 48.0 mm
- Fixation method
- Screw Mounting and Adhesive
- Operating temperature
- -20 °C to +70 °C
- Flammability rating
- UL 94 V0 (excluding adhesive)
- UV stabilised
- No
- Halogen-free
- Yes
- RoHS compliant
- Yes
- ELV compliant (Article 4-2)
- Yes
- UL recognised (US and Canada)
- Yes
- Hazardous goods
- No
- Weight per unit
- 0.103 kg
- Packed in
- pack
- Inner pack type
- pack
- Country of origin
- DE
- Customs tariff number
- 39259020
- ETIM 9.0 class
- EC000012
- UNSPSC code
- 39131712
- Current leak stable Yes/No
- Yes
- No. of Wires
- 60 x 2.50 mm²
- Type of side wall
- Slotted
- Diameter (D)
- 40 mm
- Inside ⌀ (ID)
- 40.0 mm
- Nominal ⌀
- 40 mm
- Adhesive
- Synthetic rubber with base of polyethylene foam
- Adhesive Operating Temperature
- -20 °C to +70 °C
- Flexible
- Yes
- Self-extinguishing
- Yes
- Type of fastening
- Self-adhesive and bottom perforation
- Distance of slots
- 8 mm
- Slit width
- 5 mm
- With cover
- No
Standards & Compliance
- HS Code
- 3925.90
Cross References
- EAN 4031026124292
- SAP 1000084971
- Code 8842117
Product Documentation
Document preview: Cable Trunking Heladuct Flex 40SK (164-41108) — Specification sheet
More from Hellermann
Hellermann

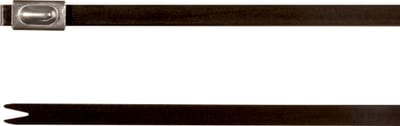

Steel band MBT5SFC 127X4,6mm
111-00288
Hellermann

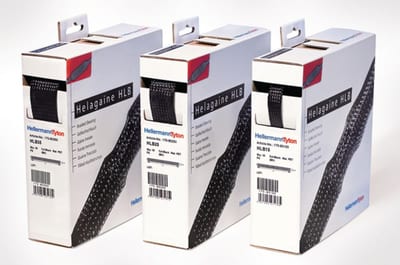

Braided sleeve Black HLB 25 mm BOX 10 m
170-80250
Hellermann

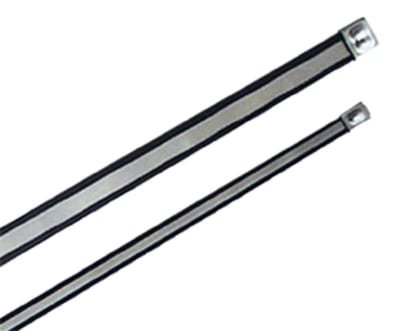

Cable Tie Steel MBT14XHFC 12.3 x 362 mm
111-00299
Hellermann

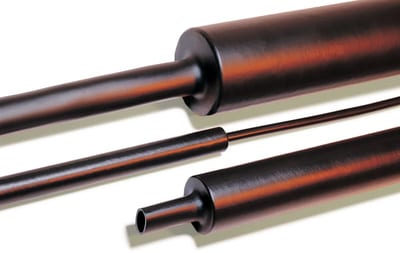

HellermannTyton MA47 95/30 mm Heat Shrink Tubing, Black, 1 m
323-20950
Hellermann

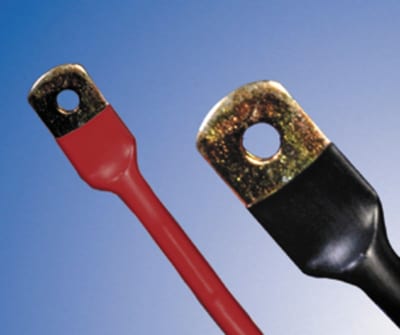

Heat Shrink Tubing MU47 75/22 mm 1 m SV without Adhesive Lining
