Hellermann
Hensel WP Watertight JUNCTION BOX 10 mm²,GREY
Part numberWP 1010 GEAN / GTIN4012591123637HS code8536.90
Enclosures
Junction Boxes
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

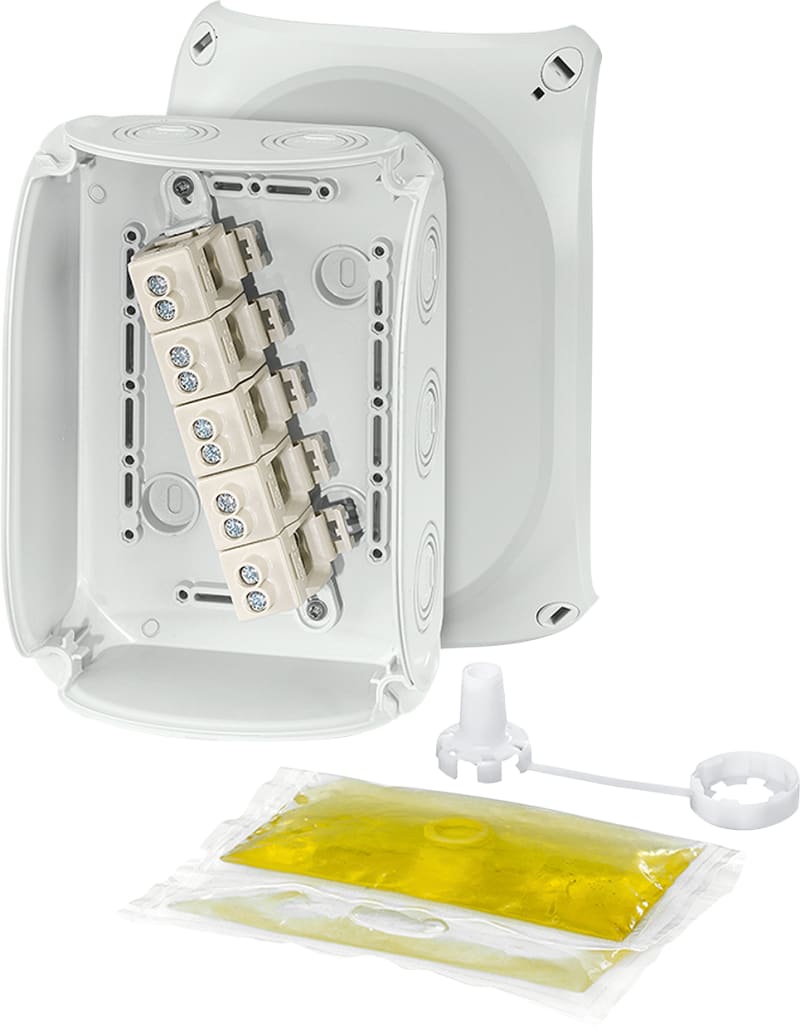

Hellermann WP 1010 G WP 1010 G, watertight junction box for 10mm², 180x130x77mm.
Technical Specifications
- Manufacturer part number (MPN)
- WP 1010 G
- EAN / GTIN
- 4012591123637
- Sales unit
- pcs
- Conductor cross-section
- 10 mm²
- Model
- Mounting box
- RAL-number (similar)
- 7035
- Max. conductor cross section
- 16 mm²
- Equipped with
- Screwed terminal
- Shape
- Square
- Mounting method
- Wall-/ceiling mounting
- Mounting in the soil
- Yes
- Mounting under water
- Yes
- Inlet from the rear
- Yes
- Length
- 180 mm
- Width
- 130 mm
- Depth
- 77 mm
- Connectable
- No
- Number of inlets
- 10
- Type of housing feed-through
- Preembossing
- Material
- Plastic
- Halogen free
- Yes
- Surface protection
- Untreated
- Colour
- Grey
- Degree of protection (IP)
- IP68
- Transparent cover
- No
- Cover attachment
- Screwed
- Castable
- Yes
- Casting compound included
- Yes
- Sealable
- Yes
- Rated insulation voltage Ui
- 690 V
- Circuit integrity
- None
- With screening
- No
- Weatherproof
- Yes
- Operating temperature
- -25–70 °C
- Explosion-tested version
- No
- For Ex-zone gas
- None
- For Ex-zone dust
- None
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4012591123637
- SAP 1000707637
- Code 8428022
Product Documentation
Document preview: Hensel WP Watertight JUNCTION BOX 10 mm²,GREY (wp 1010 G) — Specification sheet
