Hellermann
Heat Shrink Tubing HIS3 18.0/6.0 mm 4 m Red
Part number308-31802EAN / GTIN4031026218915HS code3917.32
Cables & Wiring
Heat Shrink
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

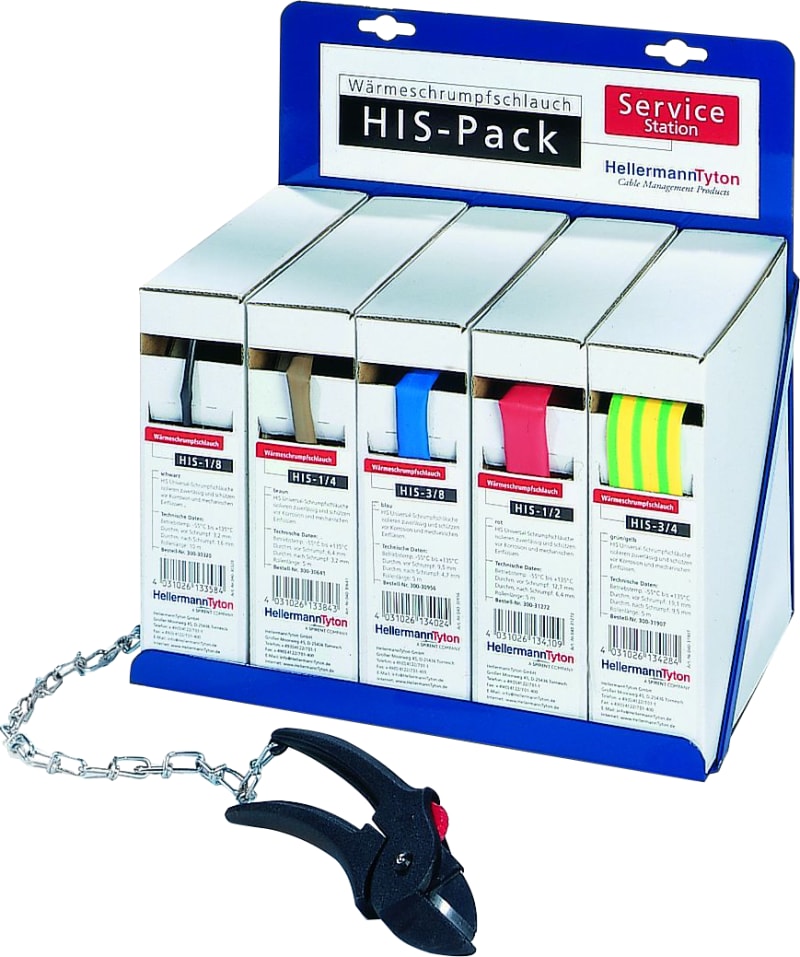

Hellermann 308-31802 HIS3 Heat-shrink tubing in dispenser box red. 18,0/6,0mm 4m box.
Technical Specifications
- Manufacturer part number (MPN)
- 308-31802
- EAN / GTIN
- 4031026218915
- Sales unit
- pcs
- OEM part description
- HIS-3-18/6-PO-X-RD
- Type
- HIS-3-18/6
- Product family
- HIS-3
- Serration
- Thin-Wall
- Material
- Polyolefin, cross-linked (PO-X)
- Colour
- Red (RD)
- Length
- 4 m
- Wall thickness
- 0.90 mm
- Supplied diameter (min.)
- 19.1 mm
- Recovered diameter (max.)
- 6.0 mm
- Operating temperature
- -55 °C to +135 °C
- Flammability rating
- UL 224 VW-1
- Halogen-free
- No
- RoHS compliant
- Yes
- ELV compliant (Article 4-2)
- Yes
- UL recognised (US and Canada)
- Yes
- Standards
- ANSI/UL 224, C22.2 no. 198.1-06
- Hazardous goods
- No
- Weight per unit
- 0.152 kg
- Package content
- 4 m
- Packed in
- pcs.
- Inner pack quantity
- 1
- Inner pack type
- carton
- Country of origin
- CN
- Customs tariff number
- 39173200
- ETIM 9.0 class
- EC000217
- UNSPSC code
- 39121723
- Behaviour At Low Temperature
- not cracking
- Behaviour at Heat Shock
- not fluid, not dripping, not cracking
- Behaviour at low Temperature test method
- UL 224
- Elongation At Heat Aging
- 400 %
- Heat Aging Test
- 168h/175°C
- Heat Aging test method
- UL 224
- Model
- Thin-walled
- Wall thickness after shrinking
- 0.9 mm
- Inner diameter before heat-shrink
- 18 mm
- Inner diameter after heat-shrink
- 6 mm
- Transparent
- No
- Printable
- No
- With inner glue
- No
- Shrink rate
- 3:1
- UL approval
- Yes
Standards & Compliance
- HS Code
- 3917.32
Cross References
- EAN 4031026218915
- SAP 1000087229
- Code 8888545
Product Documentation
Document preview: HellermannTyton 308-31802 — Technical Data Sheet (OEM)
