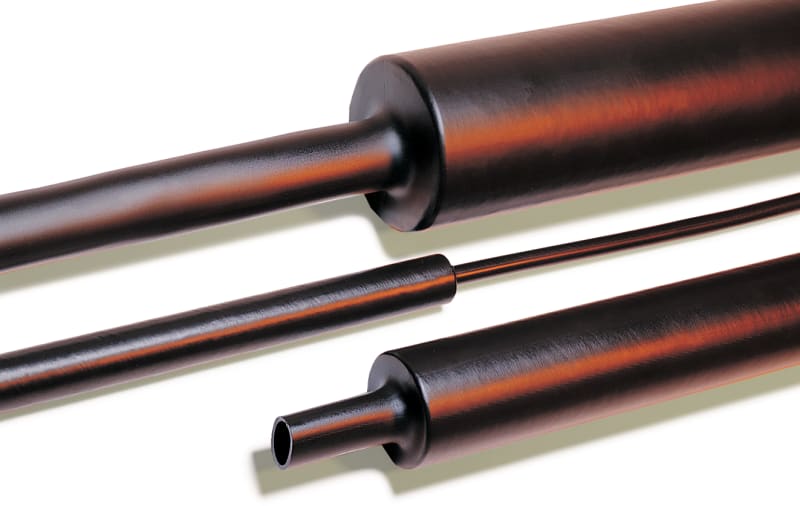

HellermannTyton MA47 95/30 mm Heat Shrink Tubing, Black, 1 m

HellermannTyton MA47-95/30-PO-X-BK is a medium-wall adhesive-lined heat-shrink tubing, cross-linked polyolefin, 4:1 shrink ratio from 95 mm to 25 mm supplied diameter. Halogen-free, resistant to solvents, acids and alkaline fluids, operating range -55 to +110 degrees C. Used for insulation, strain relief and environmental sealing of cable joints and terminations in energy and industrial cabling.

Manufacturer part number (MPN)

323-20950 EAN / GTIN: 4031026240275 Sales unit: pcs Package quantity: 5 pcs OEM part description: MA47-95/30-PO-X-BK Type: MA47-95/30 Product family: MA47 - medium wall adhesive lined Serration: Medium-Wall material: Polyolefin, cross-linked (PO-X) Colour: Black (BK) Length: 1.0 m Wall thickness: 3.6 mm Supplied diameter (min.): 95.0 mm Recovered diameter (max.): 25.0 mm Operating temperature: -55 °C to +110 °C Halogen-free: Yes RoHS compliant: Yes ELV compliant (Article 4-2): Yes Hazardous goods: No Weight per unit: 0.466833 kg Packed in: pcs. Country of origin: CN Customs tariff number: 39173200 ETIM 9.0 class: EC000217 UNSPSC code: 39121723 Behaviour At Low Temperature: not cracking Behaviour at Heat Shock: not cracking, not fluid, not dripping Behaviour at low Temperature test method: ASTM D2671 Elongation At Heat Aging: 300 % Heat Aging Test: 168h/150°C Heat Aging test method: ASTM D2671 Heat Shock Test: 4h/225°C minimum Tensile Strength At Heat Aging: 12 MPa Printable: No Shrink Ratio: up to 4:1 With inner glue (Yes/No): Yes Model: Medium-walled Wall thickness after shrinking: 3 mm Inner diameter before heat-shrink: 95 mm Inner diameter after heat-shrink: 30 mm Transparent: No Shrink rate: 4:1 UL approval: No

HS Code

3917.32

• EAN 4031026240275
• SAP 1000722143
• Code 8703995
