Harting

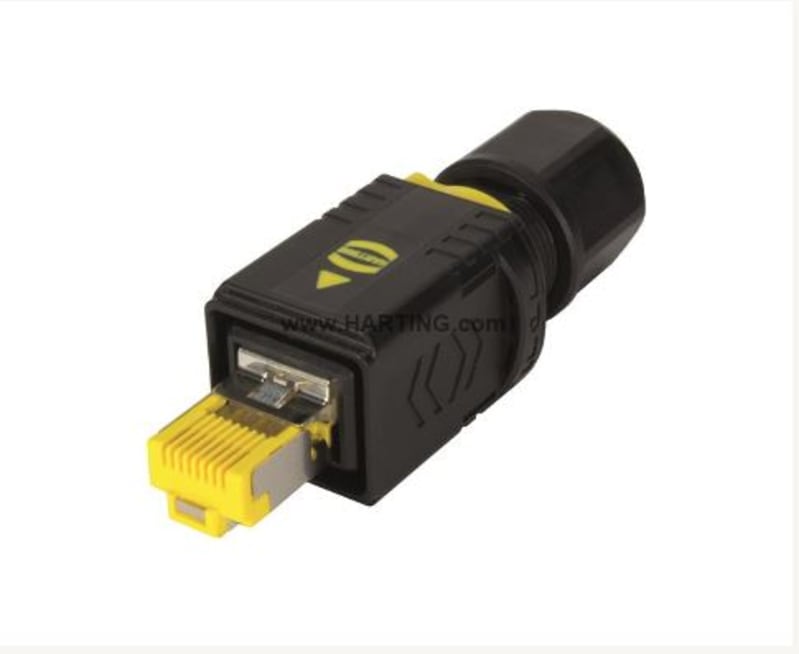

PushPull V4 plug, RJ45, CAT.6, IDC
Part number09451451561EAN / GTIN5713140223752HS code8536.70
Cables & Wiring
Signal & Data Cables
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Harting 09451451561 Manufacturer description: Connectors; Connector sets; IDC insulation displacement termination; Contacts: 8; PushPull; Material: Thermoplastic; Degree of protection: IP65, IP67. HARTING PushPull RJ45 Cat. 6 plug set complete.
Technical Specifications
- Manufacturer part number (MPN)
- 09451451561
- EAN / GTIN
- 5713140223752
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Category
- Connectors
- Element
- Connector sets
- Series
- HARTING PushPull (V4) | RJ45
- Features
- Suitable for all PoE versions
- Termination method
- IDC insulation displacement termination
- Locking type
- PushPull
- Shielding
- Fully shielded, 360° shielding contact
- Number of contacts
- 8
- Pack contents
- incl. housing with RJ45 connector, shielding and cable gland
- Conductor cross-section (mm²)
- 0.1 ... 0.32 mm² Stranded | 0.22 ... 0.32 mm² Solid
- Conductor cross-section (AWG)
- AWG 27/7 ... AWG 22/7 Stranded | AWG 27/1 ... AWG 22/1 Solid
- Limiting temperature
- -40 ... +70 °C
- Storage temperature
- +5 ... +50 °C
- Tightening torque
- 1.3 ... 1.5 Nm
- Mating cycles
- 750
- Degree of protection acc. to IEC 60529
- IP65 | IP67
- Cable diameter
- 4.5 ... 10 mm
- Transmission characteristics
- Cat. 6 Class EA up to 500 MHz
- Data rate
- 10 Mbit/s | 100 Mbit/s | 1 Gbit/s | 2.5 Gbit/s | 5 Gbit/s | 10 Gbit/s
- Vibration resistance
- 10-500 Hz, 5 g, 0.35 mm, 2h/axis | 5.72 m/s² acc. to IEC 61373 Category 1 Class B
- Shock resistance
- 25 g / 11 ms, 3 shocks / axis and direction | 5 g / 30 ms, 5 shocks / axis and direction acc. to IEC 61373 Category 1 Class B
- ECHA SCIP number
- d361ed36-dee0-4df8-9f2e-b62dd7563c1a
- Fire protection on railway vehicles
- EN 45545-2 (2020-08) + A1 (2023-10)
- China RoHS
- e
- RoHS
- compliant
- REACH SVHC substances
- Yes | 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one
- REACH Annex XVII substances
- Not contained
- REACH ANNEX XIV substances
- Not contained
- Requirement set with Hazard Levels
- R26
- ELV status
- compliant
- California Proposition 65 substances
- Yes | Nickel
- Material (hood/housing)
- Thermoplastic
- Colour (hood/housing)
- Black
- Material flammability class acc. to UL 94
- V-0
- UL / CSA
- UL 1977 ECBT2.E102079 | CSA-C22.2 No. 182.3 ECBT8.E102079
- PROFINET
- No
- Approvals
- DNV GL
- Specifications
- IEC 61076-3-106 Variant 4 (V4) | EN 45545-2
- European customs tariff number
- 85366990
- Packaging size
- 10
- Net weight
- 27 g
- Country of origin
- Romania
- eCl@ss
- 27440114 Rectangular connector (for field assembly)
- ETIM
- EC002636
- UNSPSC 24.0
- 39121408
- Width
- 20 mm
- Height
- 20 mm
- Depth
- 50 mm
- Number of poles
- 8
- Pollution degree
- 2
- Connectable conductor cross section solid-core
- 0.1–0.32 mm²
- Connectable conductor cross section multi-wired
- 0.1–0.32 mm²
- Type of electric connection
- Insulation displacement connection
- Housing material
- Plastic
- Type of locking
- Push Pull
- With protective conductor
- No
- Operating temperature
- -40–70 °C
- Degree of protection (IP), mounted
- IP65
- EMC-version
- Yes
- Number of conduit inlets
- 1
- With sealing
- No
Standards & Compliance
- HS Code
- 8536.70
Cross References
- EAN 5713140223752
- SAP 1200282620
- Code 82271732
Product Documentation
Document preview: HARTING 09451451561 — Data Sheet (OEM)
