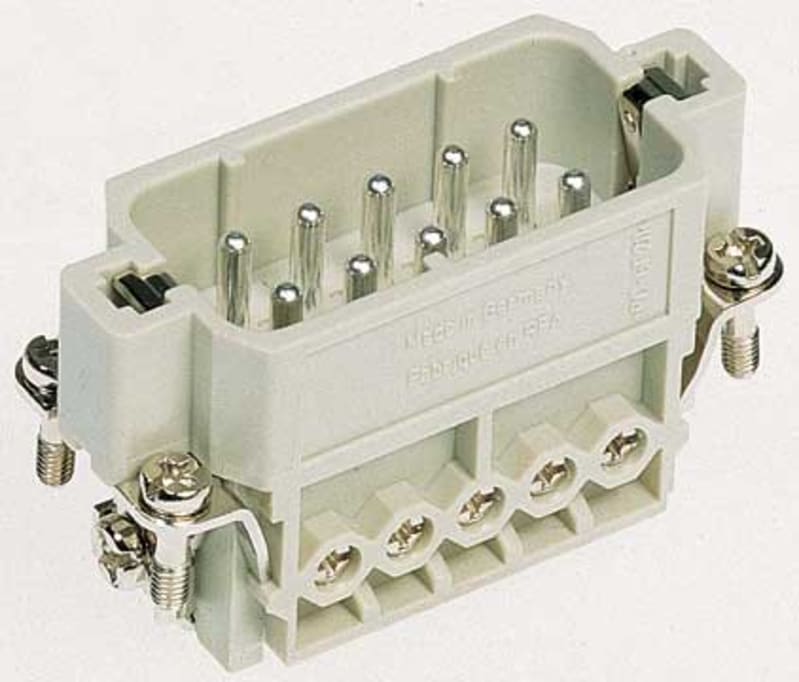

Han 10A-STI-S (09200102612)

Harting 09200102612 Manufacturer description: Inserts; Screw termination; Male; Polycarbonate (PC); RAL 7032 (pebble grey); Rated current: 16 A; Size: 10 A; Contacts: 10; Conductor cross-section: 0.75. 2.5 mm²; Copper alloy; Silver plated. Han A® 10A Plug insert, screw connection, 10+earth, 16A 250V, 0,75mm2 - 2,5mm2.

Manufacturer part number (MPN)

09200102612

EAN / GTIN

5713140039391

Sales unit

pcs

Category

Inserts

Series

Han A®

Termination method

Screw termination

Gender

Male

Size

10 A

Number of contacts

10

PE contact

Yes

Conductor cross-section (mm²)

0.75 ... 2.5 mm²

Rated current

16 A

Rated voltage

250 V

Rated impulse voltage

4 kV

Pollution degree

3

Rated voltage acc. to UL

600 V

Insulation resistance

>10¹⁰ Ω

Limiting temperature

-40 ... +125 °C

Tightening torque

0.5 Nm Contact screw M3 | 0.5 Nm Fixing screws M3 | 0.8 Nm PE screw M3.5

Recommended screw driver

Slotted 0.6 x 3.5 | PH1

Mating cycles

500

ECHA SCIP number

564b7d75-7bf6-4cfb-acb1-2168eb61b675

Fire protection on railway vehicles

EN 45545-2 (2020-08) + A1 (2023-10)

China RoHS

50

RoHS

compliant with exemption

REACH SVHC substances

Yes | Lead

REACH Annex XVII substances

Not contained

REACH ANNEX XIV substances

Not contained

Requirement set with Hazard Levels

R22 (HL 1-3) | R23 (HL 1-3)

ELV status

compliant with exemption

California Proposition 65 substances

Yes | Lead | Nickel

RoHS exemptions

6(c): Copper alloy containing up to 4 % lead by weight

Material (insert)

Polycarbonate (PC)

Colour (insert)

RAL 7032 (pebble grey)

Material (contacts)

Copper alloy

Surface (contacts)

Silver plated

Material flammability class acc. to UL 94

V-0

UL / CSA

UL 1977 ECBT2.E235076 | UL 2237 PVVA2.E318390 | CSA-C22.2 No. 182.3 PVVA8.E318390

Approvals

DNV GL

Specifications

IEC 60664-1 | IEC 61984

European customs tariff number

85366990

Packaging size

1

Net weight

15 g

Country of origin

Romania

eCl@ss

27440205 Contact insert for industrial connectors

ETIM

EC000438

UNSPSC 24.0

39121522

Width

22.8 mm

Height

56.5 mm

Depth

32.9 mm

With wire protection

No

With housing

No

Suitable for distribution board

No

Number of poles

10

Contact type

Pin

Ambient temperature

-40–125 °C

Operating temperature

-40–125 °C

Rated surge voltage

4 kV

Type of electric connection

Screw connection

Material of contact surface

Silver

Overvoltage category

III

Diameter plug-in contact

2.5 mm

Contact insert without contacts

No

Connectable conductor cross section solid-core

0.75–2.5 mm²

Connectable conductor cross section multi-wired

0.75–2.5 mm²

With protective conductor

Yes

Material contact

Other copper alloys

Material connector insert

Thermoplastic

Rated current In

16 A

Material of contact insert

Thermoplastic

Min. number of insertion cycles

500

Number of power contacts

10

HS Code

8536.90
