Harting

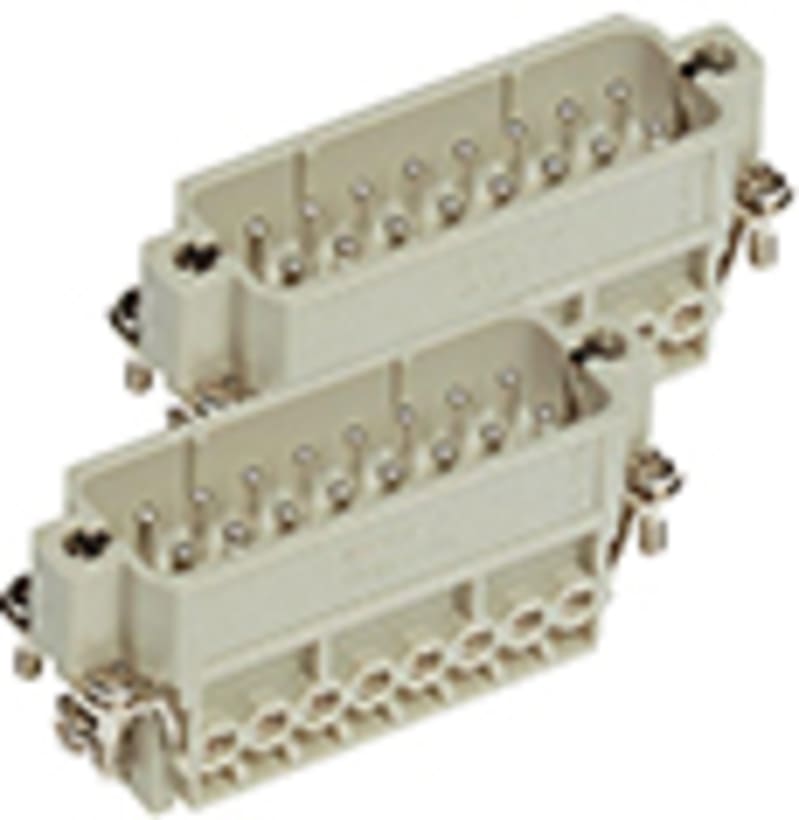

Han 16A-STI-S (17-32)
Part number09200162613EAN / GTIN5713140039810HS code8536.90
Electrical Components
Heavy-Duty Connectors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Harting 09200162613 Manufacturer description: Inserts; Screw termination; Male; Polycarbonate (PC); RAL 7032 (pebble grey); Rated current: 16 A; Size: 32 A; Contacts: 32; Conductor cross-section: 0.75. 2.5 mm²; Copper alloy; Silver plated. Han® 32A - 16+ground plug, screw connection. Numbered 17-32. Size 32A.
Technical Specifications
- Manufacturer part number (MPN)
- 09200162613
- EAN / GTIN
- 5713140039810
- Sales unit
- pcs
- Category
- Inserts
- Specification
- Continuing marking
- Series
- Han A®
- Termination method
- Screw termination
- Gender
- Male
- Size
- 32 A
- Number of contacts
- 32
- PE contact
- Yes
- Contact identification
- 17 ... 32
- Details
- You need two inserts for a complete assembly!
- Conductor cross-section (mm²)
- 0.75 ... 2.5 mm²
- Rated current
- 16 A
- Rated voltage
- 250 V
- Rated impulse voltage
- 4 kV
- Pollution degree
- 3
- Rated voltage acc. to UL
- 600 V
- Insulation resistance
- >10¹⁰ Ω
- Contact resistance
- 1 mΩ
- Limiting temperature
- -40 ... +125 °C
- Tightening torque
- 0.5 Nm Contact screw M3 | 0.5 Nm Fixing screws M3 | 0.8 Nm PE screw M3.5
- Recommended screw driver
- Slotted 0.6 x 3.5 | PH1
- Mating cycles
- 500
- ECHA SCIP number
- 564b7d75-7bf6-4cfb-acb1-2168eb61b675
- Fire protection on railway vehicles
- EN 45545-2 (2020-08) + A1 (2023-10)
- China RoHS
- 50
- RoHS
- compliant with exemption
- REACH SVHC substances
- Yes | Lead
- REACH Annex XVII substances
- Not contained
- REACH ANNEX XIV substances
- Not contained
- Requirement set with Hazard Levels
- R22 (HL 1-3) | R23 (HL 1-3)
- ELV status
- compliant with exemption
- California Proposition 65 substances
- Yes | Lead | Nickel
- RoHS exemptions
- 6(c): Copper alloy containing up to 4 % lead by weight
- Material (insert)
- Polycarbonate (PC)
- Colour (insert)
- RAL 7032 (pebble grey)
- Material (contacts)
- Copper alloy
- Surface (contacts)
- Silver plated
- Material flammability class acc. to UL 94
- V-0
- UL / CSA
- UL 1977 ECBT2.E235076 | UL 2237 PVVA2.E318390 | CSA-C22.2 No. 182.3 PVVA8.E318390
- Approvals
- DNV GL
- Specifications
- IEC 60664-1 | IEC 61984
- European customs tariff number
- 85366990
- Packaging size
- 1
- Net weight
- 66 g
- Country of origin
- Romania
- eCl@ss
- 27440205 Contact insert for industrial connectors
- ETIM
- EC000438
- UNSPSC 24.0
- 39121522
- Width
- 23 mm
- Height
- 33 mm
- Depth
- 73 mm
- With wire protection
- No
- With housing
- No
- Suitable for distribution board
- No
- Number of poles
- 32
- Contact type
- Pin
- Ambient temperature
- -40–125 °C
- Operating temperature
- -40–125 °C
- Rated surge voltage
- 4 kV
- Type of electric connection
- Screw connection
- Material of contact surface
- Silver
- Overvoltage category
- III
- Diameter plug-in contact
- 2.5 mm
- Contact insert without contacts
- No
- Connectable conductor cross section solid-core
- 0.75–2.5 mm²
- Connectable conductor cross section multi-wired
- 0.75–2.5 mm²
- With protective conductor
- Yes
- Material contact
- Other copper alloys
- Material connector insert
- Thermoplastic
- Rated current In
- 16 A
- Material of contact insert
- Thermoplastic
- Min. number of insertion cycles
- 500
- Number of power contacts
- 32
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 5713140039810
- SAP 1000444810
- Code 8240493
Product Documentation
Document preview: HARTING 09200162613 — Data Sheet (OEM)
