Han C axial module, male 2,5-8mm²

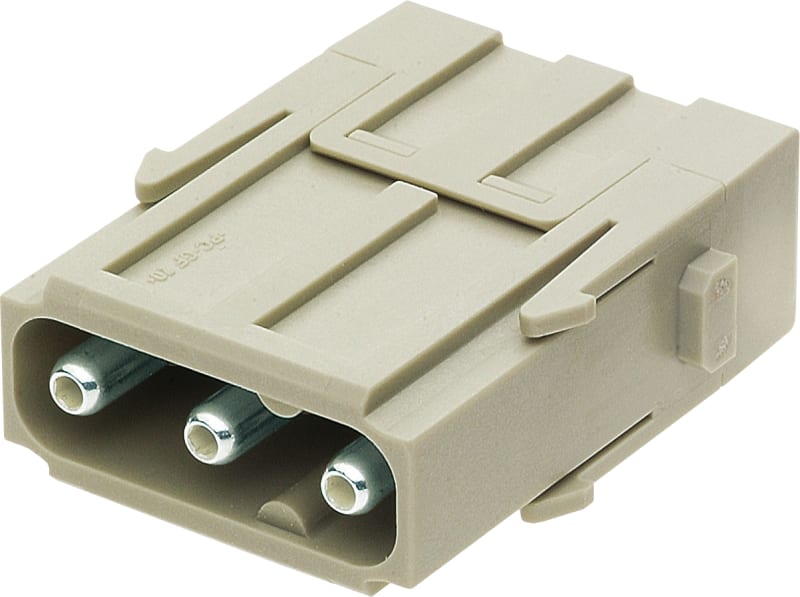

Harting 09140032601 Manufacturer description: Han® C module; Single module; Axial screw termination; Male; Contacts: 3; Conductor cross-section: 2.5. 8 mm²; Rated current: 40 A; Polycarbonate (PC); RAL 7032 (pebble grey); Copper alloy; Silver plated. HAN C AXIAL MODULE, MALE 2,5-8MM2.

Manufacturer part number (MPN)

09140032601

EAN / GTIN

5713140019997

Sales unit

pcs

Package quantity

2 pcs

Category

Modules

Type of module

Han® C module

Size of the module

Single module

Series

Han-Modular®

Termination method

Axial screw termination

Gender

Male

Number of contacts

3

Conductor cross-section (mm²)

2.5 ... 8 mm²

Wire outer diameter

≤8.2 mm

Rated current acc. to UL

32 A

Rated current

40 A

Rated voltage

690 V

Rated impulse voltage

8 kV

Pollution degree

3

Rated voltage acc. to UL

600 V

Insulation resistance

>10¹⁰ Ω

Contact resistance

0.3 mΩ

Limiting temperature

-40 ... +125 °C

Stripping length

5 ... 6 mm @ 2.5 mm² | 5 ... 6 mm @ 4 mm² | 8 ... 9 mm @ 6 mm² | 8 ... 9 mm @ 8 mm²

Tightening torque

1.5 Nm @ 2.5 mm² | 1.5 Nm @ 4 mm² | 2 Nm @ 6 mm² | 2 Nm @ 8 mm²

Mating cycles

500

ECHA SCIP number

5dbb3851-b94e-4e88-97a1-571845975242

Fire protection on railway vehicles

EN 45545-2 (2020-08) + A1 (2023-10)

China RoHS

50

RoHS

compliant with exemption

REACH SVHC substances

Yes | Lead

REACH Annex XVII substances

Not contained

REACH ANNEX XIV substances

Not contained

Requirement set with Hazard Levels

R22 (HL 1-3) | R23 (HL 1-3)

ELV status

compliant with exemption

California Proposition 65 substances

Yes | Lead | Nickel

RoHS exemptions

6(c): Copper alloy containing up to 4 % lead by weight

Material (insert)

Polycarbonate (PC)

Colour (insert)

RAL 7032 (pebble grey)

Material (contacts)

Copper alloy

Surface (contacts)

Silver plated

Material flammability class acc. to UL 94

V-0

UL / CSA

UL 1977 ECBT2.E235076 | UL 2237 PVVA2.E318390 | CSA-C22.2 No. 182.3 PVVA8.E318390

Approvals

DNV GL

Specifications

IEC 60664-1 | IEC 61984 | IEC 61373 Category 1 Class B

European customs tariff number

85389099

Packaging size

2

Net weight

29.66 g

Country of origin

Germany

eCl@ss

27440217 Module for industrial connectors (power/signals)

ETIM

EC000438

UNSPSC 24.0

39121552

Shape

Rectangular

With wire protection

No

With housing

No

Suitable for distribution board

No

Number of poles

3

Contact type

Pin

Ambient temperature

-40–125 °C

Operating temperature

-40–125 °C

Rated surge voltage

8 kV

Type of electric connection

Axial screw connection

Material of contact surface

Silver

Overvoltage category

III

Diameter plug-in contact

4 mm

Contact insert without contacts

No

Connectable conductor cross section multi-wired

2.5–8 mm²

With protective conductor

No

Material contact

Other copper alloys

Material connector insert

Thermoplastic

Rated current In

40 A

Material of contact insert

Thermoplastic

Min. number of insertion cycles

500

Number of power contacts

3

HS Code

8538.90
