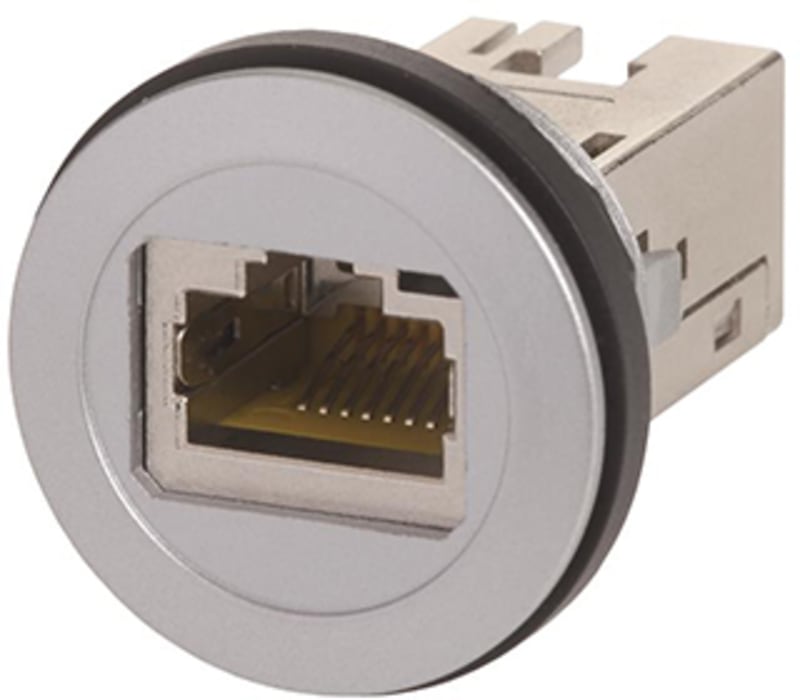

Harting has-port RJ45 Cat 6A Fully Shielded Jack-to-Jack, IP20
Pricing
Request a quote
We reply within 24 hours
Product Description
Service interface from the Harting has-port range, providing a fully shielded RJ45 jack-to-jack pass-through with 360-degree shield contact for panel or cover-plate mounting. Rated Cat 6A / Class EA to 500 MHz, supports 10/100/1000 Mbit/s and 10 Gbit/s Ethernet and all PoE variants. Housing is silver polyamide, IP20, -25 to +70 degrees C, 750 mating cycles. Typical applications include field service ports on control cabinets, machine consoles, and rolling-stock interior panels where a robust, shielded network access point is required. Country of origin: Germany.
Technical Specifications
- Manufacturer part number (MPN)
- 09454521560
- EAN / GTIN
- 5713140060449
- Sales unit
- pcs
- Category
- Connectors
- Element
- Service interfaces
- Specification
- RJ45
- Series
- has-port
- Features
- Suitable for all PoE versions
- Shielding
- Fully shielded, 360° shielding contact
- Connection type
- Jack to jack
- Fixing
- Screwable in cover plates
- Ambient temperature
- -25 ... +70 °C
- Mating cycles
- 750
- Degree of protection acc. to IEC 60529
- IP20
- Transmission characteristics
- Cat. 6A Class EA up to 500 MHz
- Data rate
- 10 Mbit/s | 100 Mbit/s | 1 Gbit/s | 10 Gbit/s
- China RoHS
- e
- RoHS
- compliant
- REACH SVHC substances
- Not contained
- REACH Annex XVII substances
- Not contained
- REACH ANNEX XIV substances
- Not contained
- ELV status
- compliant
- California Proposition 65 substances
- Yes | Lead | Nickel
- Material (hood/housing)
- Polyamide (PA)
- Colour (hood/housing)
- silver
- UL / CSA
- UL 1863 DUXR2.E470046 | CSA-C22.2 No. 182.4, No. 233-09 DUXR8.E470046
- PROFINET
- Yes
- Approvals
- DNV GL
- Specifications
- EN 45545-2
- European customs tariff number
- 85366990
- Packaging size
- 1
- Net weight
- 24.5 g
- Country of origin
- Germany
- eCl@ss
- 27060304 Appliance cord (data cable)
- ETIM
- EC002599
- UNSPSC 24.0
- 43202222
Cross References
- EAN 5713140060449
- SAP 1000710671
- Code 8432530
Product Documentation
More from Harting
Harting
Han B Base Panel 1 Lever Metal Cover (09300060318)
Harting
Han B Hood Side Entry LC M32
19300241522
Harting
Han K 4/2 Pin Female Insert
09380062701
Harting
HAN3A RJ45 Hybrid 10G CAT6 plug 8+4P IDC (9451251760)
Harting
Han K 4/0 Pin Male Insert
09380062611
Harting
Han B Protect Cover Die Cast for Hood PG (09300245422)
Harting
Han 6ES Press - M (09330062648)
Harting
HAR PROFINET Typ C 4XAWG22/7 trail. 50M
9456000141
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 09454521560?
- 09454521560 can be ordered from cballast.com as a Harting catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Harting product?
- The manufacturer part number is 09454521560.
- Who manufactures 09454521560?
- 09454521560 is a Harting product in the Cables & Wiring range.
- Is a datasheet available for 09454521560?
- Yes — the 09454521560 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 09454521560?
- The minimum order quantity is 1.
- Is 09454521560 available?
- Yes — 09454521560 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
- How do I get a price for 09454521560?
- Request a quotation with the quote button on this page or by email to sales@cballast.com — we reply within 24 hours with price, availability and lead time.
