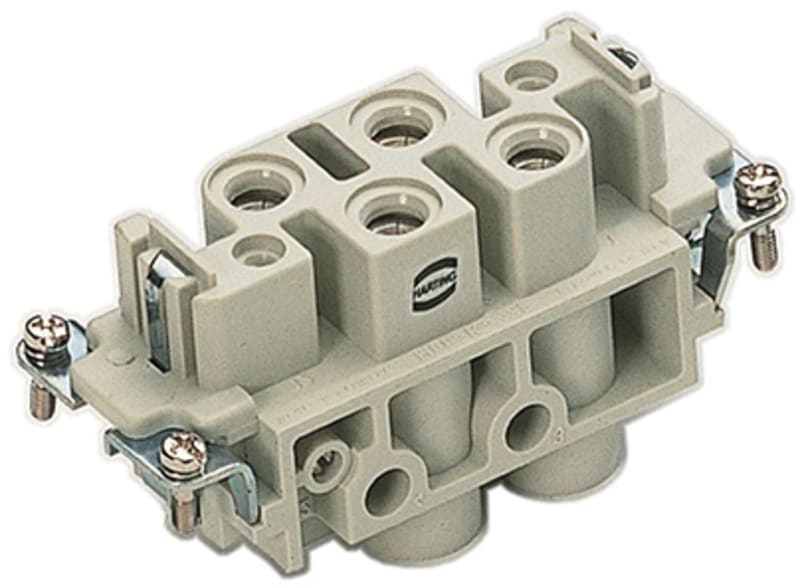

Han K 4/2 Pin Female Insert

Harting 09380062701 Manufacturer description: Inserts; Screw termination; Female; Polycarbonate (PC); RAL 7032 (pebble grey); Size: 16 B; Contacts: 6; Conductor cross-section: 1.5. 16 mm² Power 0.5. 2.5 mm² Signal; Copper alloy; Silver plated. Han-Com® Han® K4/2 Plinth, 6+earth, (4 x 80 Amp 830V + 2 x 16 Amp 400V).

Manufacturer part number (MPN)

09380062701

EAN / GTIN

5713140056244

Sales unit

pcs

Category

Inserts

Identification

Han® K 4/2

Series

Han-Com®

Termination method

Screw termination

Gender

Female

Size

16 B

Number of contacts

6

Number of signal contacts

2

Number of power contacts

4

PE contact

Yes

Conductor cross-section (mm²)

1.5 ... 16 mm² Power | 0.5 ... 2.5 mm² Signal

Rated current acc. to UL (signal)

15 A

Rated current acc. to CSA (signal)

14 A

Rated voltage acc. to UL (signal)

250 V

Rated voltage acc. to CSA (signal)

250 V

Rated current (signal)

16 A

Rated voltage (signal)

400 V

Rated impulse voltage (signal)

6 kV

Pollution degree (signal)

3

Rated current (power)

80 A

Rated voltage (power)

830 V

Rated impulse voltage (power)

8 kV

Pollution degree (power)

3

Rated current acc. to UL (Power)

70 A

Rated current acc. to CSA (Power)

56 A

Rated voltage acc. to UL (Power)

600 V

Rated voltage acc. to CSA (Power)

600 V

Insulation resistance

>10¹⁰ Ω

Contact resistance

0.3 mΩ

Contact resistance, signal area

1 mΩ

Limiting temperature

-40 ... +125 °C

Stripping length

14 mm | 7.5 mm Signal

Tightening torque

1.2 Nm @ 1.5 mm² | 2 Nm @ 2.5 mm² | 3 Nm @ 4 mm² | 3 Nm @ 6 mm² | 3 Nm @ 10 mm² | 3 Nm @ 16 mm² | 3 Nm Contact screw M6 | 0.5 Nm Fixing screws M3 | 2 Nm PE screw M5

Recommended screw driver

Slotted 0.6 x 3.5 | Slotted 0.8 x 4.5 | PH1 | PH2

Mating cycles

500

ECHA SCIP number

5dbb3851-b94e-4e88-97a1-571845975242

Fire protection on railway vehicles

EN 45545-2 (2020-08) + A1 (2023-10)

China RoHS

50

RoHS

compliant with exemption

REACH SVHC substances

Yes | Lead

REACH Annex XVII substances

Not contained

REACH ANNEX XIV substances

Not contained

Requirement set with Hazard Levels

R22 (HL 1-3) | R23 (HL 1-3)

ELV status

compliant with exemption

California Proposition 65 substances

Yes | Lead | Nickel

RoHS exemptions

6(c): Copper alloy containing up to 4 % lead by weight

Material (insert)

Polycarbonate (PC)

Colour (insert)

RAL 7032 (pebble grey)

Material (contacts)

Copper alloy

Surface (contacts)

Silver plated

Material flammability class acc. to UL 94

V-0

UL / CSA

UL 1977 ECBT2.E235076 | CSA-C22.2 No. 182.3 ECBT8.E235076

Approvals

DNV GL

Specifications

IEC 60664-1 | IEC 61984

European customs tariff number

85366990

Packaging size

1

Net weight

116 g

Country of origin

Romania

eCl@ss

27440205 Contact insert for industrial connectors

ETIM

EC000438

UNSPSC 24.0

39121522

Width

34 mm

Height

84.4 mm

Depth

44.2 mm

Shape

Rectangular

With wire protection

No

With housing

No

Suitable for distribution board

No

Number of poles

6

Contact type

Bus

Ambient temperature

-40–125 °C

Operating temperature

-40–125 °C

Rated surge voltage

8 kV

Type of electric connection

Screw connection

Material of contact surface

Silver

Overvoltage category

III

Diameter plug-in contact

5.4 mm

Contact insert without contacts

No

Connectable conductor cross section solid-core

1.5–16 mm²

Connectable conductor cross section multi-wired

1.5–16 mm²

With protective conductor

Yes

Material contact

Other copper alloys

Material connector insert

Thermoplastic

Rated current In

80 A

Material of contact insert

Thermoplastic

Min. number of insertion cycles

500

Number of control contacts

2

HS Code

8536.90
