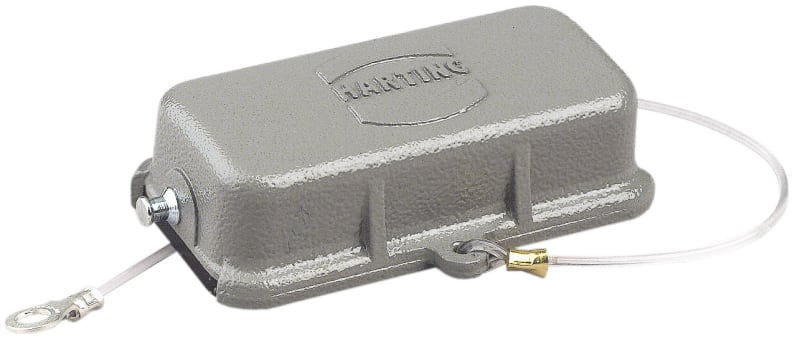

Han 10A/15EMV-AK (09200105425)
Pricing
Request a quote
We reply within 24 hours
Product Description
Harting 09200105425 Manufacturer description: Protection cover; for bulkhead mounted housings, for surface mounted housings, for cable to cable housing, with fixing cord; Size: 10 A; Single locking lever; Material (hood/housing): Aluminium die-cast; Powder-coated; RAL 7037 (dust grey); Material (seal): NBR; Degree of protection: IP65. Han A® 10A Protections cover in metal for wall-mounted and cable joint with patch cord.
Technical Specifications
- Manufacturer part number (MPN)
- 09200105425
- EAN / GTIN
- 5713140039568
- HS code
- 8544.42
- Sales unit
- pcs
- Category
- Accessories
- Series of hoods/housings
- Han A®
- Type of accessory
- Protection cover
- Description of the accessory
- for bulkhead mounted housings | for surface mounted housings | for cable to cable housing | With fixing cord
- Locking type
- Single locking lever
- Size
- 10 A
- Limiting temperature
- -40 ... +125 °C
- Degree of protection acc. to IEC 60529
- IP65
- Type rating acc. to UL 50 / UL 50E
- 4 | 4X | 12
- ECHA SCIP number
- 5dbb3851-b94e-4e88-97a1-571845975242
- Fire protection on railway vehicles
- EN 45545-2 (2020-08) + A1 (2023-10)
- China RoHS
- 50
- RoHS
- compliant with exemption
- REACH SVHC substances
- Yes | Lead
- REACH Annex XVII substances
- Not contained
- REACH ANNEX XIV substances
- Not contained
- Requirement set with Hazard Levels
- R1 (HL 1-3) | R7 (HL 1-3)
- ELV status
- compliant with exemption
- California Proposition 65 substances
- Yes | Lead | Nickel
- RoHS exemptions
- 6(b)-III: Lead as an alloying element in aluminium casting alloys containing up to 0,3 % lead by weight provided it stems from lead-bearing aluminium scrap recycling
- Material (hood/housing)
- Aluminium die-cast
- Surface (hood/housing)
- Powder-coated
- Colour (hood/housing)
- RAL 7037 (dust grey)
- Material (seal)
- NBR
- Approvals
- DNV GL
- European customs tariff number
- 85389099
- Packaging size
- 1
- Net weight
- 56 g
- Country of origin
- Germany
- eCl@ss
- 27440208 Cap for industrial connectors
- ETIM
- EC002314
- UNSPSC 24.0
- 39121467
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 5713140039568
- SAP 1000444702
- Code 8128565
Product Documentation
