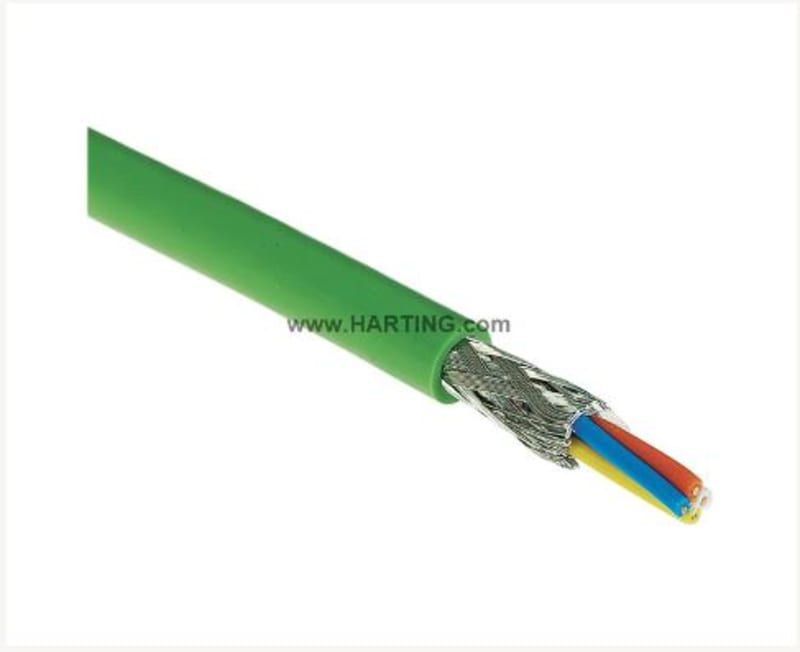

HAR PROFINET Typ C 4XAWG22/7 trail. 50M
Pricing
Request a quote
We reply within 24 hours
Product Description
Harting 9456000141 Manufacturer description: Copper cable (round); Flame retardant, Oil resistant, UV resistant; 4x AWG 22/7; PUR (polyurethane); Cable length: 50 m; Cat. 5 Class D up to 100 MHz. Profinet Cat5 4xAWG 22/7, Outer jacket in PUR, green. 50m ring.
Technical Specifications
- Manufacturer part number (MPN)
- 9456000141 EAN / GTIN: 5713140061880 Sales unit: pcs Category: System cabling Element: Bulk cables Specification: Not assembled Type of cable: Copper cable (round) Description of the cable: Flame retardant | Oil resistant | UV resistant Printing on cable: HARTING INDUSTRIAL ETHERNET TRAILING CABLE CAT 5 PLUS * 22AWG (SHIELDED) c(UL)us E356671 CMX 75°C VERIFIED (UL) CAT 5E PATCH CABLE FRNC or UR AWM 21238 80°C 600V * 09456000101010X “sequential length in meters” * “year/internal order number”-9000068752 HARTING LOGO Number of cores: 4 Core structure: 4x AWG 22/7 Cable length: 50 m Signal run time @ 20 °C: 5.3 ns/m Limiting temperature: -40 ... +70 °C unmoved | -20 ... +60 °C moved minimum bending radius: 7x Cable diameter (repeated bending) | 3x Cable diameter (singular bending) Drag chain compatible: Yes Bending cycles: ≥ 3.000.000 & traversing distance ≤ 0.2 m & speed ≤ 4 m/s & acceleration ≤ 4 m/s² Tensile strength: ≤150 N Transmission characteristics: Cat. 5 Class D up to 100 MHz Data rate: 10 Mbit/s | 100 Mbit/s Coupling attenuation @ 20 °C / 10 MHz: 20 mΩ/m Conductor resistance @ 20 °C: ≤120 Ω/km Insulation resistance @ 20 °C: 500 MΩ x km Impedance @ 100 MHz: 100 Ω ±5 % China RoHS: e RoHS: compliant REACH SVHC substances: Not contained REACH Annex XVII substances: Not contained REACH ANNEX XIV substances: Not contained ELV status: compliant California Proposition 65 substances: Not contained material (cable): PUR (polyurethane) Colour (cable): Green PROFINET: Yes Specifications: EN 13602 | EN 50290-2-23 | F45052-F5100 | IEC 60332-1-2 Flame retardancy | EN 60811-2-1 Oil resistance | UN/ECE-R 118 fire protection for rolling stock European customs tariff number: 85444995 Packaging size: 1 Net weight: 3130 g Country of origin: Germany eCl@ss: 27061801 Data and communication cable (copper) ETIM: EC003249 UNSPSC 24.0: 26121609
Cross References
- EAN 5713140061880
- SAP 1200592777
- Code 82973451
Product Documentation
More from Harting
Harting
Han 6E insert male crimp
09330062602
Harting
Han 10A/15EMV-AK (09200105425)
Harting
Han-Eco 6B Outd-HBM-with SL-with cover
19432060341
Harting
Han 10E insert male crimp
09330102602
Harting
has-port protection cover IP65/67 black
09455020000
Harting
Harting Han-Easy Lock 09000005222 Single Locking Lever Size 6B Dust Grey
Harting
Han E 16 Pos. M Insert Crimp
09330162602
Harting
Han Dummy Module (09140009950)
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
