Harting

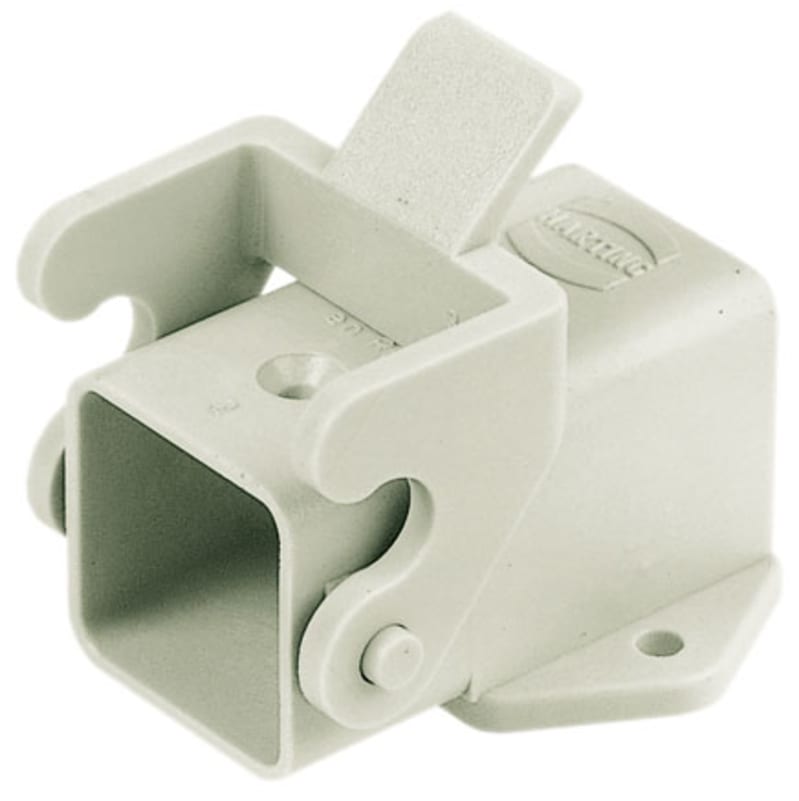

Han 3A-HBMA/P-DL-grey (09200030820)
Part number09200030820EAN / GTIN5713140038707HS code8536.90
Electrical Components
Heavy-Duty Connectors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Harting 09200030820 Manufacturer description: Bulkhead mounted housing; Angled; Size: 3 A; Single locking lever; Polyamide (PA); Material (hood/housing): Polycarbonate (PC); RAL 7032 (pebble grey); Material (seal): NBR. Han A® 3A Chassis cover in grey plastic, angled.
Technical Specifications
- Manufacturer part number (MPN)
- 09200030820
- EAN / GTIN
- 5713140038707
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Category
- Hoods / Housings
- Series of hoods/housings
- Han A®
- Type of hood/housing
- Bulkhead mounted housing
- Description of hood/housing
- Angled
- Locking type
- Single locking lever
- Size
- 3 A
- Field of application
- Standard Hoods/housings for industrial applications
- Pack contents
- Please order seal screw separately.
- Limiting temperature
- -40 ... +125 °C
- Note on the limiting temperature
- For use as a connector according to IEC 61984.
- Tightening torque
- 1 Nm Fixing screws M3
- Degree of protection acc. to IEC 60529
- IP44 | IP65 with seal screw | IP67 with seal screw
- Type rating acc. to UL 50 / UL 50E
- 4 | 4X | 12
- Fire protection on railway vehicles
- EN 45545-2 (2020-08) + A1 (2023-10)
- China RoHS
- e
- RoHS
- compliant
- REACH SVHC substances
- Not contained
- REACH Annex XVII substances
- Not contained
- REACH ANNEX XIV substances
- Not contained
- Requirement set with Hazard Levels
- R22 (HL 1-3) | R23 (HL 1-3)
- ELV status
- compliant
- California Proposition 65 substances
- Not contained
- Material (hood/housing)
- Polycarbonate (PC)
- Colour (hood/housing)
- RAL 7032 (pebble grey)
- Material (seal)
- NBR
- Material (locking)
- Polyamide (PA)
- Colour (locking)
- RAL 7032 (pebble grey)
- Material flammability class acc. to UL 94
- V-0
- Material flammability class acc. to UL 94 (locking levers)
- V-0
- UL / CSA
- UL 1977 ECBT2.E235076 | CSA-C22.2 No. 182.3 ECBT8.E235076
- Approvals
- CE | DNV GL
- European customs tariff number
- 85389099
- Packaging size
- 10
- Net weight
- 10 g
- Country of origin
- Romania
- eCl@ss
- 27440202 Shell for industrial connectors
- ETIM
- EC000437
- UNSPSC 24.0
- 39121466
- Width
- 40 mm
- UV resistant
- No
- Height
- 26.5 mm
- Depth
- 28.8 mm
- Shape
- Rectangular
- With hinged lid
- No
- Housing colour
- Grey
- Type of locking
- Single locking lever
- Number of conduit inlets
- 1
- With cable screw gland
- No
- EMC-version
- No
- Corrosion resistant
- No
- Length
- 40 mm
- Housing material
- Plastic
- Operating temperature
- -40–125 °C
- With distance piece
- No
- With sealing
- Yes
- Type of housing
- Housing extension
- With interlocking device
- Yes
- Degree of protection (IP), mounted
- IP44
- Material adaptor plate
- Plastic
- Position of the shackle
- Base unit
- Mounting method of the cable gland
- None
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 5713140038707
- SAP 1000444541
- Code 8239555
Product Documentation
Document preview: HARTING 09200030820 — Data Sheet (OEM)
