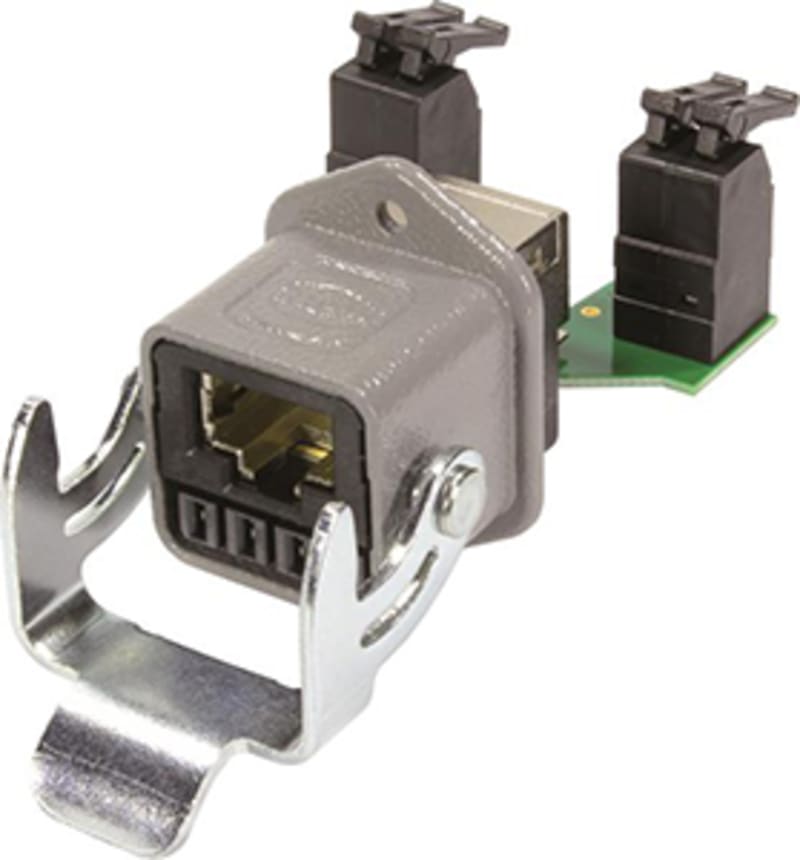

Han 3M RJ45 Hybrid CAT.6A PFT 8+4P
Pricing
Request a quote
We reply within 24 hours
Product Description
Harting 9452151761 Manufacturer description: Connectors; Panel feed through Straight; Contacts: 12; Size: 3 A; Material: Zinc die-cast; Powder-coated. Han® 3A Hybrid Enclosure Plinth complete in metal. Cat. 6 + 4 contacts for 48V. IP65/67.
Technical Specifications
- Manufacturer part number (MPN)
- 9452151761
- EAN / GTIN
- 5713140059740
- Sales unit
- pcs
- Category
- Connectors
- Identification
- Hybrid
- Series of hoods/housings
- Han A®
- Element
- Panel feed through
- Specification
- Straight
- Series
- RJ45
- Features
- Suitable for all PoE versions
- Size
- 3 A
- Shielding
- Fully shielded, 360° shielding contact
- Number of contacts
- 12
- Number of power contacts
- 4
- Number of data contacts
- 8
- Conductor cross-section (mm²)
- 1.5 mm² Power
- Conductor cross-section (AWG)
- AWG 12 Power
- Rated voltage (data)
- 50 V AC | 60 V DC
- Rated voltage (power)
- 48 V DC
- Rated current (power)
- 16 A
- Rated current (data)
- 1.76 A
- Limiting temperature
- -40 ... +70 °C
- Mating cycles
- 500
- Transmission characteristics
- Cat. 6A Class EA up to 500 MHz
- Data rate
- 10 Mbit/s | 100 Mbit/s | 1 Gbit/s | 2.5 Gbit/s | 5 Gbit/s
- China RoHS
- e
- RoHS
- compliant
- REACH SVHC substances
- Not contained
- REACH Annex XVII substances
- Not contained
- REACH ANNEX XIV substances
- Not contained
- ELV status
- compliant
- California Proposition 65 substances
- Yes | Lead | Nickel
- Material (hood/housing)
- Zinc die-cast
- Surface (hood/housing)
- Powder-coated
- Colour (hood/housing)
- Black
- UL / CSA
- UL 1977 ECBT2.E102079 | CSA-C22.2 No. 182.3 ECBT8.E102079
- PROFINET
- Yes
- Approvals
- DNV GL
- European customs tariff number
- 85366990
- Packaging size
- 1
- Net weight
- 78 g
- Country of origin
- Germany
- eCl@ss
- 27440113 Rectangular connectors (set)
- ETIM
- EC002636
- UNSPSC 24.0
- 39121408
- Contact type
- Ethernet
- Width
- 35.3 mm
- Height
- 40.3 mm
- Depth
- 38.5 mm
- Number of poles
- 8
- Rated current In
- 16 A
- Pollution degree
- 2
- Type of electric connection
- Insulation displacement connection
- Material of contact surface
- Gold
- Material contact
- Copper
- Material insulation body
- Polycarbonate (PC)
- Housing material
- Aluminium
- Coating housing
- Powder coating
- Type of locking
- Single locking lever
- With protective conductor
- No
- Degree of protection (IP), mounted
- IP65/IP67
- EMC-version
- Yes
- Number of conduit inlets
- 1
- Position cable feed
- Two-sided
Standards & Compliance
- HS Code
- 8536.70
Cross References
- EAN 5713140059740
- SAP 1200592784
- Code 82972968
Product Documentation
More from Harting
Harting
Han 3A Hood Top Entry 2 Pegs M20
19200030420
Harting
Han 16B-HBM single lever
09300160307
Harting
Han 10A-STI-S (09200102612)
Harting
Han A Hood Side Entry LC 2 Pegs M20 (19200101540)
Harting
Han-Eco 10B-HBM-FOR DL-with cover
19430100322
Harting
Han CGM-P M32X1,5 D.13-20MM grey
19000005194
Harting
Han CGM-M M32X1,5 D.18-25MM
19000005096
Harting
Han 3A-HBMA-L (09200030801)
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
