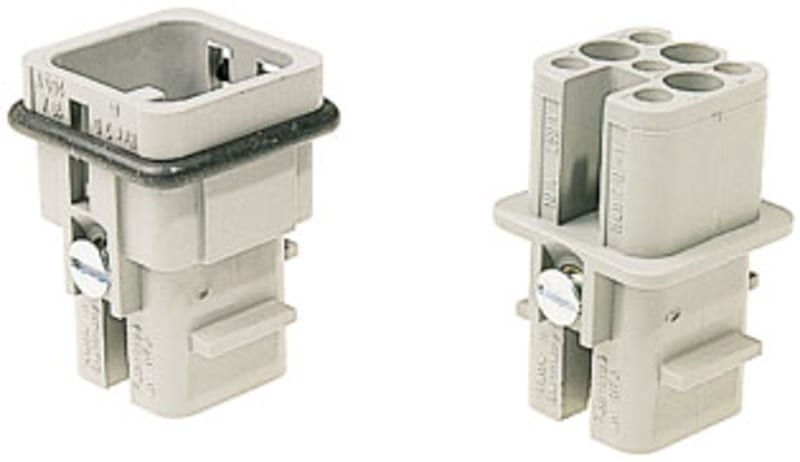

Han D 7 Pos. F Insert Crimp

Harting 09210073131 Manufacturer description: Inserts; Crimp termination; Female; Polyamide (PA); RAL 7032 (pebble grey); Rated current: 10 A; Size: 3 A; Contacts: 7; Conductor cross-section: 0.14. 2.5 mm². Han® D Plinth 7+earth for crimp, 10A 250V, bare for plastic covers.

Manufacturer part number (MPN)

09210073131

EAN / GTIN

5713140040458

Sales unit

pcs

Package quantity

10 pcs

Category

Inserts

Series

Han D®

Termination method

Crimp termination

Gender

Female

Size

3 A

Number of contacts

7

PE contact

Yes

Details

Please order crimp contacts separately. | Only for thermoplastic hoods / housings

Conductor cross-section (mm²)

0.14 ... 2.5 mm²

Rated voltage acc. to CSA

600 V

Rated current

10 A

Rated voltage

250 V

Rated impulse voltage

4 kV

Pollution degree

3

Rated voltage acc. to UL

600 V

Insulation resistance

>10¹⁰ Ω

Limiting temperature

-40 ... +125 °C

Recommended screw driver

Slotted 0.6 x 3.5 | PH1

Mating cycles

500

ECHA SCIP number

5dbb3851-b94e-4e88-97a1-571845975242

Fire protection on railway vehicles

EN 45545-2 (2020-08) + A1 (2023-10)

China RoHS

50

RoHS

compliant with exemption

REACH SVHC substances

Yes | Lead

REACH Annex XVII substances

Not contained

REACH ANNEX XIV substances

Not contained

Requirement set with Hazard Levels

R22 (HL 1-3) | R23 (HL 1-3)

ELV status

compliant with exemption

California Proposition 65 substances

Yes | Lead | Nickel

RoHS exemptions

6(c): Copper alloy containing up to 4 % lead by weight

Material (insert)

Polyamide (PA)

Colour (insert)

RAL 7032 (pebble grey)

Material flammability class acc. to UL 94

HB

UL / CSA

UL 1977 ECBT2.E235076 | CSA-C22.2 No. 182.3 ECBT8.E235076

Approvals

DNV GL

Specifications

IEC 60664-1 | IEC 61984 | EN 175301-801

European customs tariff number

85366990

Packaging size

10

Net weight

8.1 g

Country of origin

Romania

eCl@ss

27440205 Contact insert for industrial connectors

ETIM

EC000438

UNSPSC 24.0

39121522

Width

21 mm

Height

21 mm

Depth

33.5 mm

Shape

Rectangular

With wire protection

No

With housing

No

Number of poles

7

Contact type

Bus

Ambient temperature

-40–125 °C

Operating temperature

-40–125 °C

Rated surge voltage

4 kV

Type of electric connection

Crimp connection

Overvoltage category

III

Diameter plug-in contact

1.6 mm

Contact insert without contacts

No

Connectable conductor cross section solid-core

0.14–2.5 mm²

Connectable conductor cross section multi-wired

0.14–2.5 mm²

With protective conductor

Yes

Material connector insert

Thermoplastic

Rated current In

10 A

Material of contact insert

Thermoplastic

Min. number of insertion cycles

500

Number of power contacts

7

HS Code

8536.90
