Han 16ES Press - M (09330162648)
Part number09330162648EAN / GTIN5713140572089HS code8536.70
Electrical Components
Heavy-Duty Connectors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

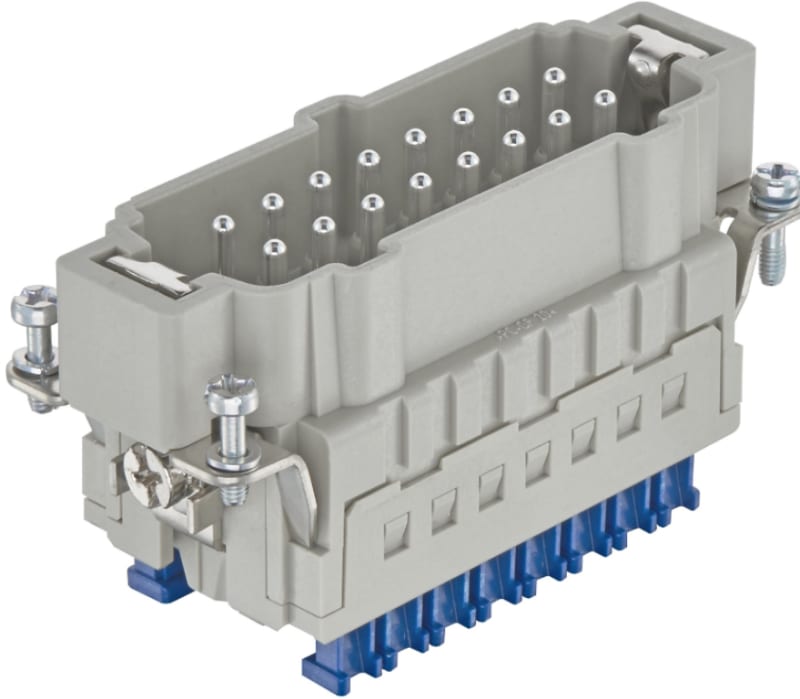

Harting 09330162648 Manufacturer description: Inserts; Cage-clamp termination; Male; Polycarbonate (PC); RAL 7032 (pebble grey); Rated current: 16 A; Size: 16 B; Contacts: 16; Conductor cross-section: 0.14. 2.5 mm²; Copper alloy; Silver plated. Han 16ES Press - M.
Technical Specifications
- Manufacturer part number (MPN)
- 09330162648
- EAN / GTIN
- 5713140572089
- Sales unit
- pcs
- Category
- Inserts
- Series
- Han® ES Press
- Termination method
- Cage-clamp termination
- Gender
- Male
- Size
- 16 B
- With wire protection
- No
- Number of contacts
- 16
- PE contact
- Yes
- Details
- Blue slide | for hoods/housings high construction only
- Conductor cross-section (mm²)
- 0.14 ... 2.5 mm²
- Conductor cross-section (AWG)
- AWG 26 ... AWG 14
- Rated voltage acc. to CSA
- 600 V
- Rated current
- 16 A
- Rated voltage
- 500 V
- Rated impulse voltage
- 6 kV
- Pollution degree
- 3
- Rated voltage acc. to UL
- 600 V
- Insulation resistance
- >10¹⁰ Ω
- Contact resistance
- 3 mΩ
- Limiting temperature
- -40 ... +125 °C
- Stripping length
- 9 ... 11 mm
- Tightening torque
- 1.2 Nm PE screw M4
- Recommended screw driver
- Slotted 0.8 x 4.5 | PH2
- Mating cycles
- 500
- Fire protection on railway vehicles
- EN 45545-2 (2020-08) + A1 (2023-10)
- China RoHS
- e
- RoHS
- compliant
- REACH SVHC substances
- Yes | Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
- REACH Annex XVII substances
- Not contained
- REACH ANNEX XIV substances
- Not contained
- Requirement set with Hazard Levels
- R22 (HL 1-3) | R23 (HL 1-3)
- ELV status
- compliant
- California Proposition 65 substances
- Yes | Lead | Nickel
- Material (insert)
- Polycarbonate (PC)
- Colour (insert)
- RAL 7032 (pebble grey)
- Material (contacts)
- Copper alloy
- Surface (contacts)
- Silver plated
- Colour (accessories)
- Blue
- Material flammability class acc. to UL 94
- V-0
- UL / CSA
- UL 1977 ECBT2.E235076 | CSA-C22.2 No. 182.3 PVVA8.E318390
- Approvals
- DNV GL
- Specifications
- IEC 60664-1 | IEC 61984
- European customs tariff number
- 85366990
- Packaging size
- 1
- Net weight
- 110 g
- Country of origin
- Germany
- eCl@ss
- 27440205 Contact insert for industrial connectors
- UNSPSC 24.0
- 39121522
- Shape
- Rectangular
- Suitable for distribution board
- No
- Number of poles
- 16
- Contact type
- Pin
- Ambient temperature
- -40–125 °C
- Operating temperature
- -40–125 °C
- Rated surge voltage
- 6 kV
- Type of electric connection
- Spring clamp connection
- Material of contact surface
- Silver
- Contact insert without contacts
- No
- Connectable conductor cross section multi-wired
- 0.14–2.5 mm²
- With protective conductor
- Yes
- Material contact
- Other copper alloys
- Material connector insert
- Thermoplastic
- Rated current In
- 16 A
- Material of contact insert
- Thermoplastic
- Min. number of insertion cycles
- 500
- Number of power contacts
- 16
Standards & Compliance
- HS Code
- 8536.70
Cross References
- EAN 5713140572089
- SAP 1000744059
- Code 8424651
Product Documentation
