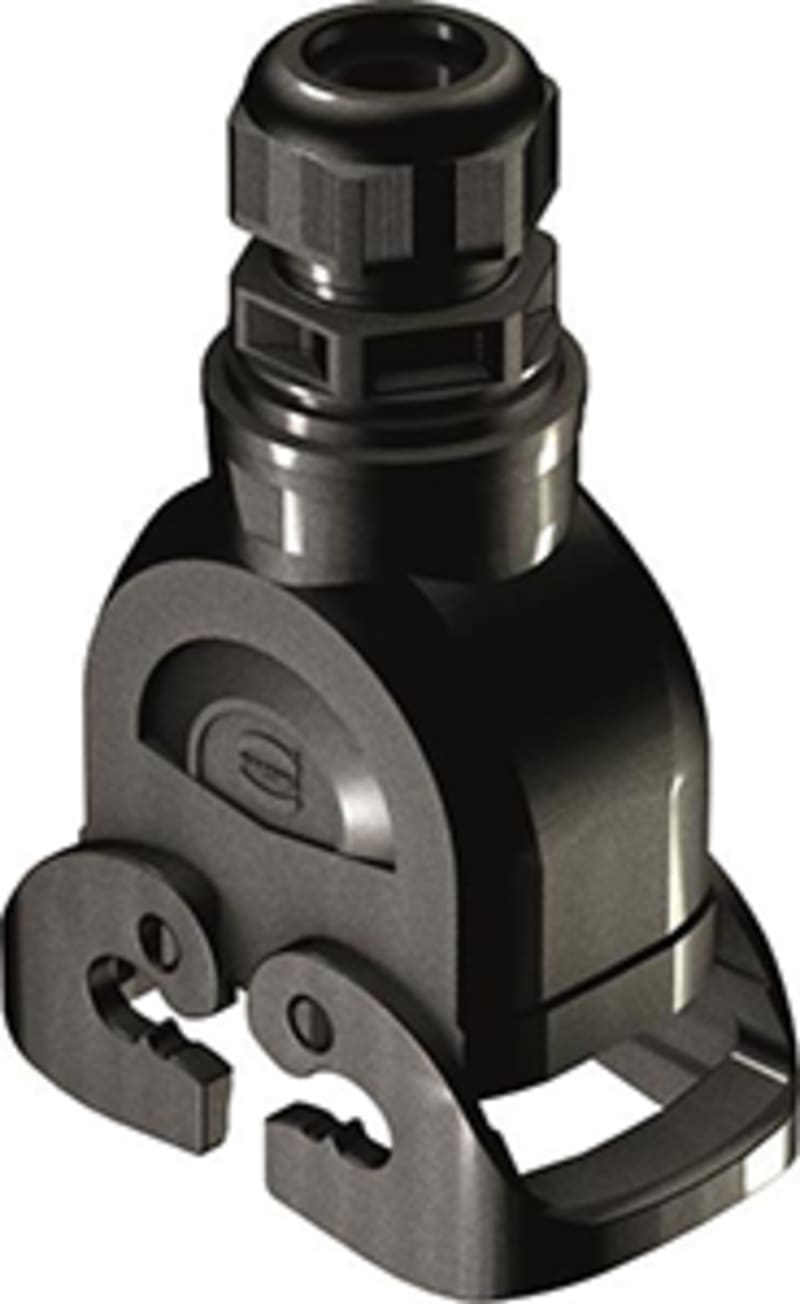

Han-Eco 10B-HTE-WITH DL-M32-GLANDED
Pricing
Request a quote
We reply within 24 hours
Product Description
Harting 19431100437 Manufacturer description: Hood; With integrated cable gland; Size: 10 B; Double locking lever (on the hood); Polyamide (PA), Fibre-glass reinforced; Top entry; 1x M32; Material (hood/housing): Polyamide (PA), Fibre-glass reinforced; RAL 9005 (jet black). Han-Eco 10B cable cover with clips, M32.
Technical Specifications
- Manufacturer part number (MPN)
- 19431100437
- EAN / GTIN
- 5713140177932
- HS code
- 8544.42
- Sales unit
- pcs
- Category
- Hoods / Housings
- Series of hoods/housings
- Han-Eco® B
- Type of hood/housing
- Hood
- Description of hood/housing
- With integrated cable gland
- Locking type
- Double locking lever (on the hood)
- Size
- 10 B
- Version
- Top entry
- Number of cable entries
- 1
- Cable entry
- 1x M32
- Field of application
- Hoods/housings for industrial applications | Hoods/housings for outdoor applications
- Limiting temperature
- -40 ... +125 °C
- Note on the limiting temperature
- For use as a connector according to IEC 61984.
- Number of relockings
- 500
- Degree of protection acc. to IEC 60529
- IP66
- Clamping range
- 13 ... 21 mm
- Fire protection on railway vehicles
- EN 45545-2 (2020-08) + A1 (2023-10)
- China RoHS
- 50
- RoHS
- compliant with exemption
- REACH SVHC substances
- Yes | Lead
- REACH Annex XVII substances
- Not contained
- REACH ANNEX XIV substances
- Not contained
- Requirement set with Hazard Levels
- R22 (HL 1-2) | R23 (HL 1-3)
- ELV status
- compliant with exemption
- California Proposition 65 substances
- Yes | Lead
- RoHS exemptions
- 6(c): Copper alloy containing up to 4 % lead by weight
- Material (hood/housing)
- Polyamide (PA) | Fibre-glass reinforced
- Colour (hood/housing)
- RAL 9005 (jet black)
- Material (locking)
- Polyamide (PA) | Fibre-glass reinforced
- Colour (locking)
- RAL 9005 (jet black)
- Material flammability class acc. to UL 94
- V-0
- Material flammability class acc. to UL 94 (locking levers)
- V-0
- Approvals
- CE
- Specifications
- IEC 61984 | EN 45545-2 Fire protection on railway vehicles
- European customs tariff number
- 85389099
- Packaging size
- 1
- Net weight
- 130 g
- Country of origin
- Germany
- eCl@ss
- 27440202 Shell for industrial connectors
- ETIM
- EC000437
- UNSPSC 24.0
- 39121466
